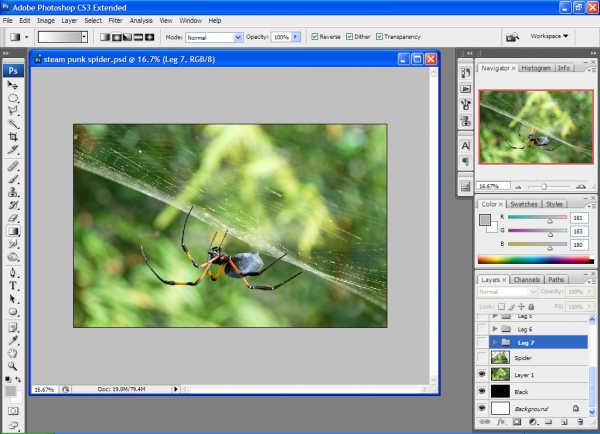

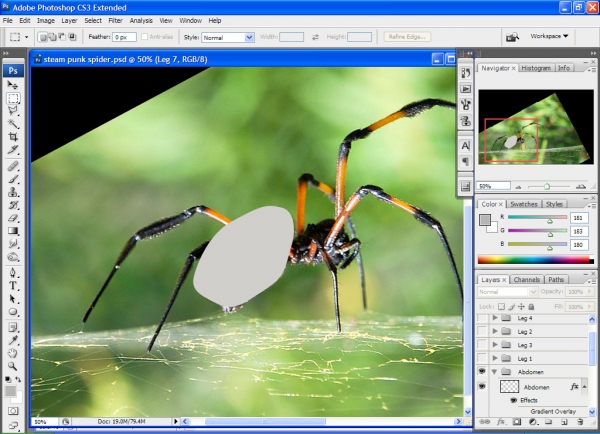

Opened up the spider reference in photoshop... Yes photoshop... Entire work is done in photoshop and a lil illustrator... No 3D software used...

Creation of Brass Gear Spider: Step 1

step 2 of 32

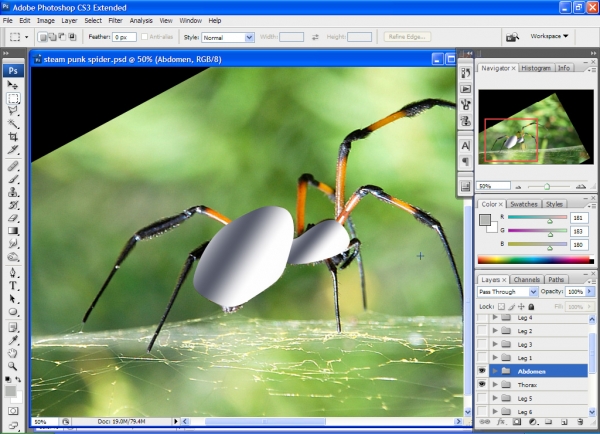

Now enlarged the pic and rotated it to get a good angle...

Creation of Brass Gear Spider: Step 2

step 3 of 32

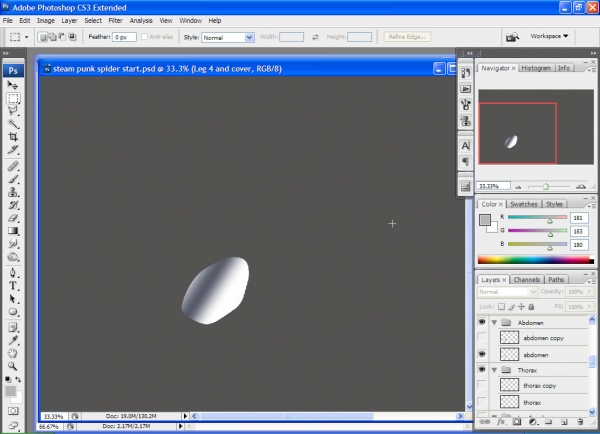

Now with the pen tool made the abdomen filled with 20 to 30% gray... Color actually doesn't matter here...

Creation of Brass Gear Spider: Step 3

step 4 of 32

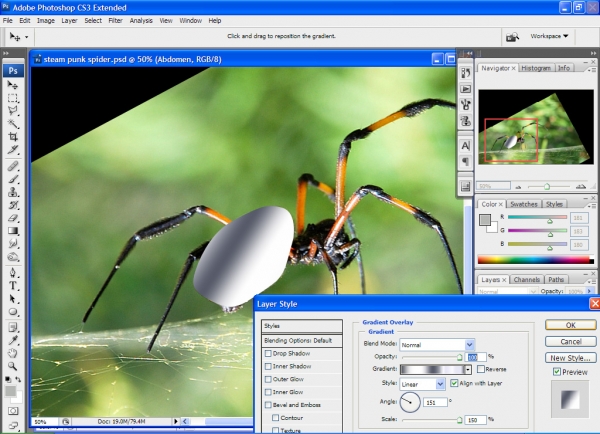

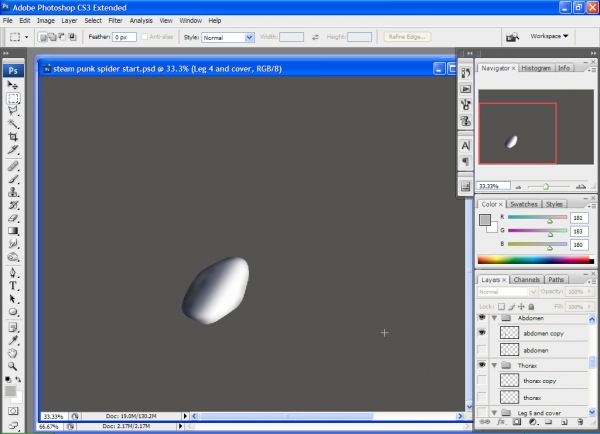

Then gave a layer effect of gradient overlay with a custom gradient...

Creation of Brass Gear Spider: Step 4

step 5 of 32

Made the thorax in the same way...

Creation of Brass Gear Spider: Step 5

step 6 of 32

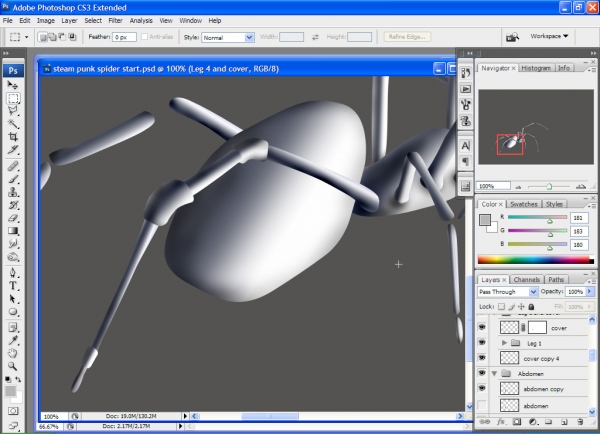

Made the leg segment in the same way... I didn't join the leg yet... Also for each part, I used different setting for the gradient overlay such as spread, angle and position...

Creation of Brass Gear Spider: Step 6

step 7 of 32

Now the base object is finished... Hmmm looks a little 3D doesn't it... :)

Creation of Brass Gear Spider: Step 7

step 8 of 32

Now I merged the effect into the layer, otherwise the burn won't show up and I didn't wanted to use opacity...

Creation of Brass Gear Spider: Step 8

step 9 of 32

Now I started burning it...

Creation of Brass Gear Spider: Step 9

step 10 of 32

Now I started adding joints for the spider and burned it as well...

Started to burn other parts as well...

Creation of Brass Gear Spider: Step 10

step 11 of 32

Okay the joints and burns are done for now...

Creation of Brass Gear Spider: Step 11

step 12 of 32

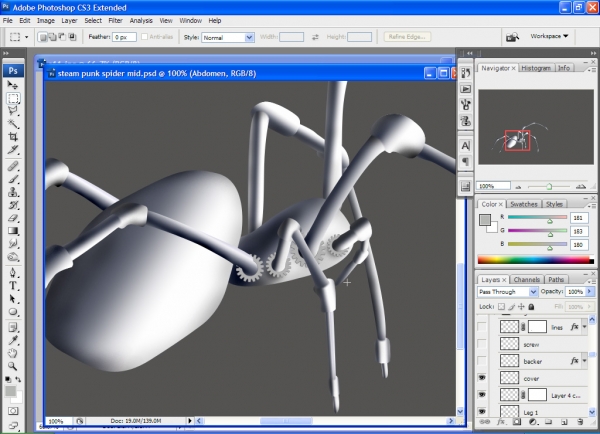

Now I added gear for the legs joining the thorax...

Creation of Brass Gear Spider: Step 12

step 13 of 32

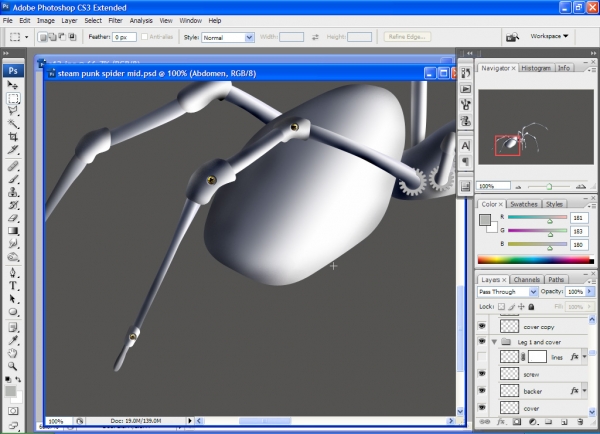

Added screw and beveling beneath it to show depth...

Also burned the screw...

Creation of Brass Gear Spider: Step 13

step 14 of 32

Screw all done...

Creation of Brass Gear Spider: Step 14

step 15 of 32

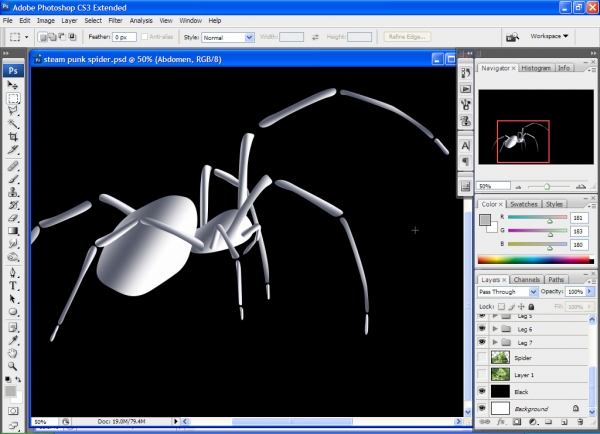

Now with the pen tool drew some line like this...

Creation of Brass Gear Spider: Step 15

step 16 of 32

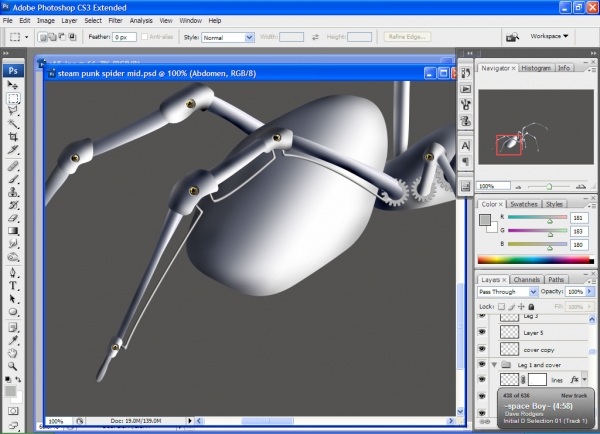

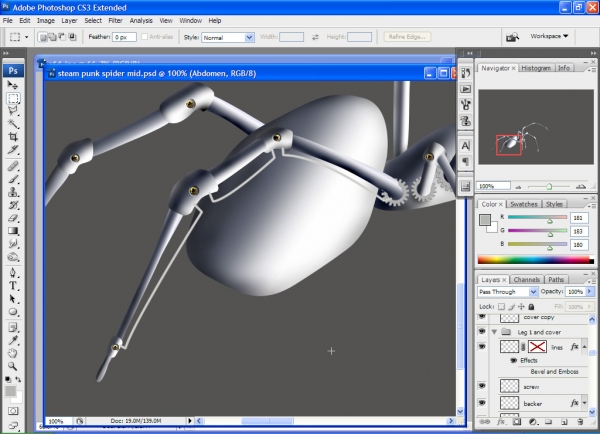

Beveling and masking some part of it...

Creation of Brass Gear Spider: Step 16

step 17 of 32

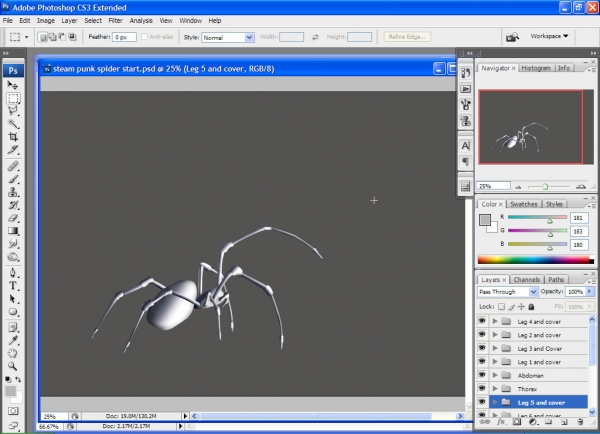

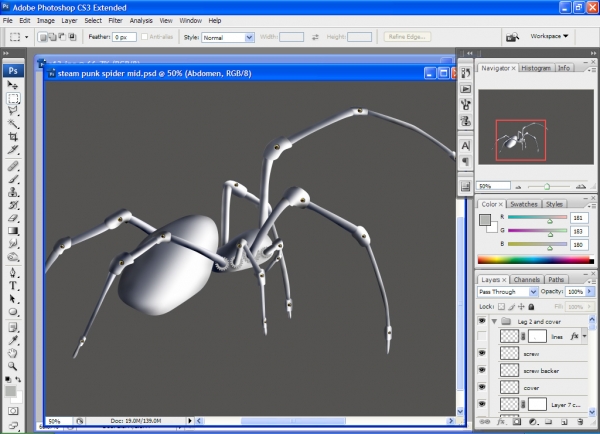

Doing the same for the rest of the legs...

Creation of Brass Gear Spider: Step 17

step 18 of 32

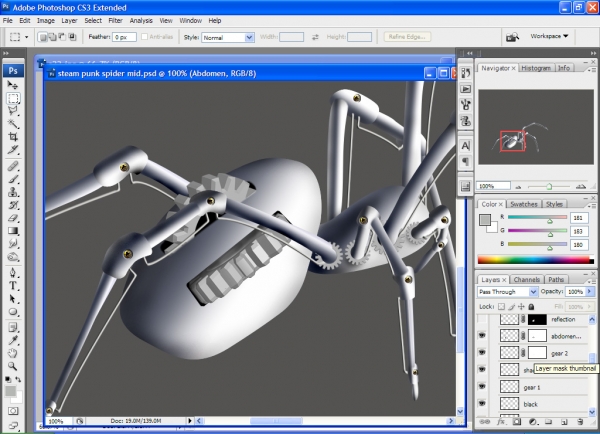

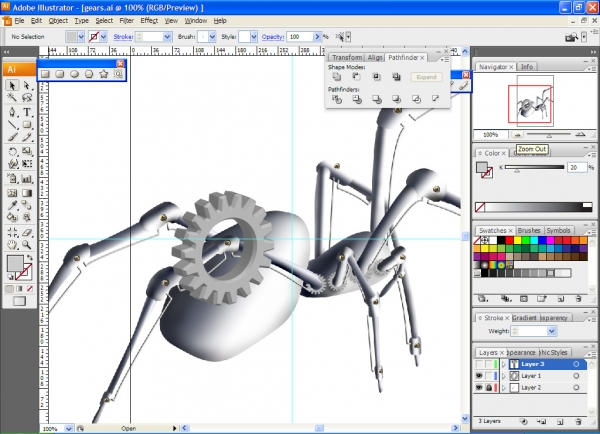

Now I imported the spider render into illustrator and made gear using circle and star shape and using 3D bevel effect...

Also using the spider as guide re-sized the size, changed the angle and position... So that I won't need to skew or perspective in photoshop...

Creation of Brass Gear Spider: Step 18

step 19 of 32

Imported the gear into photoshop... See it matches fine with the position... Might be little off, but better than skewing...

Creation of Brass Gear Spider: Step 19

step 20 of 32

Masking the gear...

Creation of Brass Gear Spider: Step 20

step 21 of 32

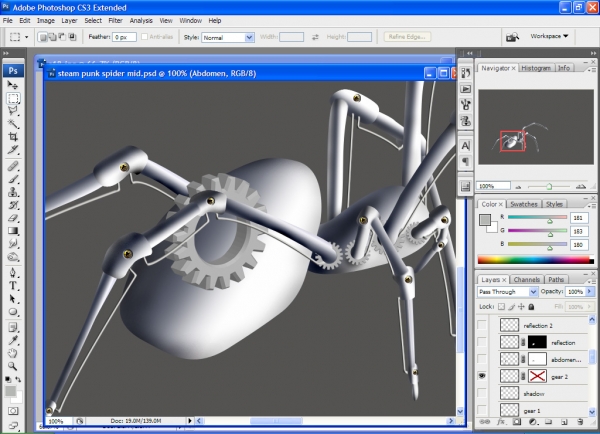

Adding an another gear by using the previous method...

Creation of Brass Gear Spider: Step 21

step 22 of 32

Now adding a black strip beneath the gears and masking so as to show the gears are half way inside...

Creation of Brass Gear Spider: Step 22

step 23 of 32

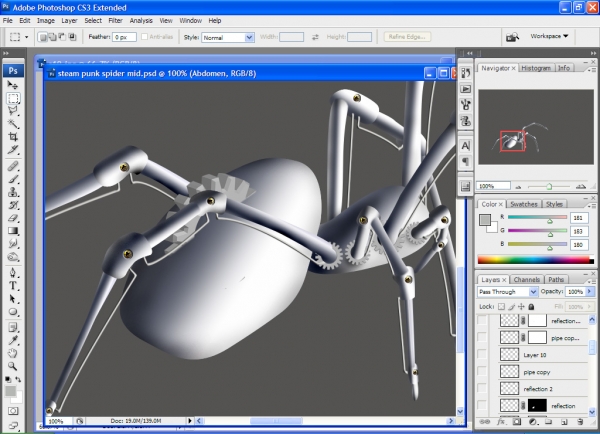

Adding reflection of the gear and one of the leg...

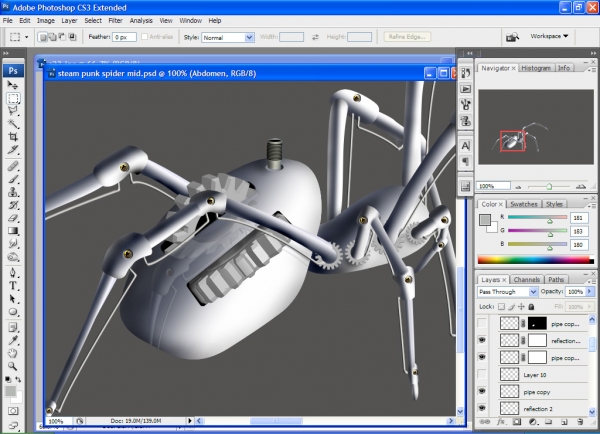

Also adding the pipe...

Creation of Brass Gear Spider: Step 23

step 24 of 32

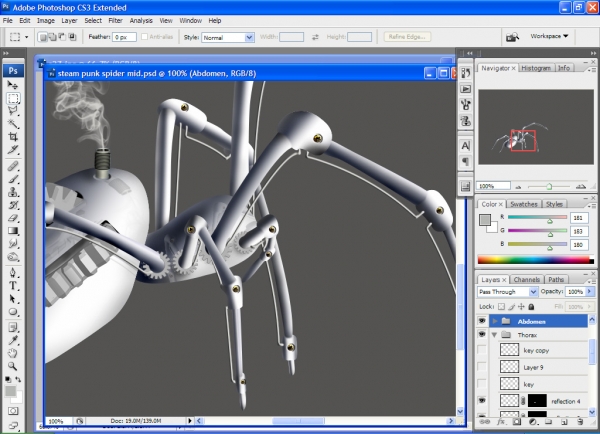

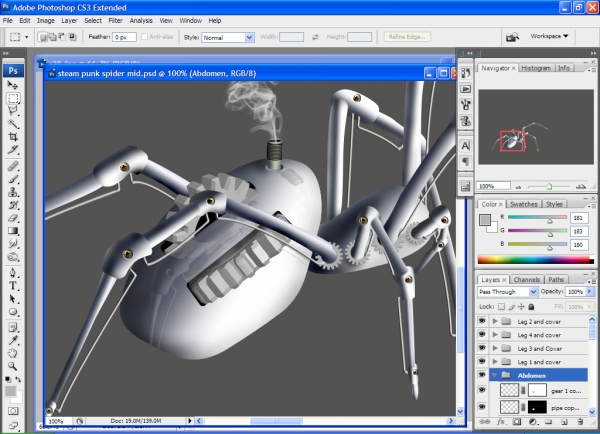

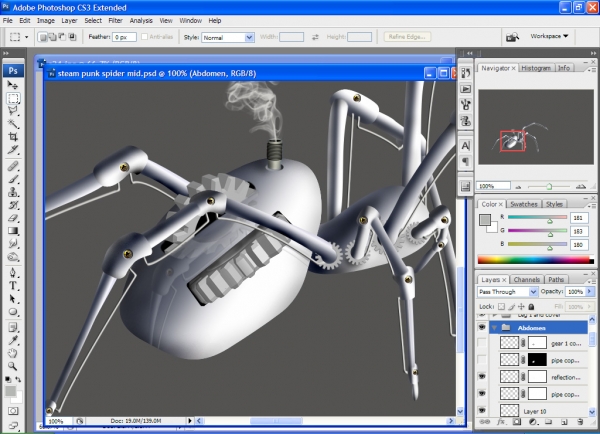

Now added a small smoke...

Creation of Brass Gear Spider: Step 24

step 25 of 32

Added some more reflection...

Creation of Brass Gear Spider: Step 25

step 26 of 32

Now added reflection for the gear at the base of the legs...

Creation of Brass Gear Spider: Step 26

step 27 of 32

Added more reflection...

Creation of Brass Gear Spider: Step 27

step 28 of 32

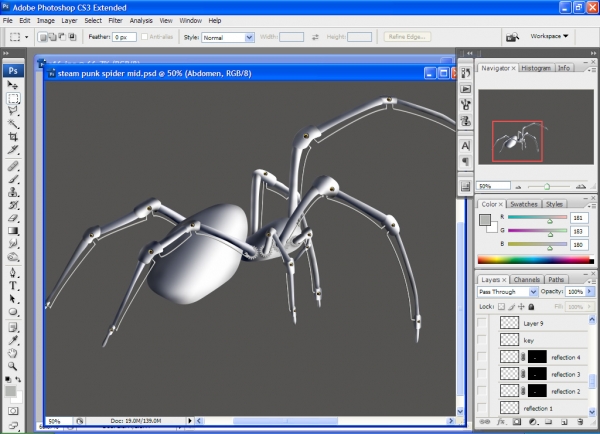

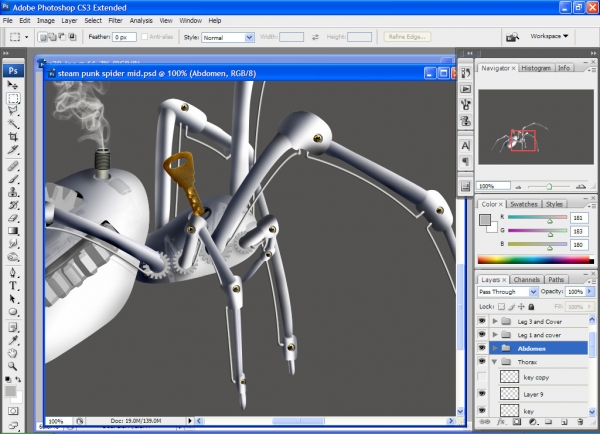

Added a key...

Creation of Brass Gear Spider: Step 28

step 29 of 32

Burning the key a little and added a key hole...

Creation of Brass Gear Spider: Step 29

step 30 of 32

Added a key reflection...

Creation of Brass Gear Spider: Step 30

step 31 of 32

Now added a full body reflection on the floor...

Creation of Brass Gear Spider: Step 31

step 32 of 32

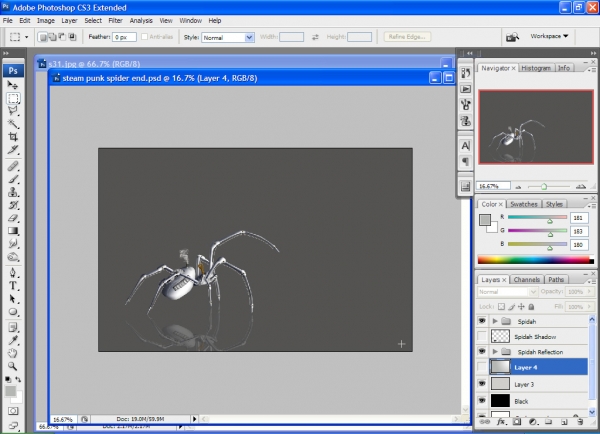

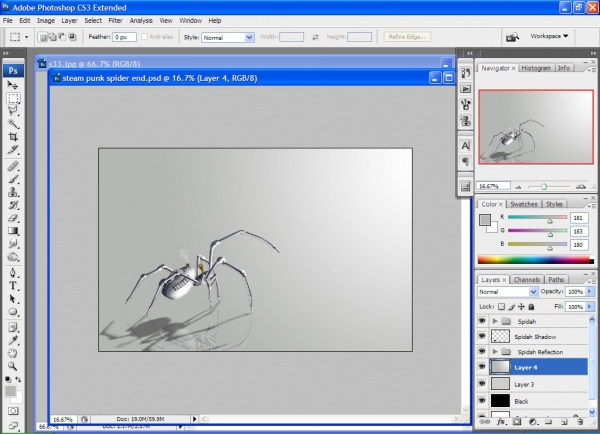

Added a shadow of the full body... Also added a 20% grey to white gradient for the background...

Creation of Brass Gear Spider: Step 32

Final result

Creation of Brass Gear Spider: Final Result
