A Work in Progress: Meccano Helicopter



This guide was made for entry:
Meccano Helicopter
In Contest:
toys


step 1 of 10

I textured all the steel parts of my helicopter (except nuts and screws) with http://www.cgtextures.com/texview.php?id=7815&PHPSESSID=b54abfc8f41984dafa5b9cab2ac76ece

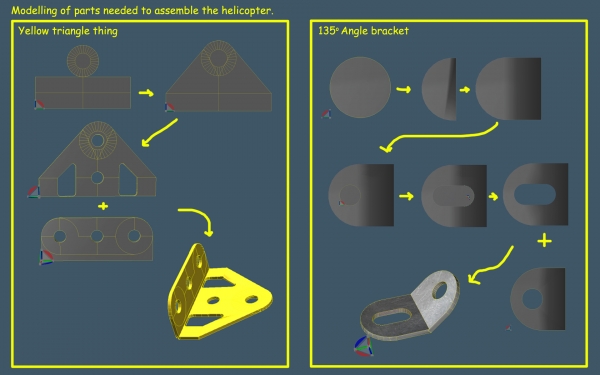

Creation of Meccano Helicopter: Step 1

step 2 of 10

Creation of Meccano Helicopter: Step 2

step 3 of 10

The wheel uses the same texture mentioned in part 1 but with colour adjustments.

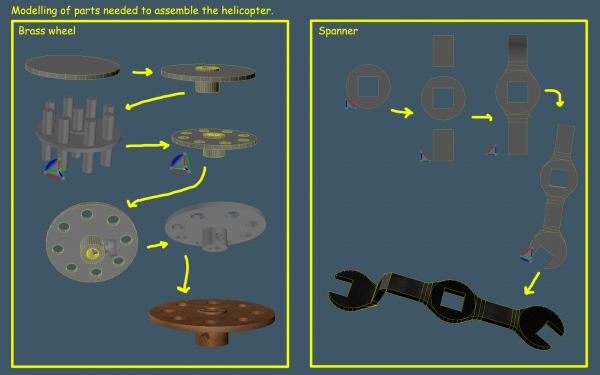

Creation of Meccano Helicopter: Step 3

step 4 of 10

The plastic clip uses this texture (cropped centre portion of image 1).
http://www.cgtextures.com/texview.php?id=27113&PHPSESSID=b54abfc8f41984dafa5b9cab2ac76ece

Creation of Meccano Helicopter: Step 4

step 5 of 10

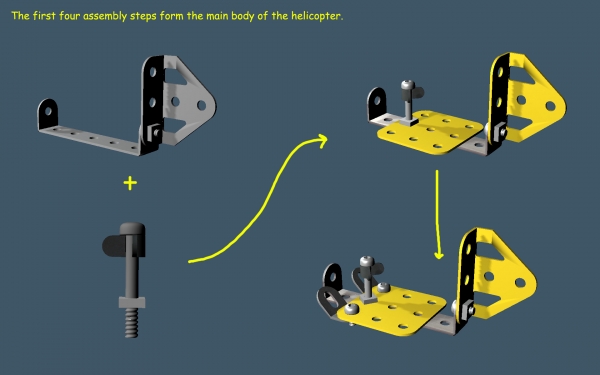

Creation of Meccano Helicopter: Step 5

step 6 of 10

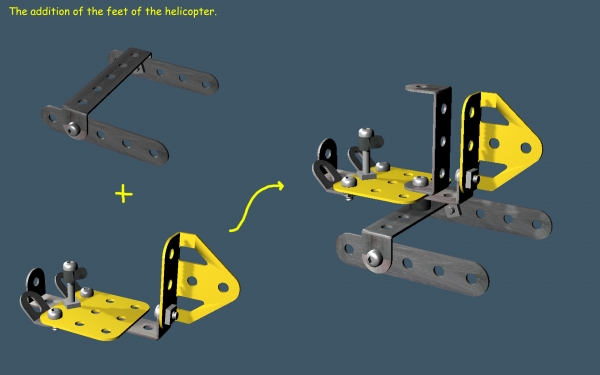

Creation of Meccano Helicopter: Step 6

step 7 of 10

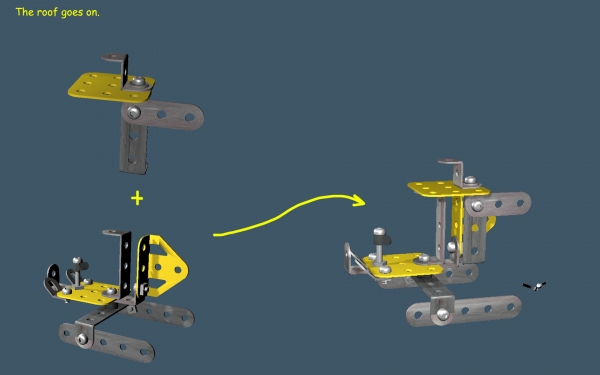

Creation of Meccano Helicopter: Step 7

step 8 of 10

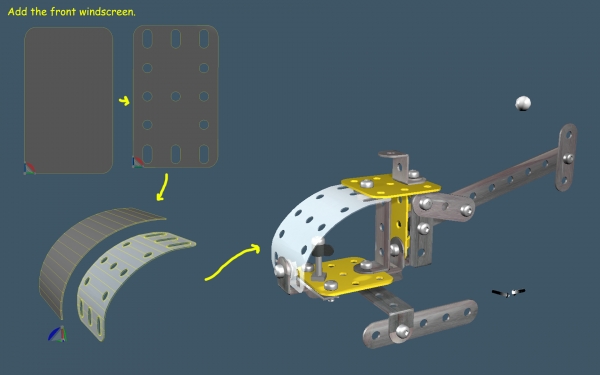

I decided that the window was easier to make flat first, then manually shift the mesh vertices to match a shelled quarter cylinder.

Creation of Meccano Helicopter: Step 8

step 9 of 10

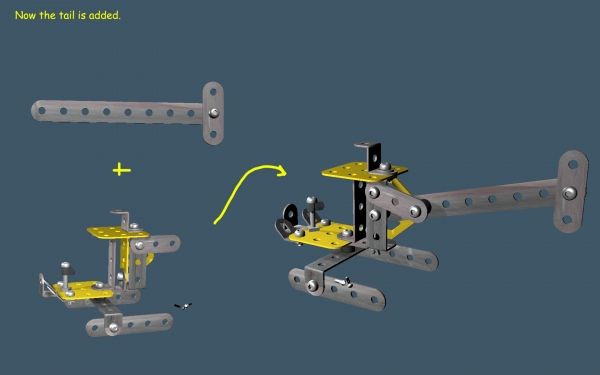

Creation of Meccano Helicopter: Step 9

step 10 of 10

For the table I used this texture:
http://www.cgtextures.com/texview.php?id=14285&PHPSESSID=b54abfc8f41984dafa5b9cab2ac76ece
For the wall I used this texture:
http://www.cgtextures.com/texview.php?id=18851&PHPSESSID=b54abfc8f41984dafa5b9cab2ac76ece

Creation of Meccano Helicopter: Step 10

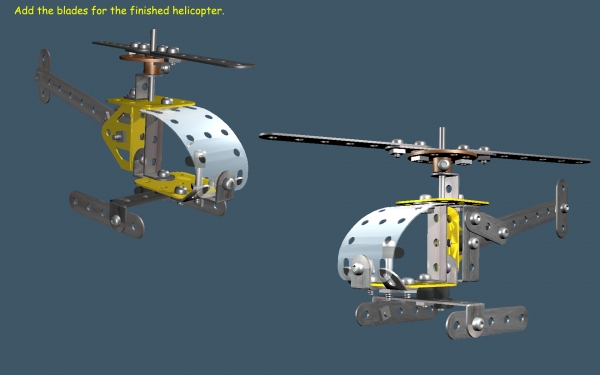

Final result

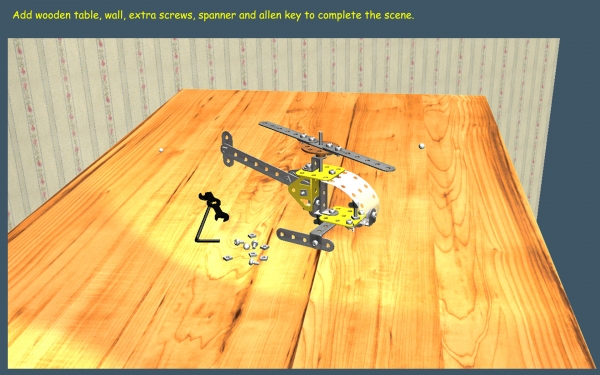

Creation of Meccano Helicopter: Final Result
