A Work in Progress: Anemone



This guide was made for entry:
Anemone
In Contest:
crystal


step 1 of 19

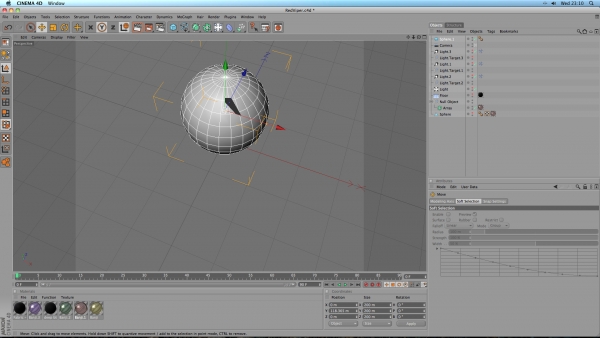

I started off with a sphere primitive

Creation of Anemone: Step 1

step 2 of 19

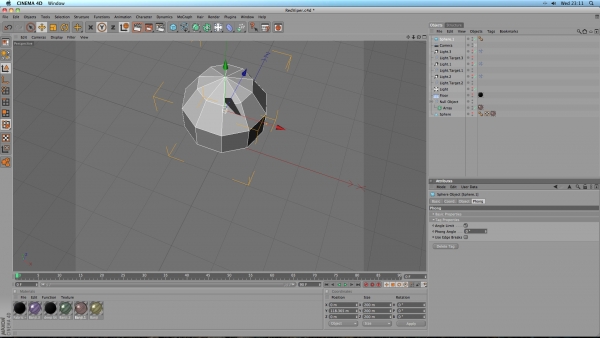

I reduced the segments from 36 to 10

Creation of Anemone: Step 2

step 3 of 19

Then changed the Phong angle from 80 deg to zero

Creation of Anemone: Step 3

step 4 of 19

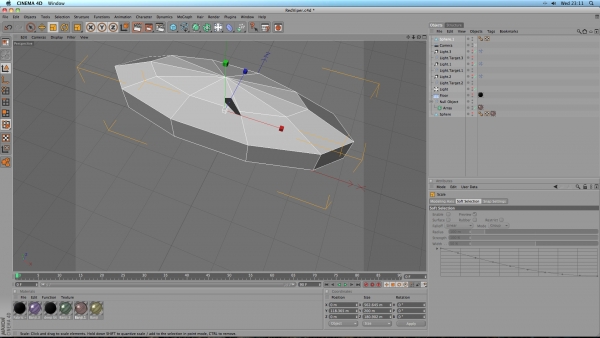

I made my object editable and stretched using the scale tool

Creation of Anemone: Step 4

step 5 of 19

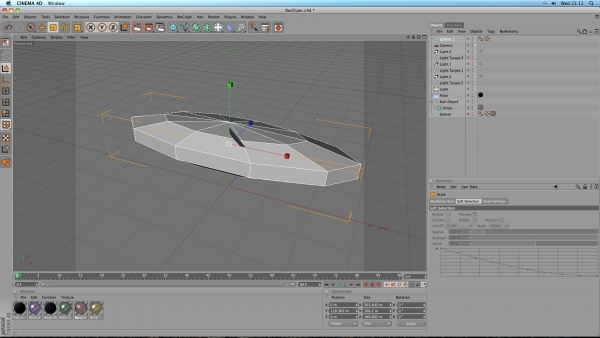

and flattened

Creation of Anemone: Step 5

step 6 of 19

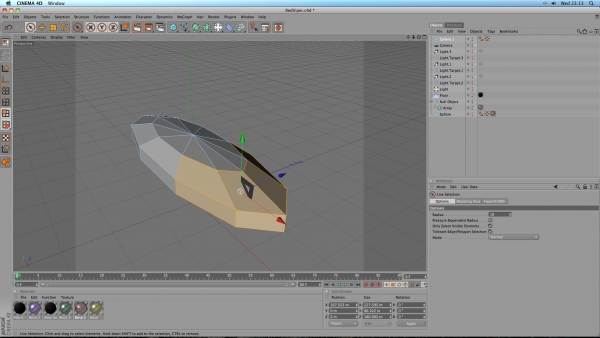

I selected some faces and using the scale tool again contracted

Creation of Anemone: Step 6

step 7 of 19

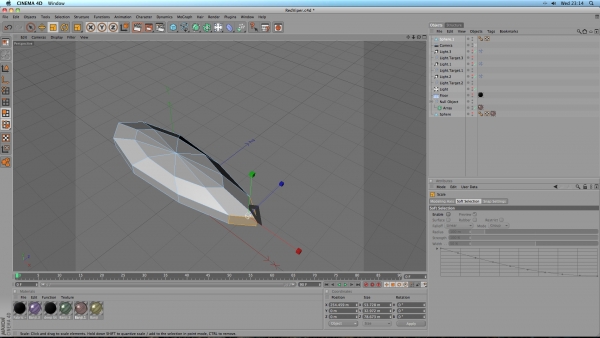

and again, my aim was to get a leaf shape.

Creation of Anemone: Step 7

step 8 of 19

I selected a Banji material and changed some properties, then assigned to my object

Creation of Anemone: Step 8

step 9 of 19

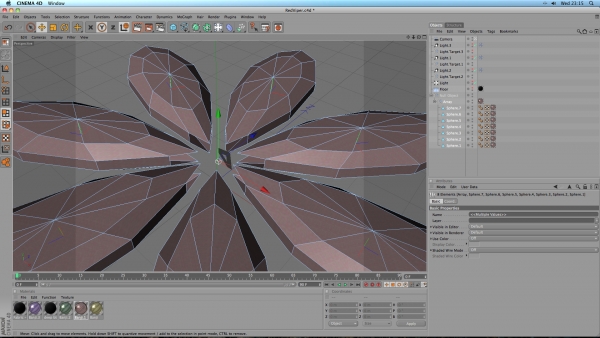

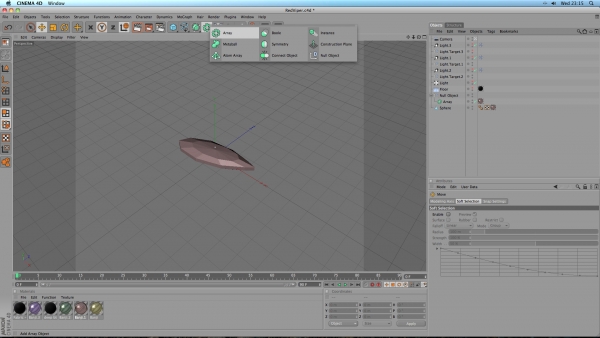

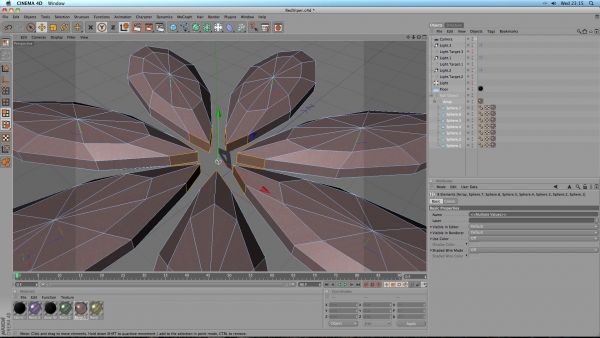

Next I chose an array to place my object in and made six copies in a circular formation.
I selected some faces

Creation of Anemone: Step 9

step 10 of 19

then deleted

Creation of Anemone: Step 10

step 11 of 19

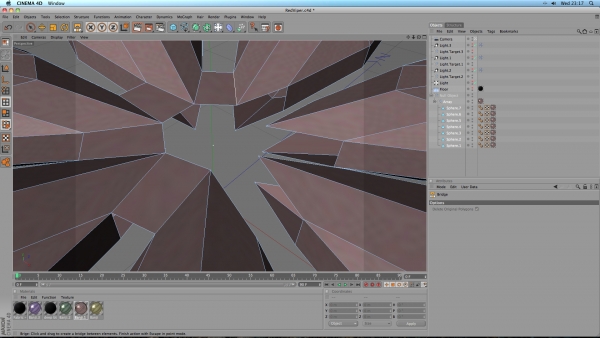

I use the bridge tool to close the gaps

Creation of Anemone: Step 11

step 12 of 19

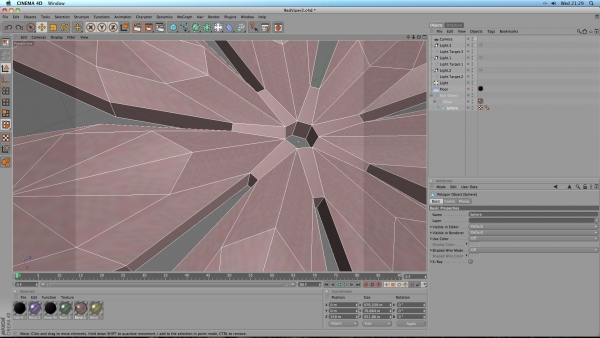

next I want to seal the hole

Creation of Anemone: Step 12

step 13 of 19

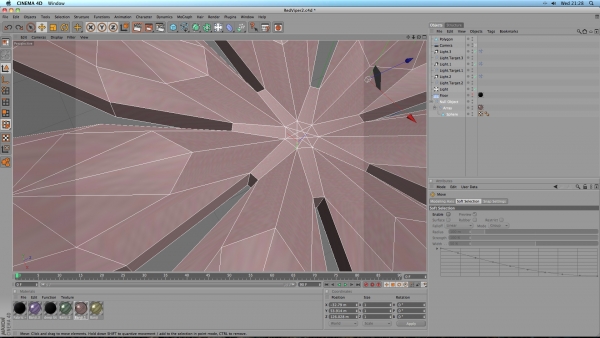

the create polygon tool is used to go from point to point

Creation of Anemone: Step 13

step 14 of 19

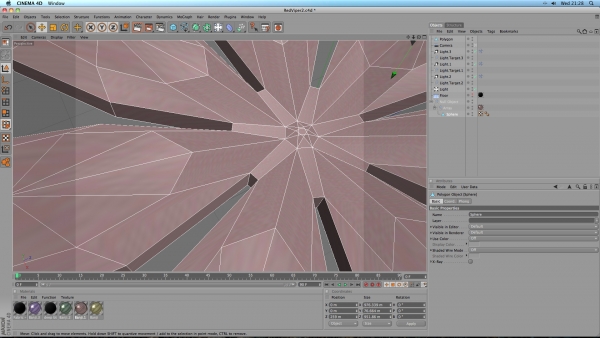

I use the knife tool to create some more geometry

Creation of Anemone: Step 14

step 15 of 19

I select the faces and extrude

Creation of Anemone: Step 15

step 16 of 19

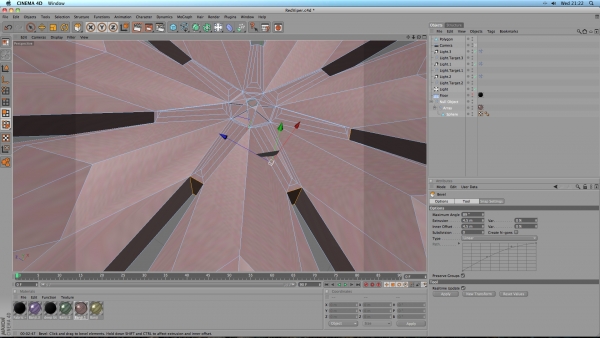

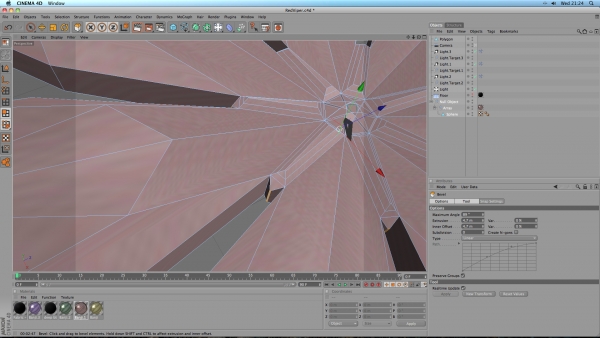

I select some more faces and use the extrude inner tool for the centre piece and use the bevel tool on the arms. I then select the inside faces and plan to use bevel again to form points.

Creation of Anemone: Step 16

step 17 of 19

Creation of Anemone: Step 17

step 18 of 19

Creation of Anemone: Step 18

step 19 of 19

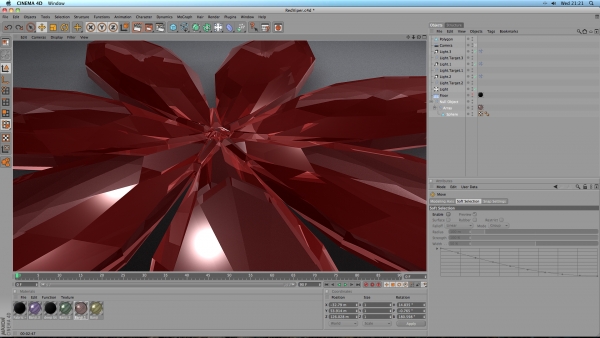

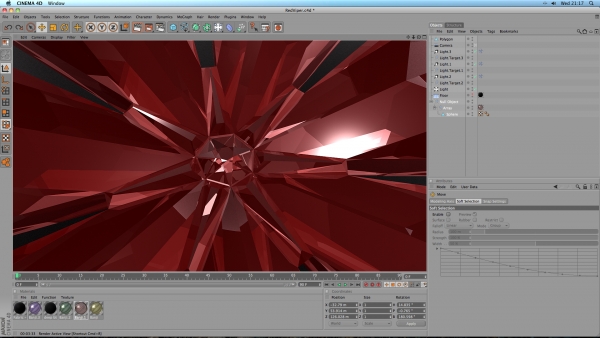

Here you can see the detail a bit better.
I added a floor, some lights and a camera.
Finally I make two renders one where my objects material is set on solid object and another with solid object unchecked. I bring both images into photoshop place my unchecked version above the other and set the blending mode to hard light and reduce the opacity to 40% then apply an adjustment layer of curves to give some contrast.

Creation of Anemone: Step 19

Final result

Creation of Anemone: Final Result
