A Work in Progress: Spilt Wine



This guide was made for entry:
Spilt Wine
In Contest:
liquids


step 1 of 4

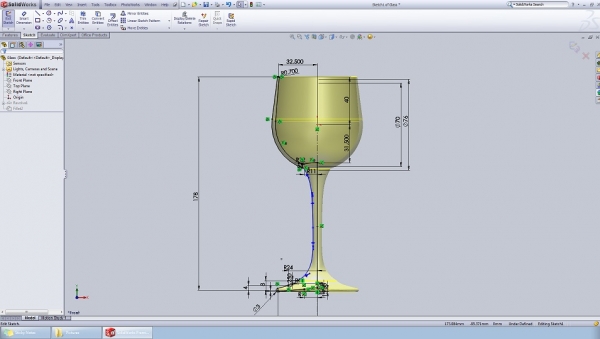

I started by creating a single wine glass which was simply a case of revolving the correct shape

Creation of Spilt Wine: Step 1

step 2 of 4

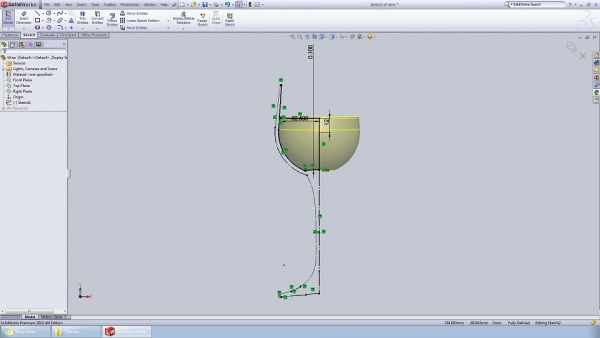

Next I created the wine, I did this by copying the outline of the glass, and drawing the wine revolve inside the sketch

Creation of Spilt Wine: Step 2

step 3 of 4

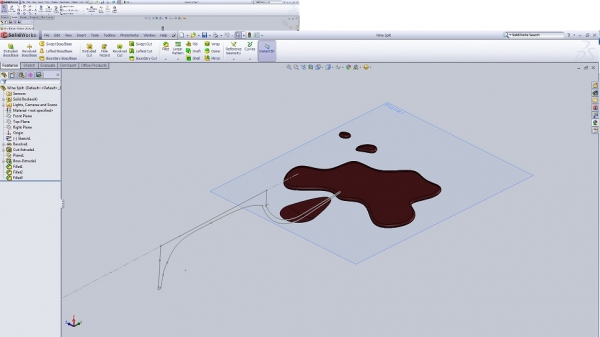

The spilt wine was a simple spline extruded, the remaining wine in the glass was a revolve which was then cut to size.

Creation of Spilt Wine: Step 3

step 4 of 4

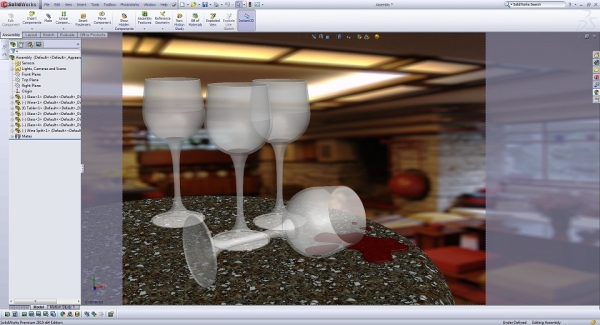

The final assembly was created by bringing in all the individual parts and applying the appropriate mates. I then applied materials and setup a camera. I had a lot of trouble getting the wine to look right through the glass, in the end I found clear red plastic looked best, but not what I was really looking for. The final render was a balance between quality and what my computer was capable of rendering.

Creation of Spilt Wine: Step 4

Final result

Creation of Spilt Wine: Final Result
