A Work in Progress: Robo Insect



This guide was made for entry:
Robo Insect
In Contest:
bug designs


step 1 of 7

This is a highly simplified SBS. If you are interested then please contact me and I will make a Solidworks Basics Tutorial.

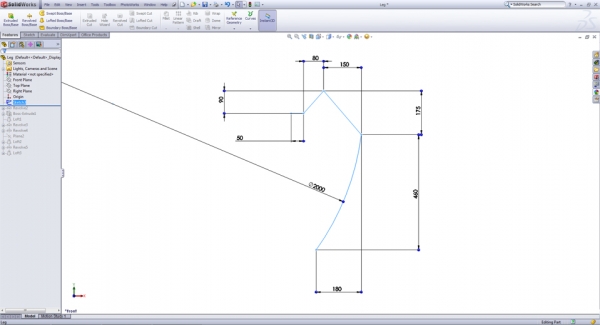

In this first step I sketched out the shape of the leg in 2D

Creation of Robo Insect: Step 1

step 2 of 7

I then used revolves, extrudes and lofts the begin forming the 3D leg

Creation of Robo Insect: Step 2

step 3 of 7

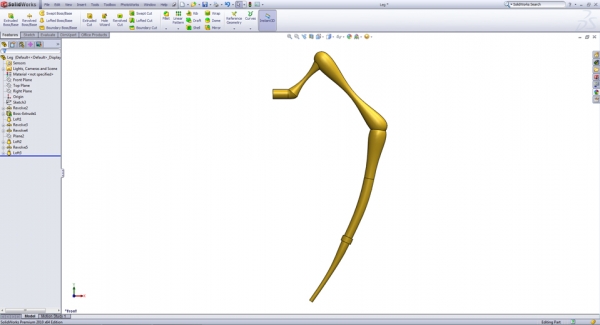

This is the completed leg

Creation of Robo Insect: Step 3

step 4 of 7

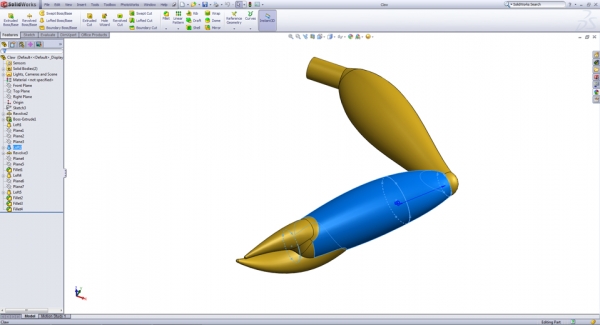

To create the claws I followed the same steps as for the leg. Highlighted in blue you can see the 3 sketches that make up that portion of that loft.

Creation of Robo Insect: Step 4

step 5 of 7

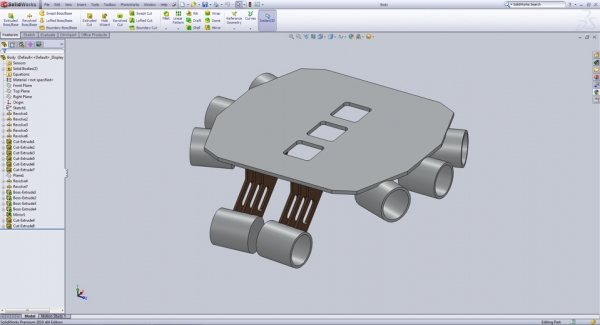

The body was a simple shape

Creation of Robo Insect: Step 5

step 6 of 7

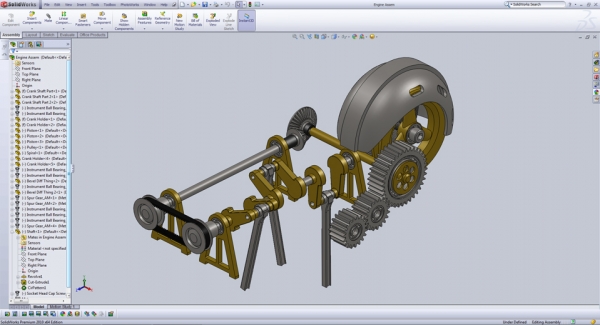

The mechanical bit in the middle was created as a separate assembly. This is the combination of many individual parts.

Creation of Robo Insect: Step 6

step 7 of 7

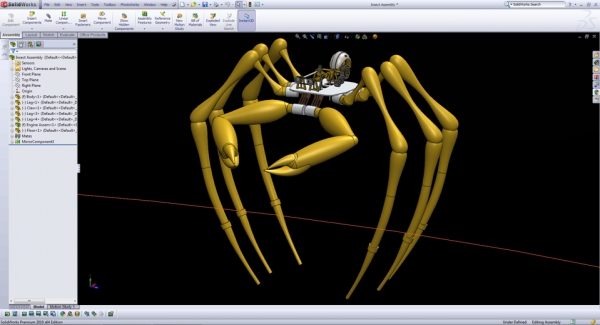

Final step was to assemble all the parts, apply materials, background and lighting etc.

Creation of Robo Insect: Step 7

Final result

Creation of Robo Insect: Final Result
