A Work in Progress: Chopper



This guide was made for entry:
Chopper
In Contest:
bike designs


step 1 of 10

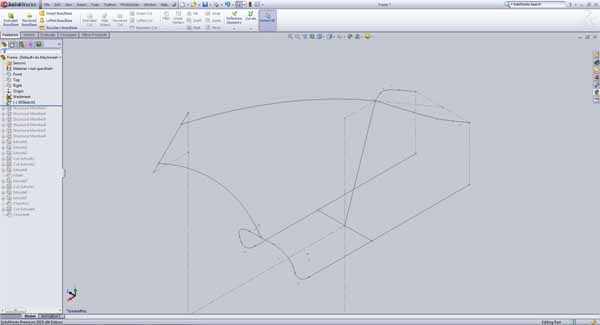

First I drew a 3D sketch of the frame.

Creation of Chopper: Step 1

step 2 of 10

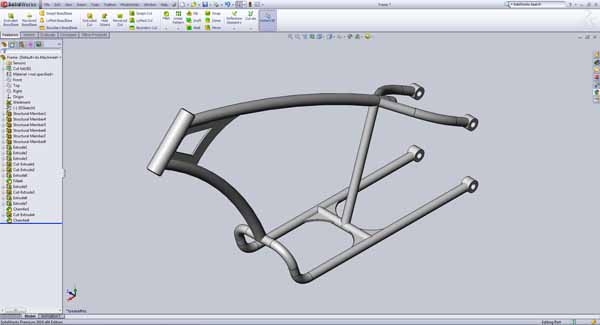

Then I turned the sketch into a model using the weldment command

Creation of Chopper: Step 2

step 3 of 10

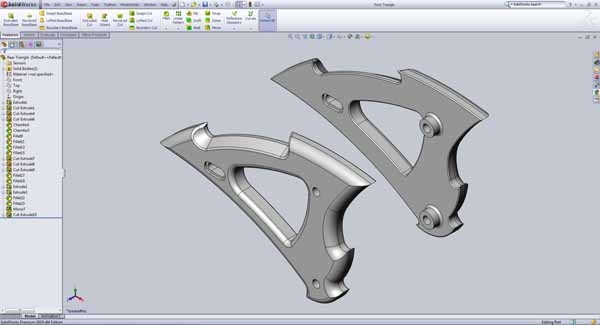

Then I modelled the rear triangle, this took sometime to get right. It mainly uses simple tools, however took a lot of tweaking to get right.

Creation of Chopper: Step 3

step 4 of 10

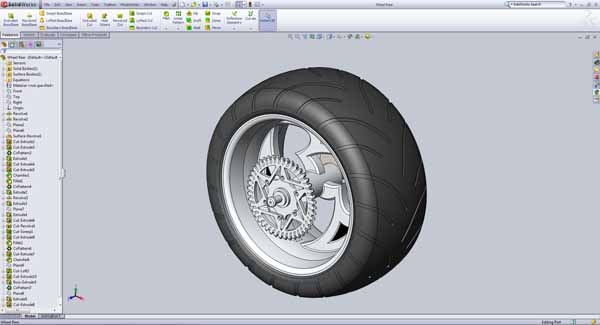

Rear wheel, mainly revolved and circular interpolation tools used here

Creation of Chopper: Step 4

step 5 of 10

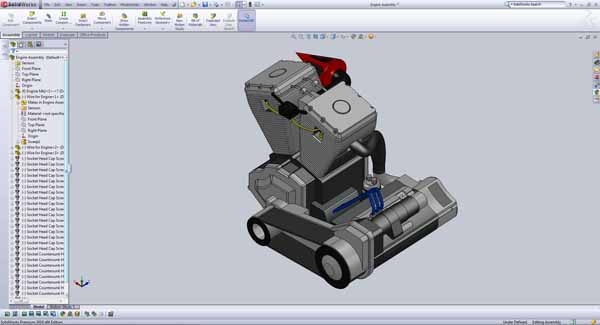

This is my third attempt at the engine and I still think the dimensions are off a little. Again simple steps to create this model, however I worked hard to make it as few steps to create as possible.

Creation of Chopper: Step 5

step 6 of 10

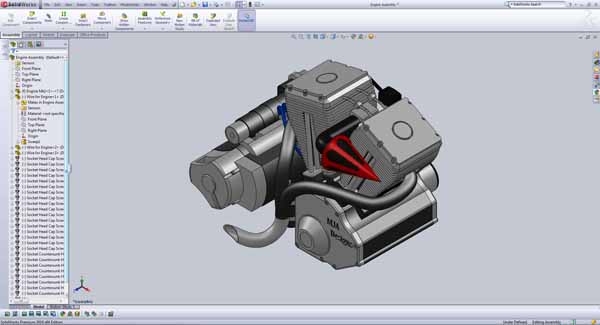

Another View

Creation of Chopper: Step 6

step 7 of 10

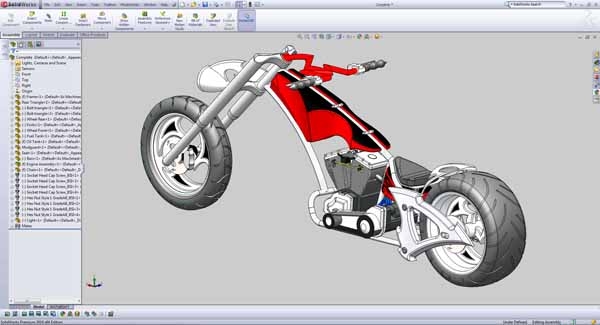

I put everything together, then added a background, cameras and lighting for the render.

Creation of Chopper: Step 7

step 8 of 10

Background Image, created by myself.

Creation of Chopper: Step 8

step 9 of 10

Alternative View

Creation of Chopper: Step 9

step 10 of 10

Alternative view

Creation of Chopper: Step 10

Final result

Creation of Chopper: Final Result
