A Work in Progress: Xtra Portable



This guide was made for entry:
Xtra Portable
In Contest:
bike designs


step 1 of 7

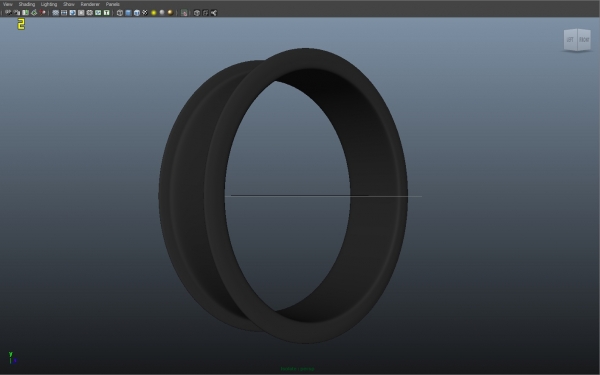

Wheel is simply an extruded pipe.

Creation of Xtra Portable: Step 1

step 2 of 7

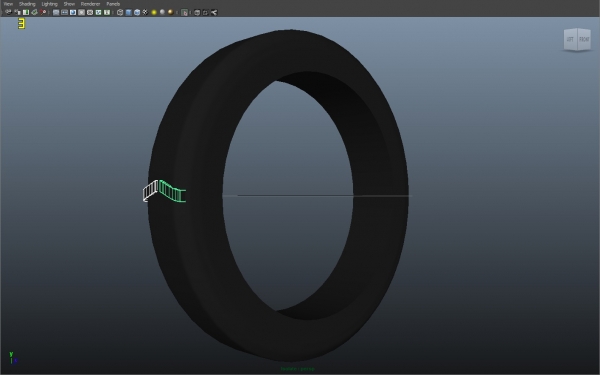

Wire basement is extruded pipe too. Next I created one tread.

Creation of Xtra Portable: Step 2

step 3 of 7

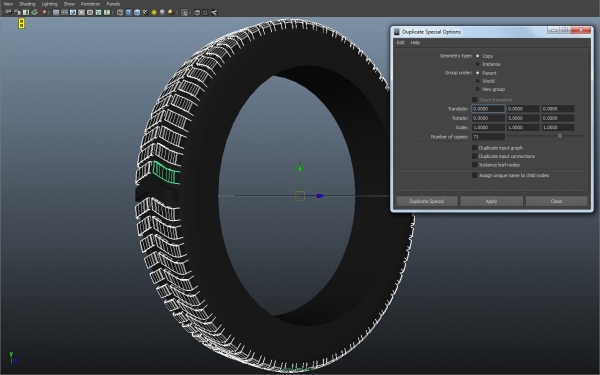

And duplicated it with these options. Make sure the pivot point is in the middle of tire.

Creation of Xtra Portable: Step 3

step 4 of 7

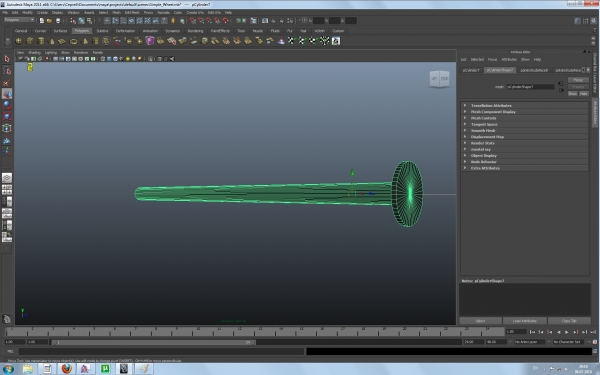

Hanger is extruded cylinder.

Creation of Xtra Portable: Step 4

step 5 of 7

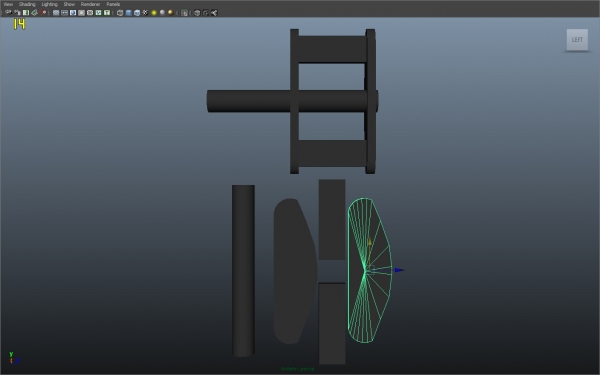

Here are pedal's components. Selected one is deformed cylinder (I didn't know about Crete Polygon Tool that moment).

Creation of Xtra Portable: Step 5

step 6 of 7

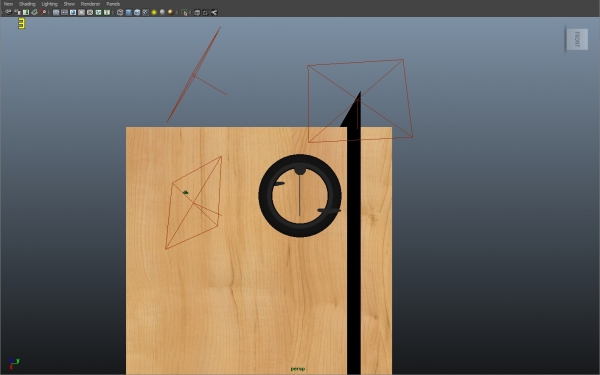

Add materials, walls and lights.

Creation of Xtra Portable: Step 6

step 7 of 7

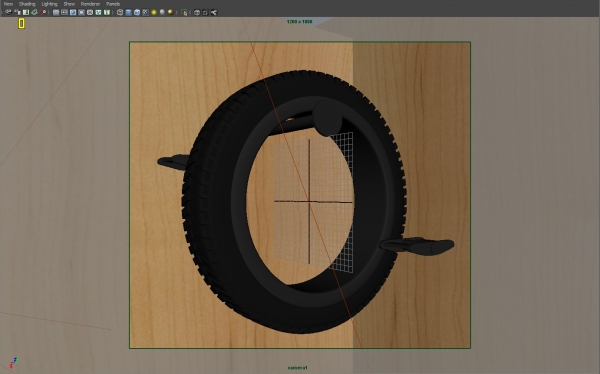

Position camera and render the scene.

Creation of Xtra Portable: Step 7

Final result

Creation of Xtra Portable: Final Result
