A Work in Progress: Ocean Blue



This guide was made for entry:
Ocean Blue
In Contest:
product display


step 1 of 14

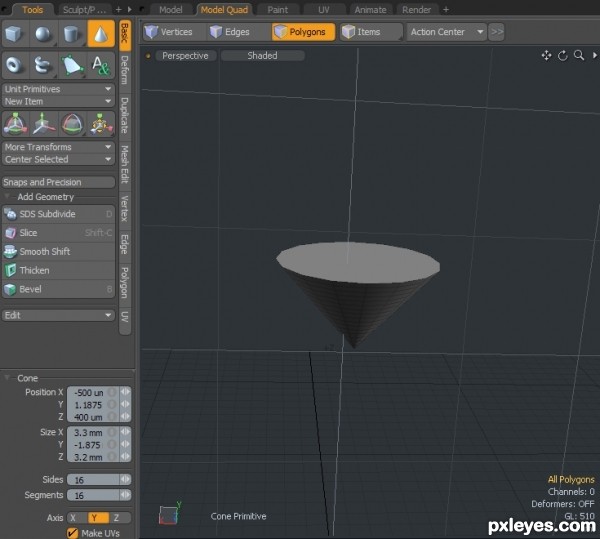

Start of the diamond some people use 8 sided cylinders I prefer to use a 16 sided cone.

Creation of Ocean Blue: Step 1

step 2 of 14

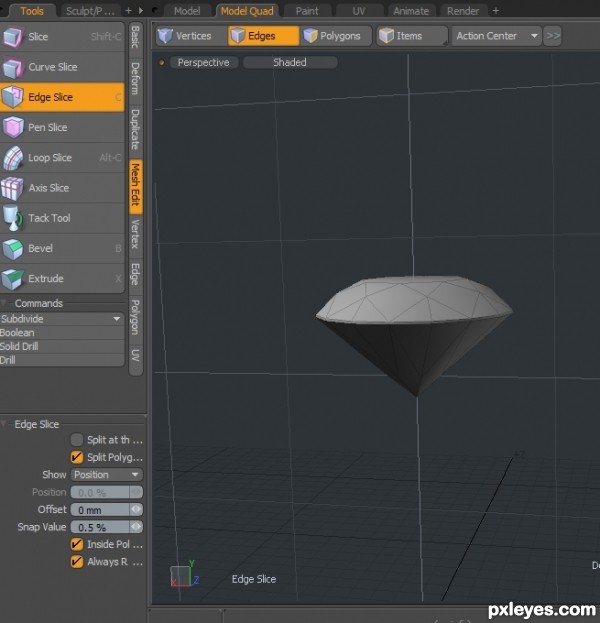

Lots of edge slicing involved in the stage, and the moving of vertices.

Creation of Ocean Blue: Step 2

step 3 of 14

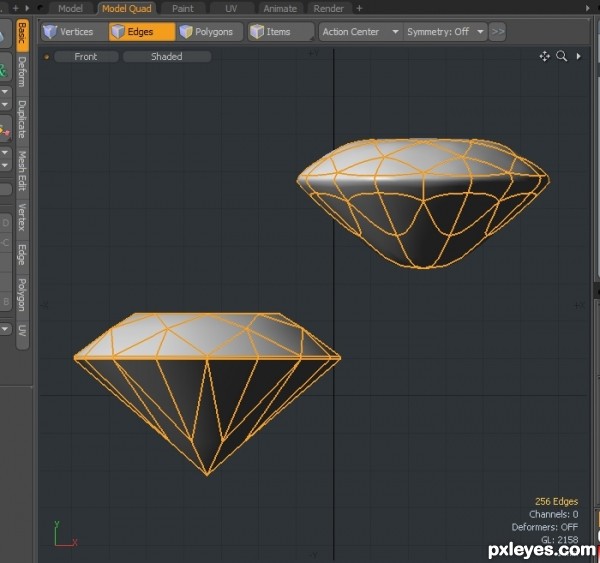

All the edge slicing done, bottom diamond is a straight ploy version know S.D.S, top diamond is WHAT happens when you convert a mesh to S.D.S with out adding either bevels / loop slices or edge weights so it holds its shape.

Creation of Ocean Blue: Step 3

step 4 of 14

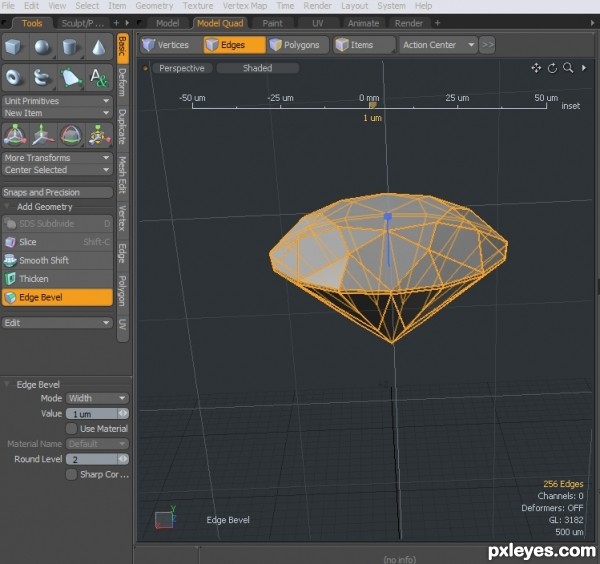

Micro bevels are added 1 um in size equal to 1/25400 inch as diamonds don’t have sharp edges….

Creation of Ocean Blue: Step 4

step 5 of 14

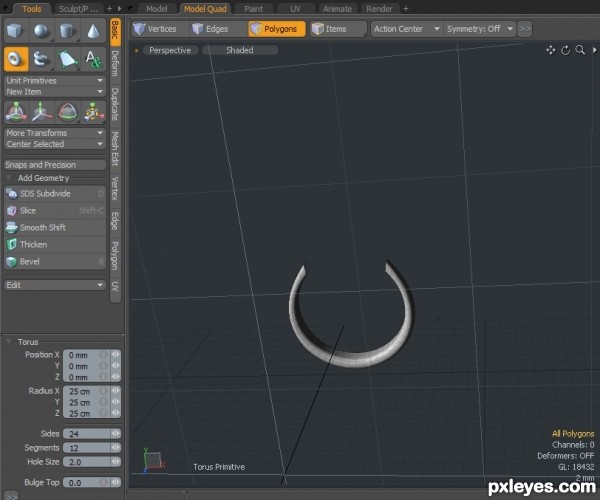

Start of the ring using stranded tours primitive

Creation of Ocean Blue: Step 5

step 6 of 14

Added another tours primitive for mounting all done in S.D.S

Creation of Ocean Blue: Step 6

step 7 of 14

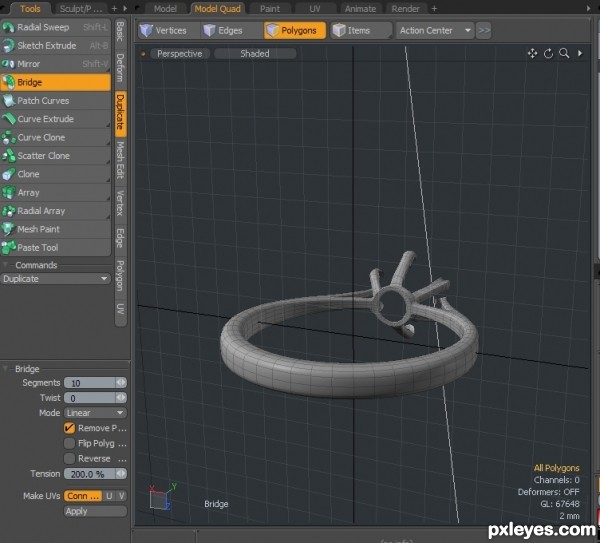

More cutting and bridging

Creation of Ocean Blue: Step 7

step 8 of 14

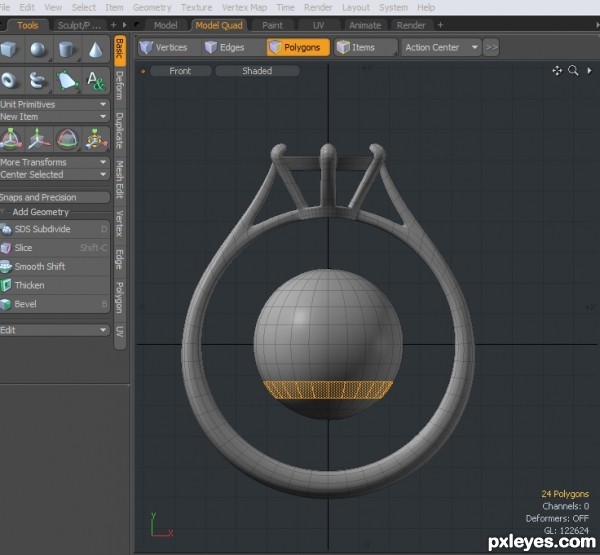

Stand sphere is selected the highlighted polygons are to be saved for the top mounting the rest are deleted.

Creation of Ocean Blue: Step 8

step 9 of 14

Was unhappy with the symmetry so one half was removed.

Creation of Ocean Blue: Step 9

step 10 of 14

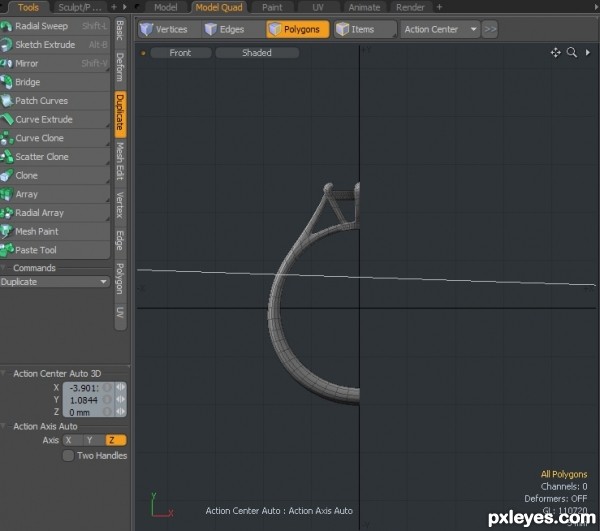

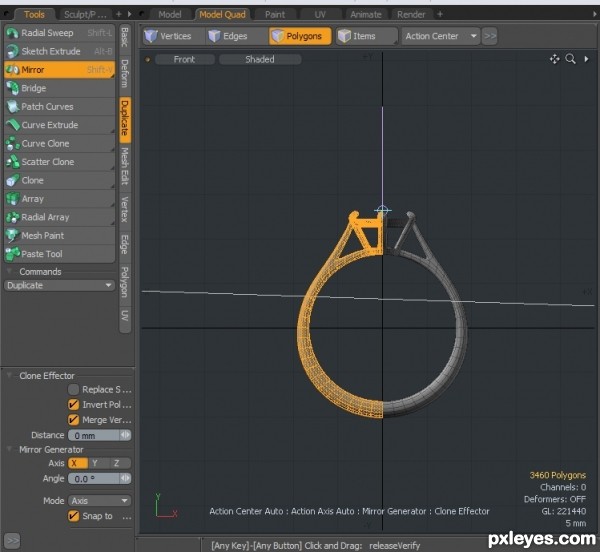

Mirrored the half I was happy with over and then bridged them together.

Creation of Ocean Blue: Step 10

step 11 of 14

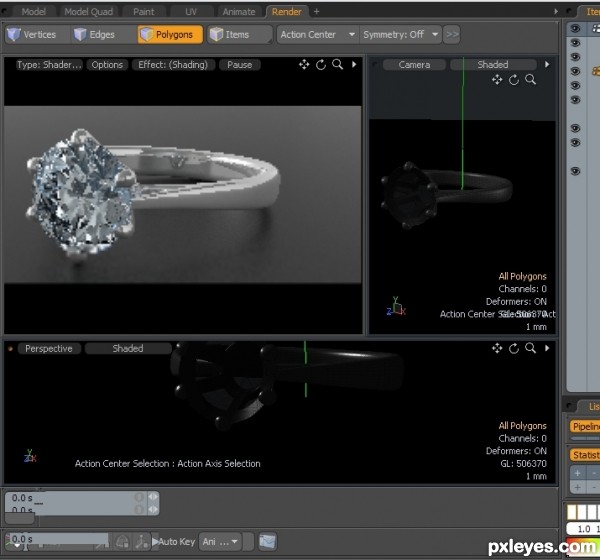

Reflections and lighting test.

Creation of Ocean Blue: Step 11

step 12 of 14

Render preview.

Creation of Ocean Blue: Step 12

step 13 of 14

Ambient Occlusion output added in Photoshop.

Creation of Ocean Blue: Step 13

step 14 of 14

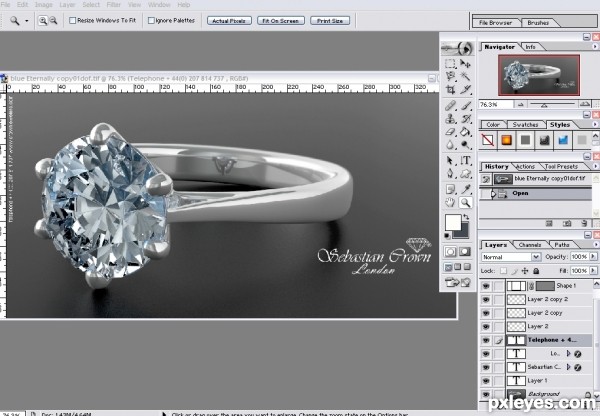

Text in Photoshop stranded presets.

Creation of Ocean Blue: Step 14

Final result

Creation of Ocean Blue: Final Result
