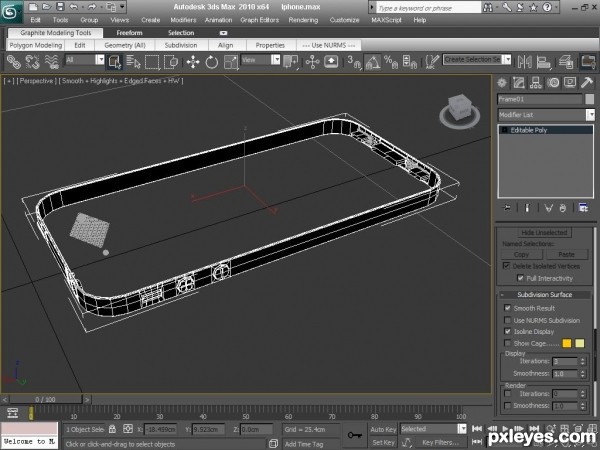

Created the silver outside edge with buttons. Basic poly modelling done here. Spent time on the buttons, using lots of connect and chamfer and extrude commands.
step 1 of 16
step 2 of 16

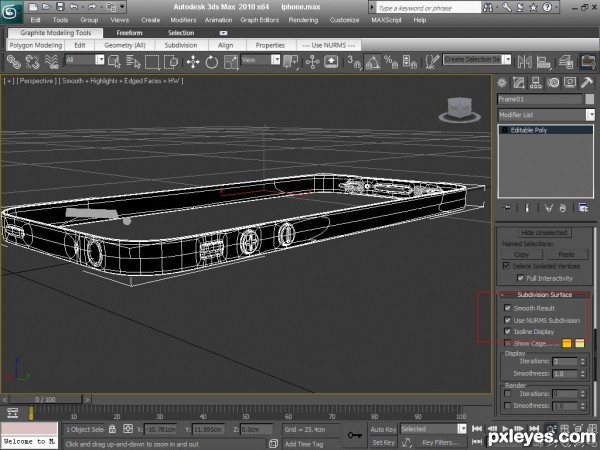

Here I used Nurms subdivisions to make the edge smooth. Used 3 iterations.
step 3 of 16

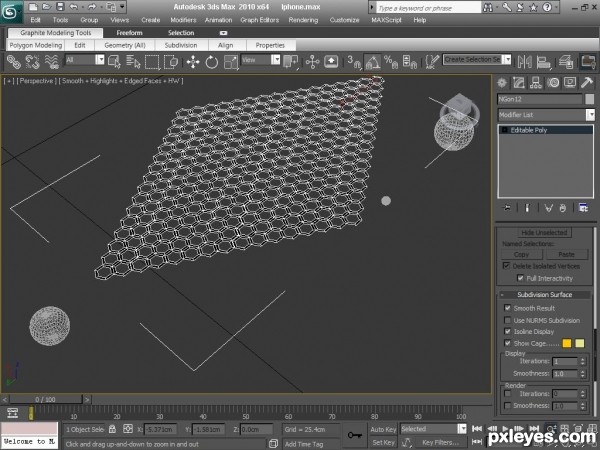

What you're looking at is the lenses/flash and speaker grill. The spiker was lots of Ngons attached to each other, then inset the polys and deleted to give a nice grill effect.
step 4 of 16

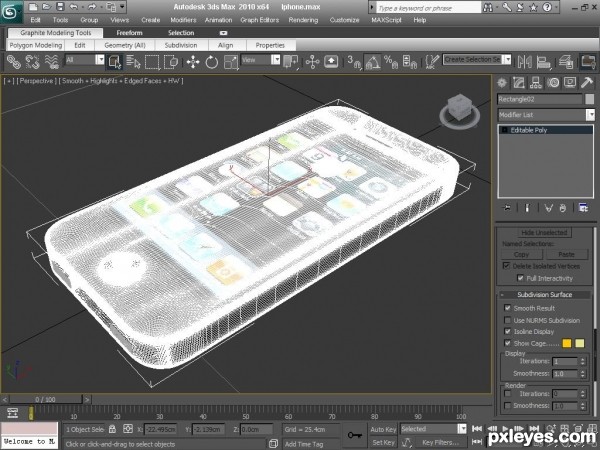

So here's the main body of the phone. You can tell by the sheer amount of edges how hi-poly this model is. I spent lots of time with this. Unfortunately I used a meshsmooth modifier and the dropped it down to an editable poly, This was because I used a composite material with 3 decals, and to keep them in place rather than have 3 stacked UVMap modifiers I dropped it down to a poly to keep them in place.
step 5 of 16

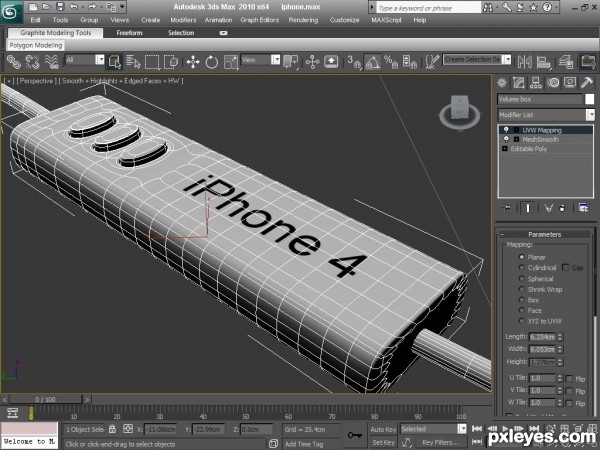

This is the volume box for the headset. I started with a basic box, then chamfered the edges. I used connect/extrude/chamfer and bevel for the buttons. Then used Nurms subdivisions to get the box smooth. I used a composite material to get the logo decal onto it.
step 6 of 16
The earpieces are made from a cone, with some chamfer/extrude/and nurms subdivisions. The shape was made using edge modelling.
step 7 of 16

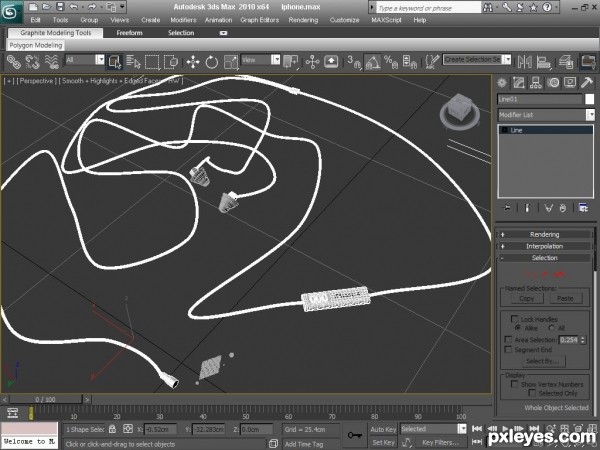

The earpiece cables (3 of them) were splines set to have the rendering enabled. I used smooth vertex corner and about 20 segments.
step 8 of 16

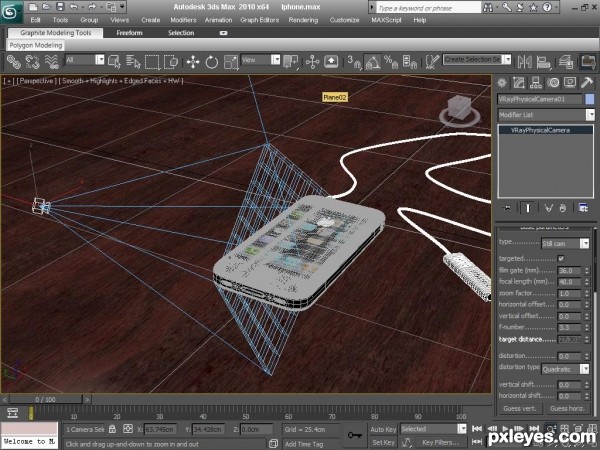

I used a Vray Camera for rendering.
step 9 of 16

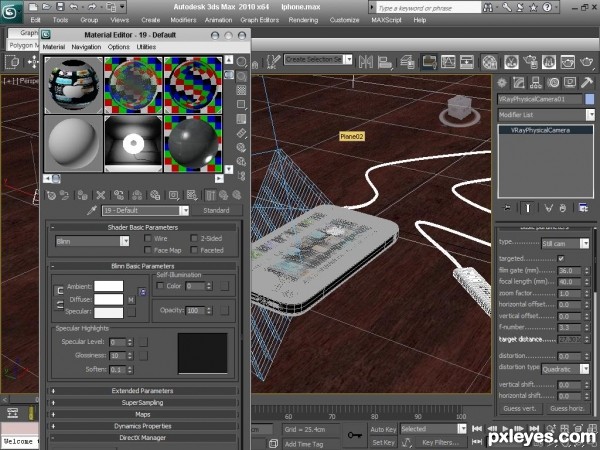

Here are some of the materials I used for the scene.
step 10 of 16

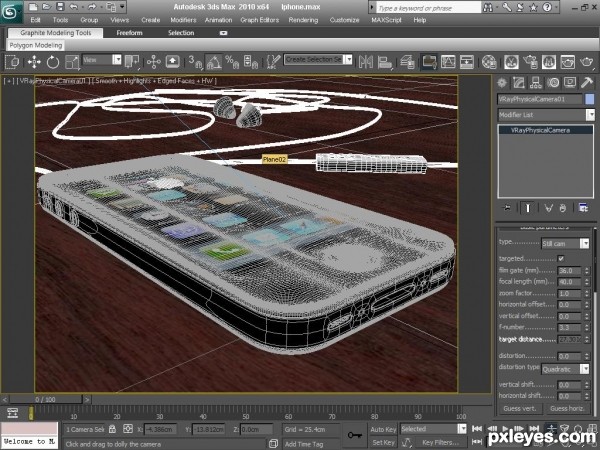

The scene setup before rendering
step 11 of 16

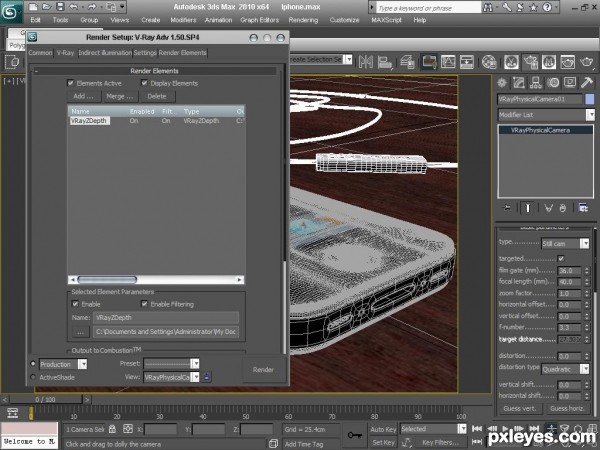

This shows I added a Vray Zdepth render element to be used later in Photoshop to add some subtle depth of field.
step 12 of 16
This is the result of the Vray Zdepth pass
step 13 of 16
iPhone logo created in PS with Arial font
step 14 of 16
iPhone logo Opacity map for the composite material
step 15 of 16
On/Off decal created in PS
step 16 of 16
On/Off Decal opacity map used in composite material.
Final result
