A Work in Progress: nothing good on TV



This guide was made for entry:
nothing good on TV
In Contest:
character design


step 1 of 45

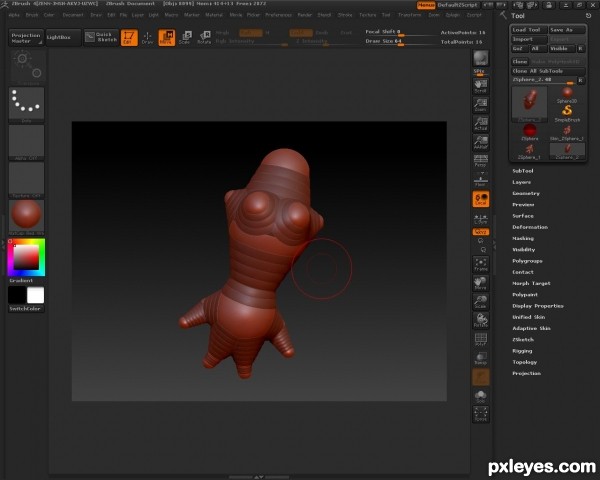

started in Zbrush using ZSpheres

Creation of nothing good on TV: Step 1

step 2 of 45

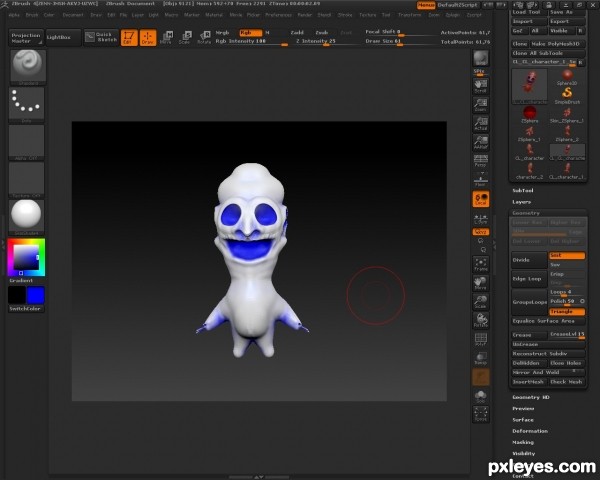

converted to polymesh 3d

Creation of nothing good on TV: Step 2

step 3 of 45

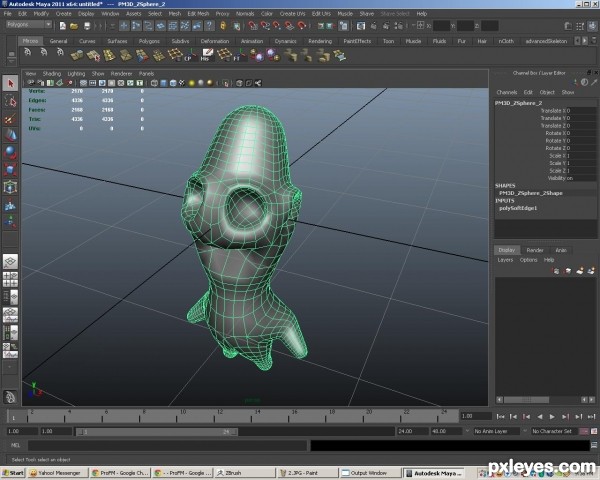

exported to maya and adjusted the topology. I was going to make a big boulge for the mouth and i didn't had enough resolution in that area

Creation of nothing good on TV: Step 3

step 4 of 45

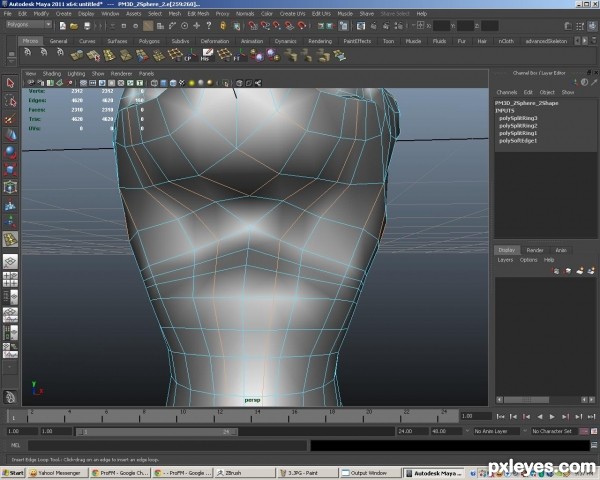

a closeup for the retopo step

Creation of nothing good on TV: Step 4

step 5 of 45

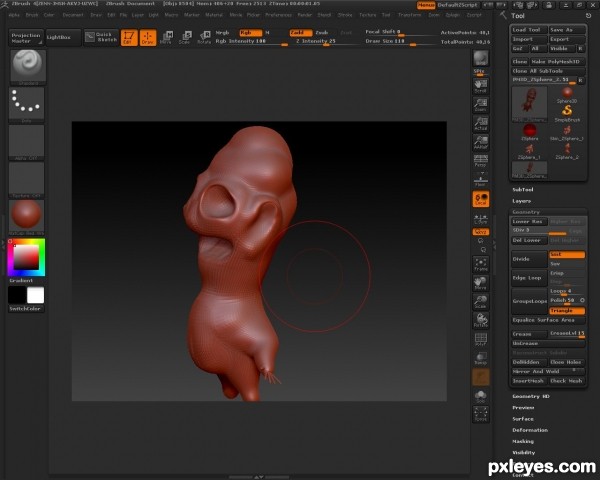

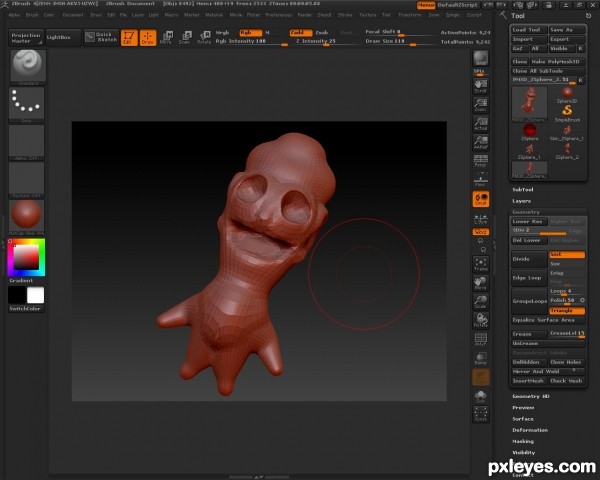

went back to zbrush and started to sculpt with the standard brush

Creation of nothing good on TV: Step 5

step 6 of 45

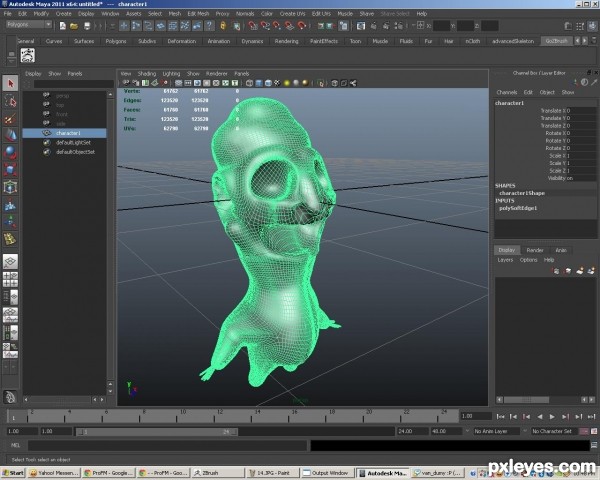

another stop to maya to add more resolution to where i need. As a sidenote, there is a tool in Zbrush for retopology, but Maya is better and if you have GoZbrush plugin installed to your main 3D app it s very easy to switch between Zbrush and your main 3D software

Creation of nothing good on TV: Step 6

step 7 of 45

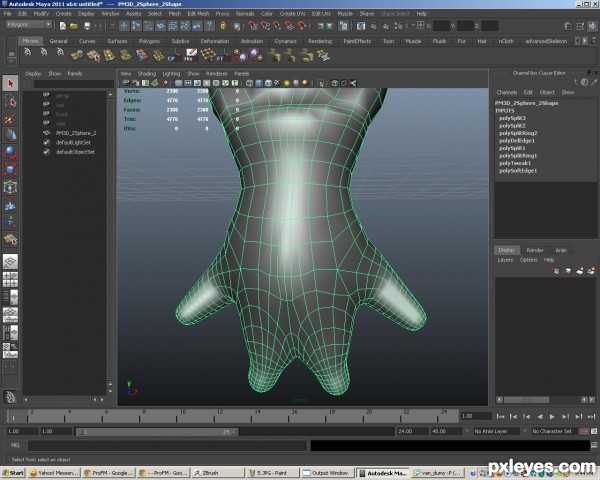

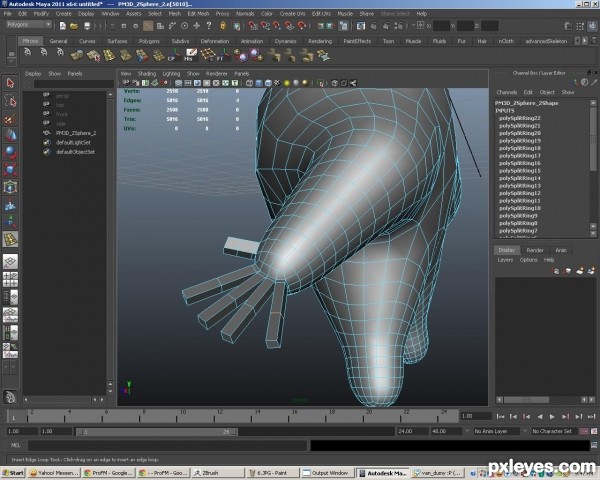

made some extrusions in maya for the fingers. As it turned out later, i wasn't very happy with the fingers and made the hands separately

Creation of nothing good on TV: Step 7

step 8 of 45

got back to zbrush and subdivided so i could sculpt in more detail

Creation of nothing good on TV: Step 8

step 9 of 45

the progress so far. To give you a better view of your sculpted head it helps to switch between matcaps.

Creation of nothing good on TV: Step 9

step 10 of 45

created the uv's with UV Mapper

Creation of nothing good on TV: Step 10

step 11 of 45

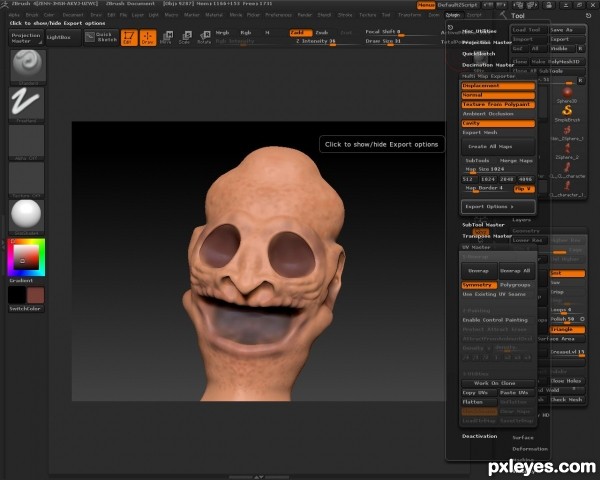

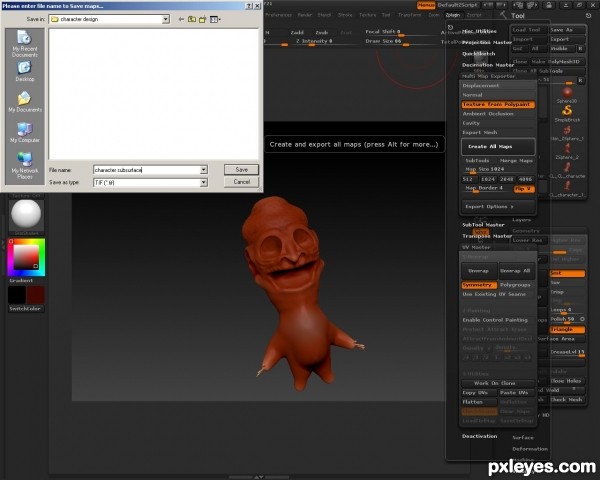

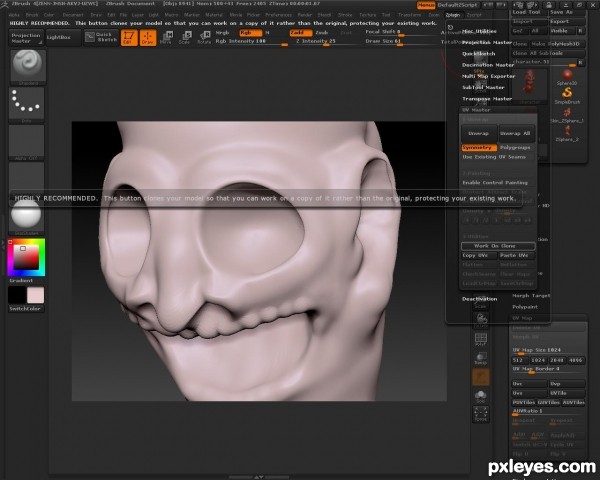

decided to get my seams from ambient occlusion. You could paint where you want to attract your seams, but this worked ok

Creation of nothing good on TV: Step 11

step 12 of 45

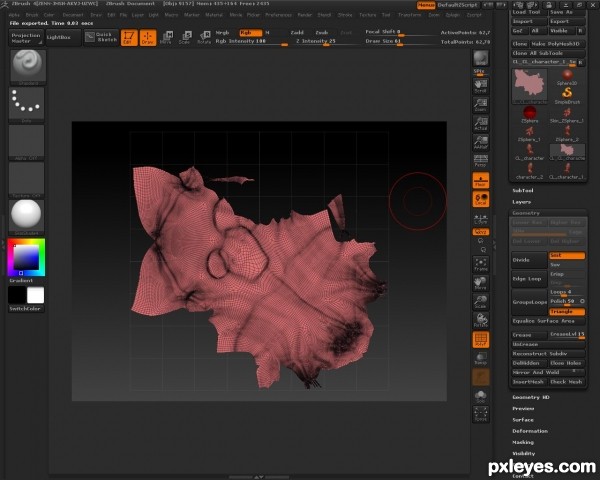

here's my 1 minute UV unwrapping. It's not a perfect result, but for the lack of work i did, it's ok. I personaly hate to UV map, so this tool it's great for me

Creation of nothing good on TV: Step 12

step 13 of 45

here's my skin texture. I made another one as a subskin for subsurface scattering.

Creation of nothing good on TV: Step 13

step 14 of 45

here's my subskin where i painted some vains and some skin spots

Creation of nothing good on TV: Step 14

step 15 of 45

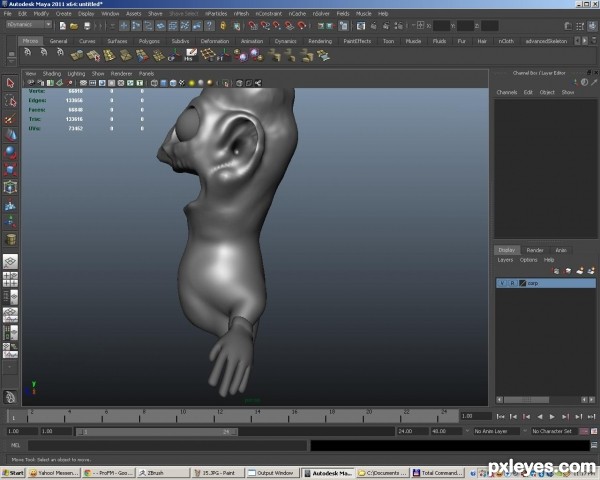

back to maya

Creation of nothing good on TV: Step 15

step 16 of 45

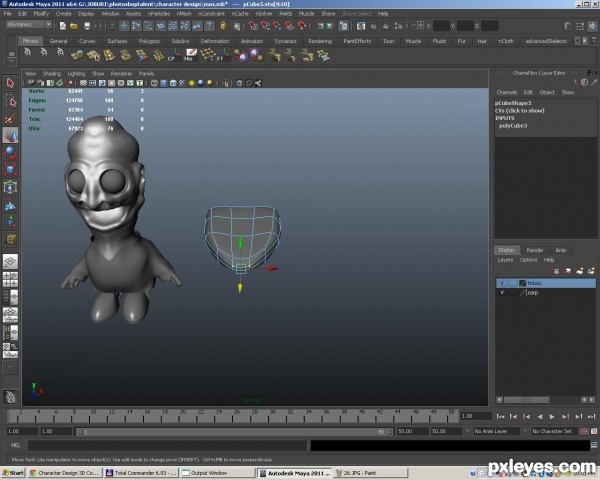

made the hands separately

Creation of nothing good on TV: Step 16

step 17 of 45

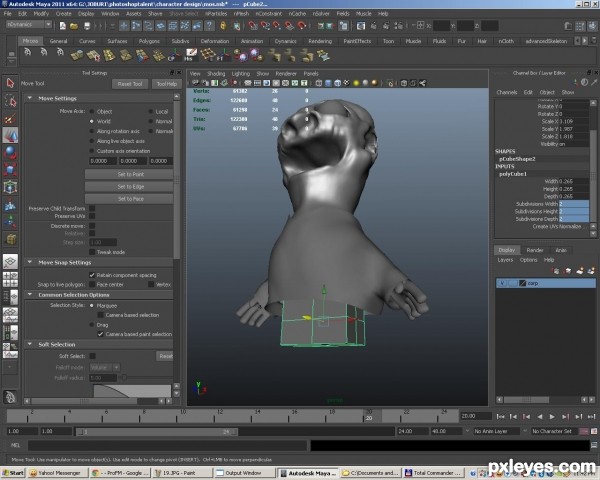

from a cylinder i made a sort of jacket and converted it to ncloth

Creation of nothing good on TV: Step 17

step 18 of 45

here's my jacket

Creation of nothing good on TV: Step 18

step 19 of 45

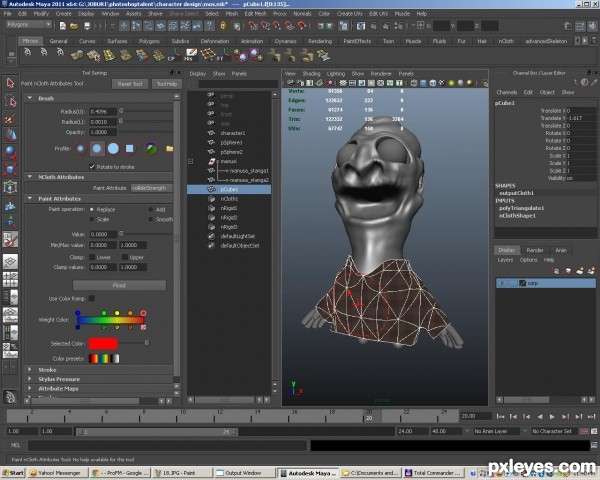

i painted the weights on the jacket, where i wanted to stick and where i wanted to be less stiff

Creation of nothing good on TV: Step 19

step 20 of 45

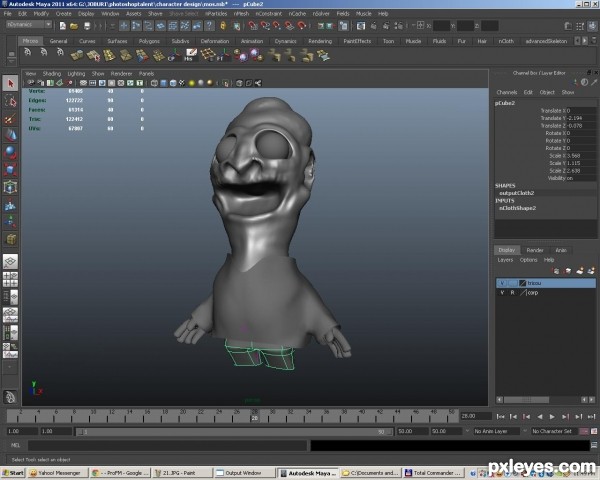

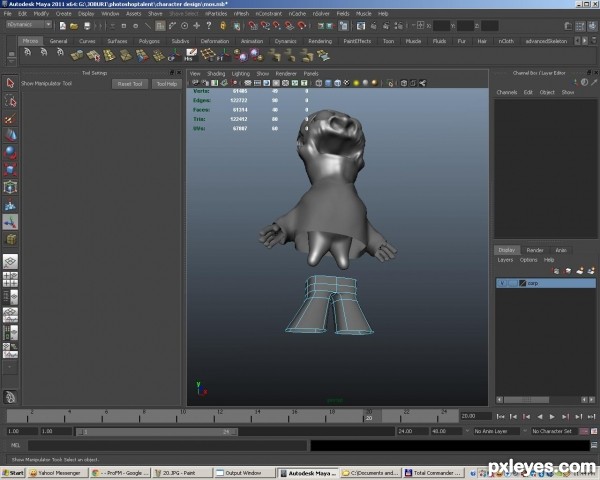

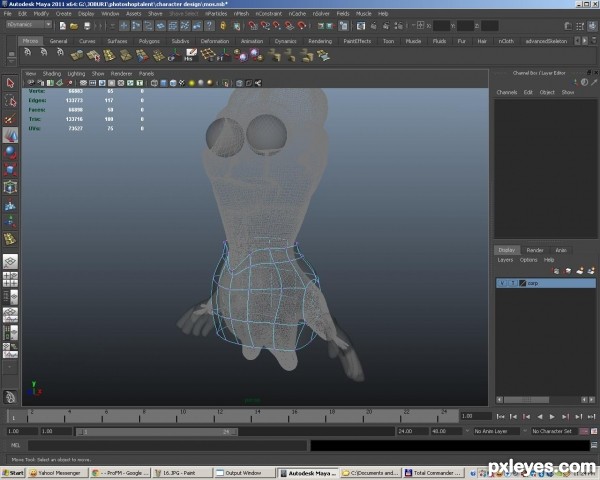

made the same thing for the shorts

Creation of nothing good on TV: Step 20

step 21 of 45

Creation of nothing good on TV: Step 21

step 22 of 45

Creation of nothing good on TV: Step 22

step 23 of 45

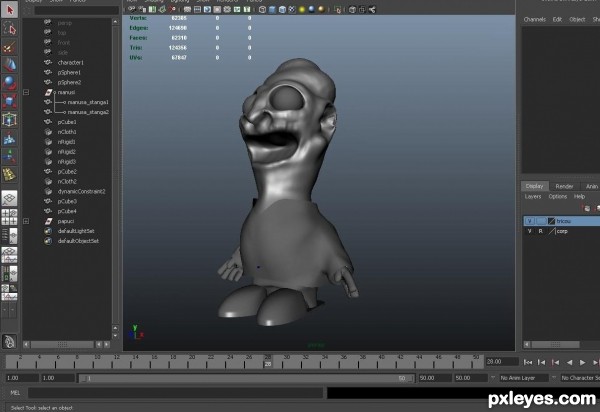

this is my dressed character.

Creation of nothing good on TV: Step 23

step 24 of 45

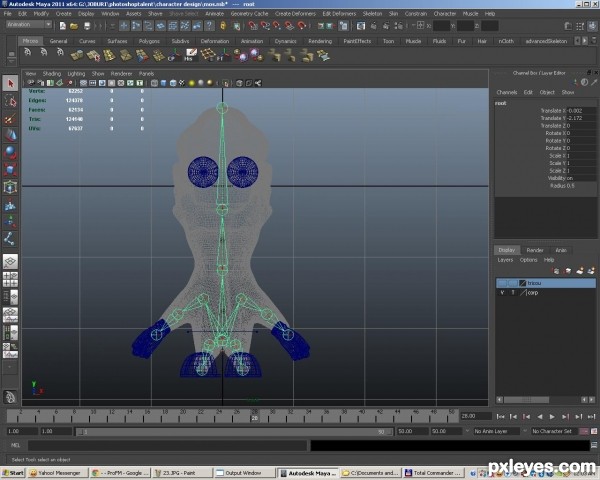

after this i rigged my character, with a simple rig so i can pose him however i want

Creation of nothing good on TV: Step 24

step 25 of 45

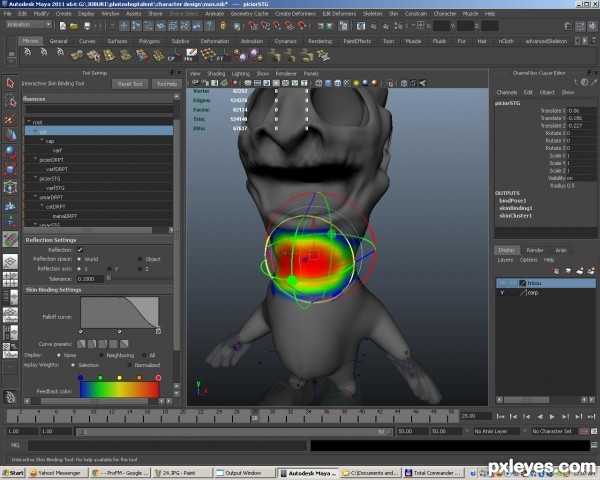

used interactive binding.. since it was the easiest one wit dual quaternions settings

Creation of nothing good on TV: Step 25

step 26 of 45

Creation of nothing good on TV: Step 26

step 27 of 45

toung

Creation of nothing good on TV: Step 27

step 28 of 45

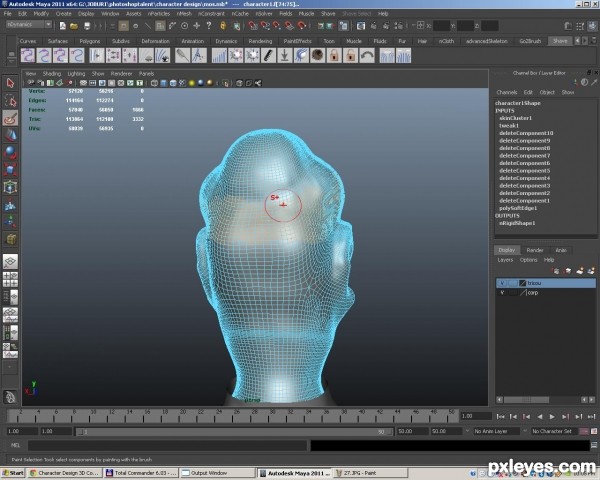

i then selected the faces i wanted hair to grow

Creation of nothing good on TV: Step 28

step 29 of 45

and here's Santa..

Creation of nothing good on TV: Step 29

step 30 of 45

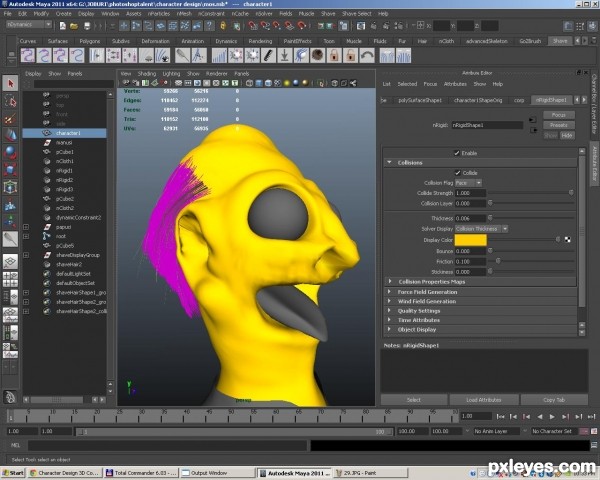

i then setup collisions for the hair, so the hair will not penetrate the mesh

Creation of nothing good on TV: Step 30

step 31 of 45

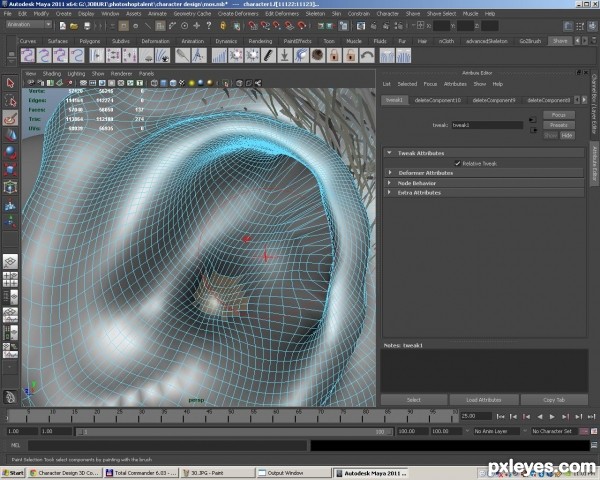

added some hair in the ear

Creation of nothing good on TV: Step 31

step 32 of 45

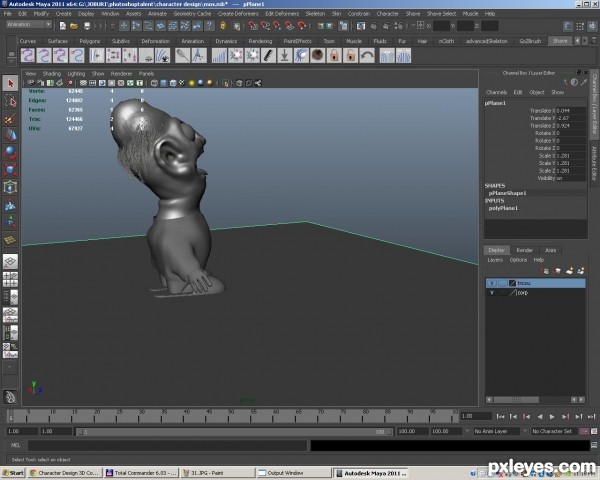

at first i wanted to make him look at a candy jar on the top of a desk.. but changed my mind

Creation of nothing good on TV: Step 32

step 33 of 45

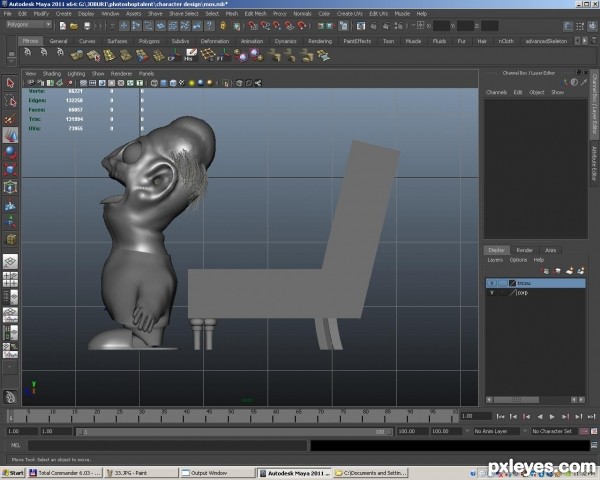

started to model the chair

Creation of nothing good on TV: Step 33

step 34 of 45

Creation of nothing good on TV: Step 34

step 35 of 45

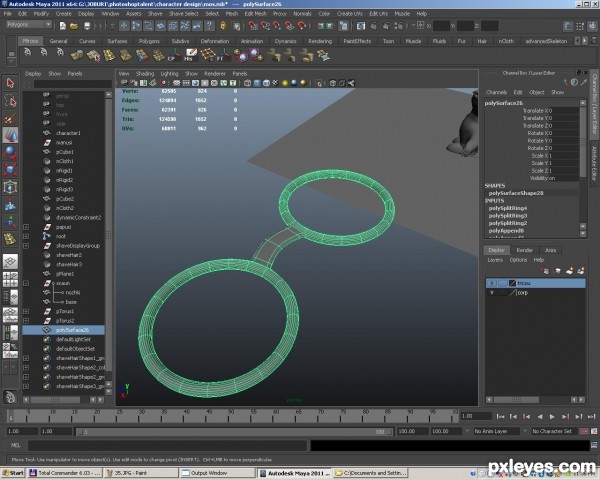

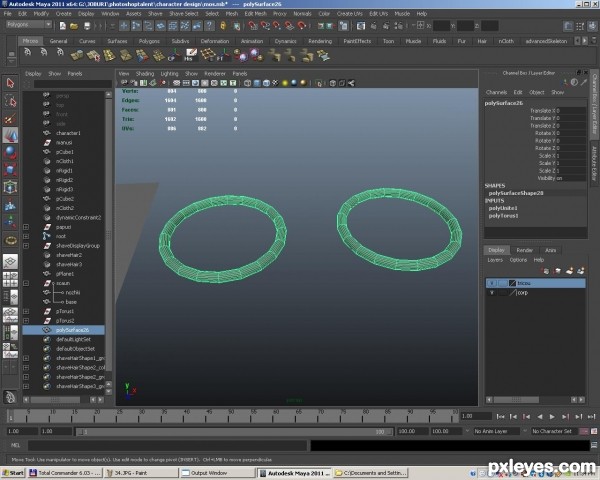

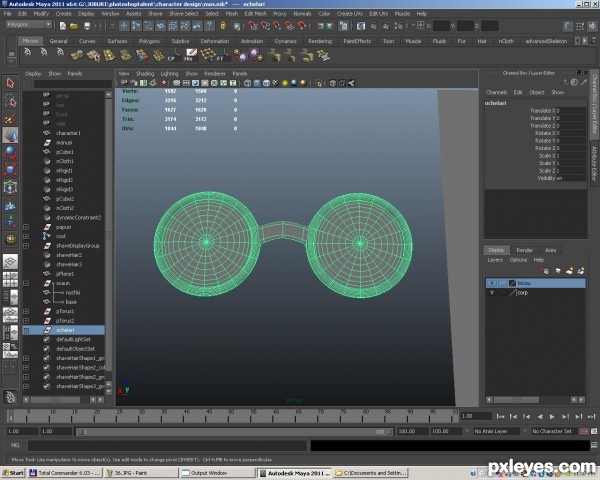

made the glasses from touruses and two spheres

Creation of nothing good on TV: Step 35

step 36 of 45

Creation of nothing good on TV: Step 36

step 37 of 45

Creation of nothing good on TV: Step 37

step 38 of 45

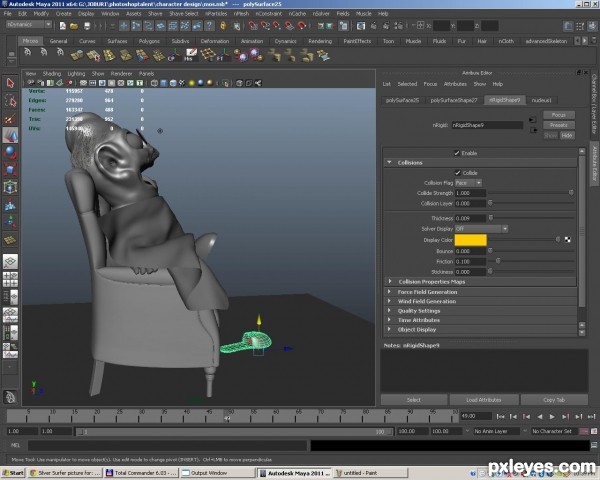

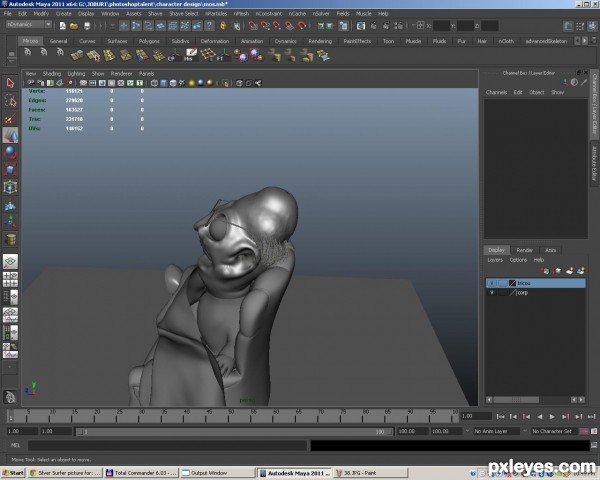

i've added a poligon plan and converted it in ncloth then let it fall over the man

Creation of nothing good on TV: Step 38

step 39 of 45

Creation of nothing good on TV: Step 39

step 40 of 45

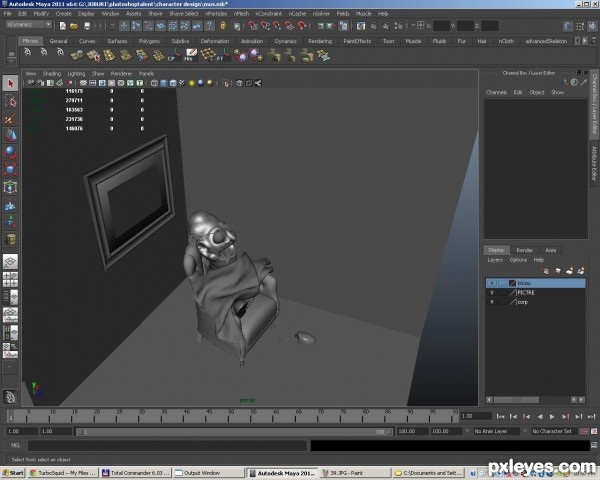

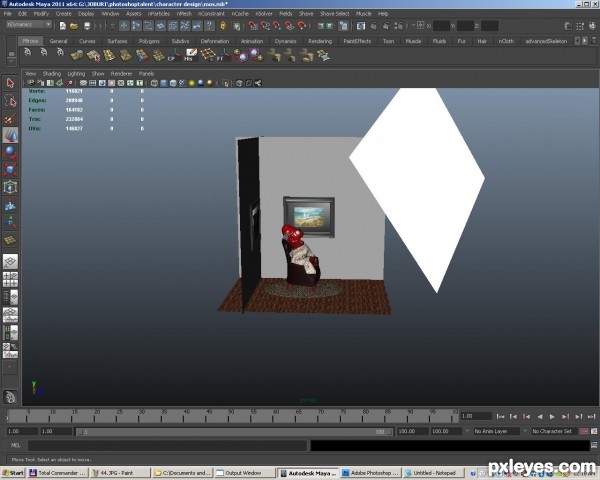

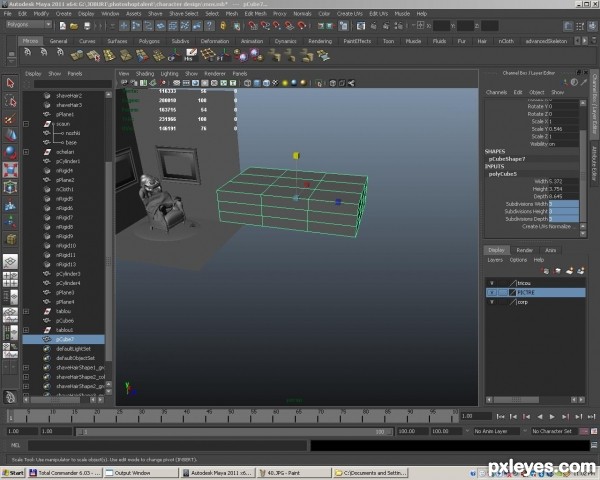

my setup

Creation of nothing good on TV: Step 40

step 41 of 45

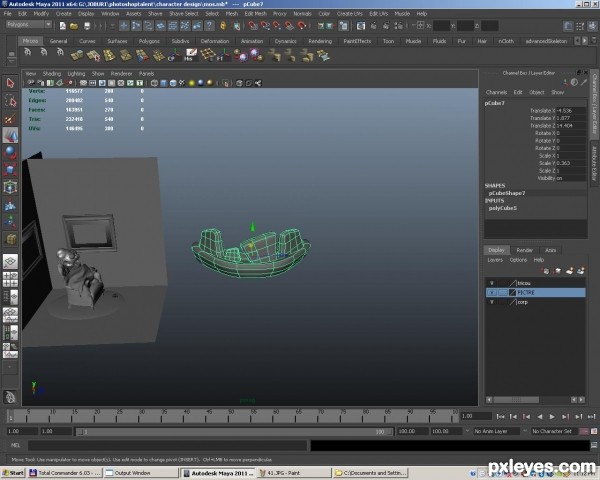

started to make the tooth

Creation of nothing good on TV: Step 41

step 42 of 45

Creation of nothing good on TV: Step 42

step 43 of 45

this is how i combined the skin shader.. on a miss fast skin shader i added the first texture for the skin and then the seccond as scatter.

The bottom part is the texture for the chair

Creation of nothing good on TV: Step 43

step 44 of 45

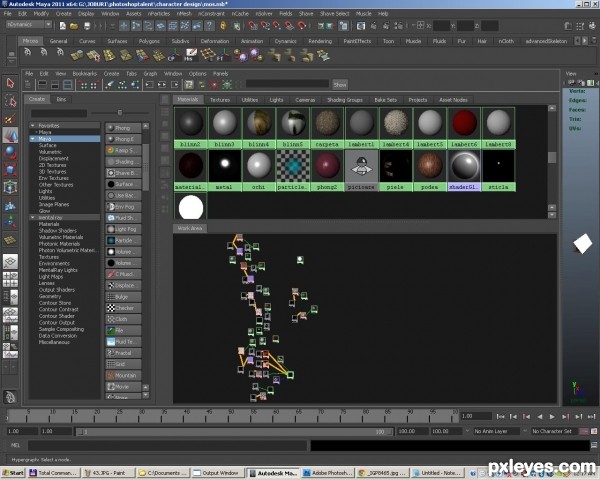

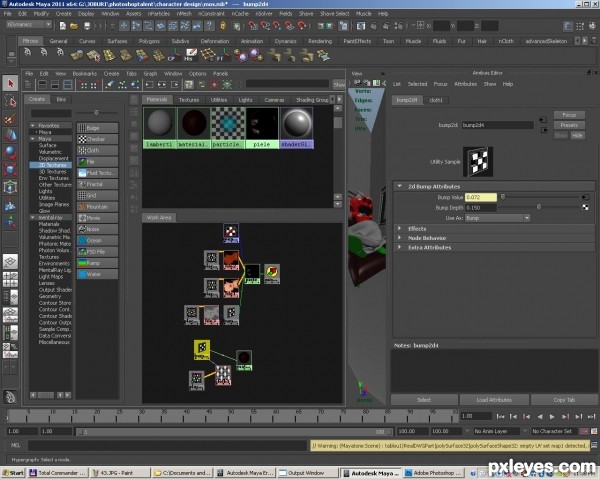

these are all my shaders that i used

Creation of nothing good on TV: Step 44

step 45 of 45

my lighting setup.

And this concludes 3 days of work.. combined aproximately 16 hours

Creation of nothing good on TV: Step 45

Final result

Creation of nothing good on TV: Final Result
