A Work in Progress: Digital 430



This guide was made for entry:
Digital 430
In Contest:
tutorial 3D


step 1 of 14

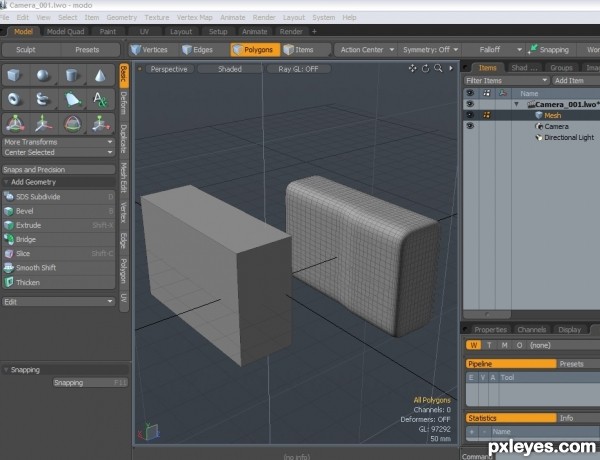

First step of the tutorial is to make the body made from a stranded cube.

Creation of Digital 430: Step 1

step 2 of 14

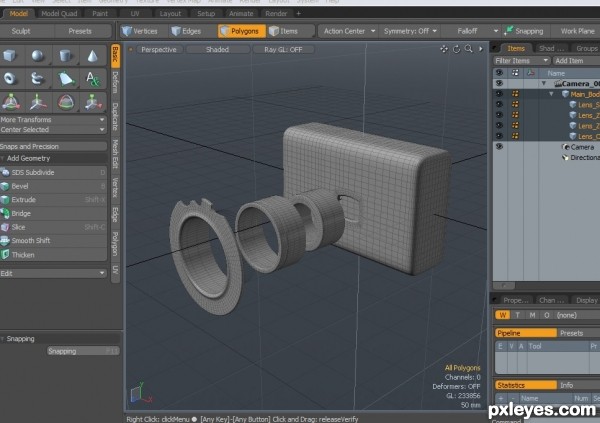

About four or five steps in the tutorial now, this is the front lens housing
Subdivision level is quite high as I am unsure if this will a close up or distance render.


Creation of Digital 430: Step 2

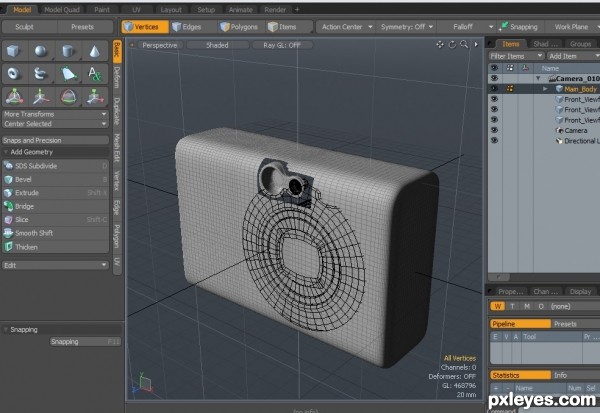

step 3 of 14

Optical viewfinder made and read to be connected to the main mesh.


Creation of Digital 430: Step 3

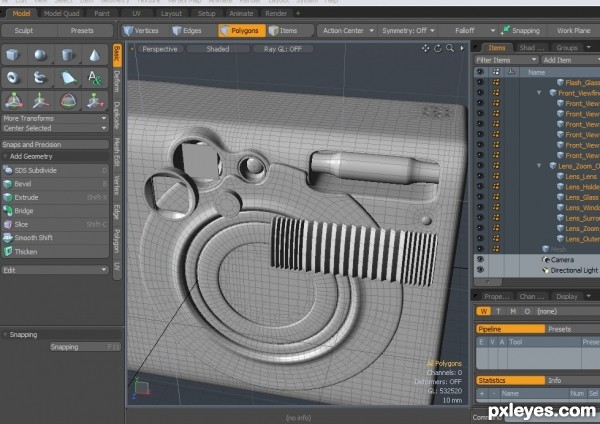

step 4 of 14

Flash bulb and speaker added plus viewfinder surround and lens.

Creation of Digital 430: Step 4

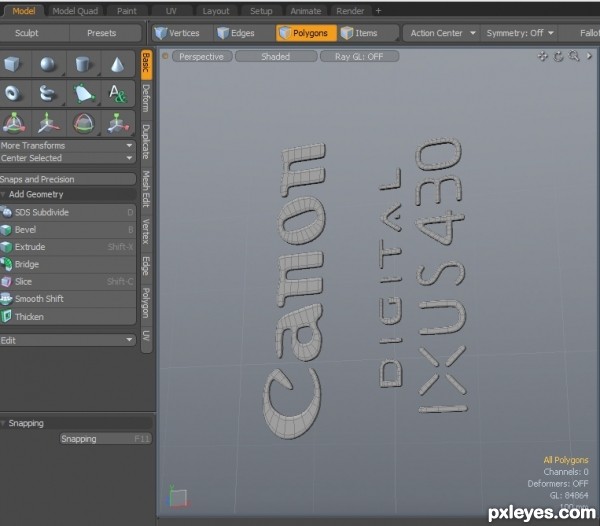

step 5 of 14

Canon logo is part of the tutorial. The other part I did of practise and instead of using a delicate.

Creation of Digital 430: Step 5

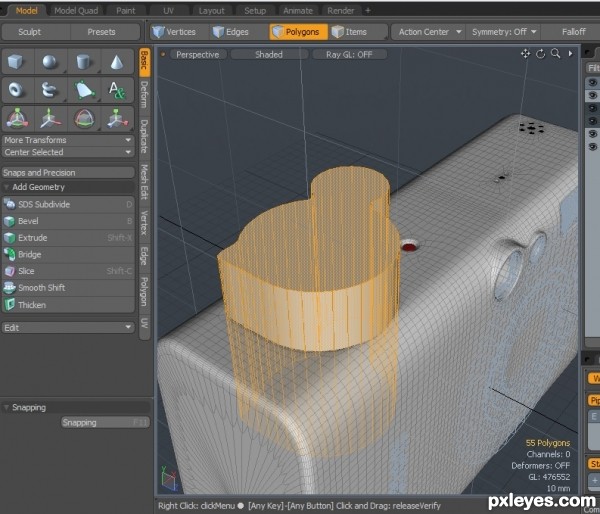

step 6 of 14

Next adding the buttons to the top of the mesh. Custom Boolean used for this operation all fun…..

Creation of Digital 430: Step 6

step 7 of 14

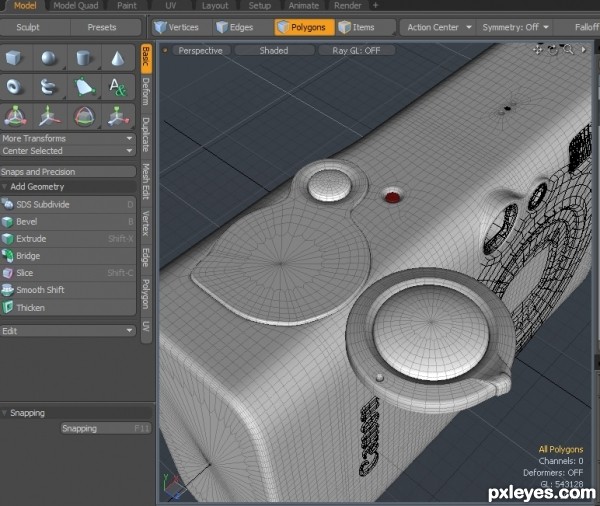

All the buttons made and added to the main mesh.

Creation of Digital 430: Step 7

step 8 of 14

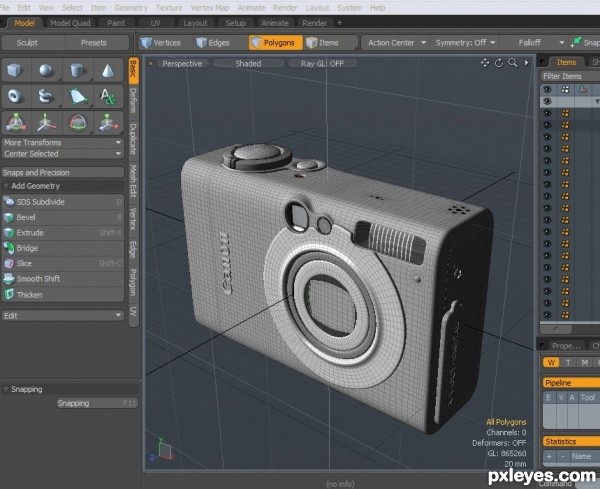

This is the completed camera well as far as the tutorial goes a very very brief look at only a small part of the 25 step tutorial.

Creation of Digital 430: Step 8

step 9 of 14

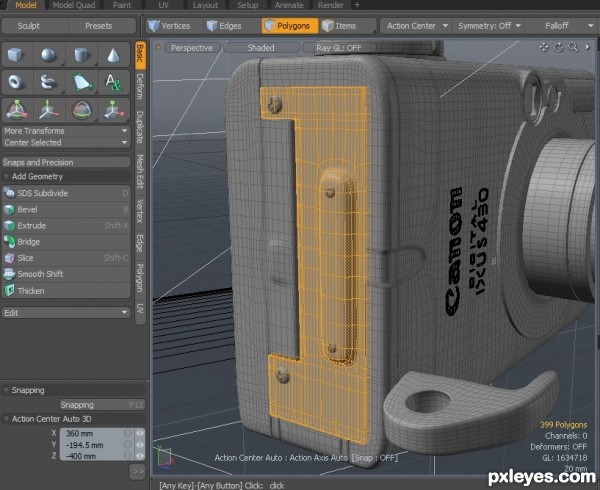

The next steps are just an over view of the back and sides which are not included in the tutorial most of the techniques are the same..... Left end strap mount.

Creation of Digital 430: Step 9

step 10 of 14

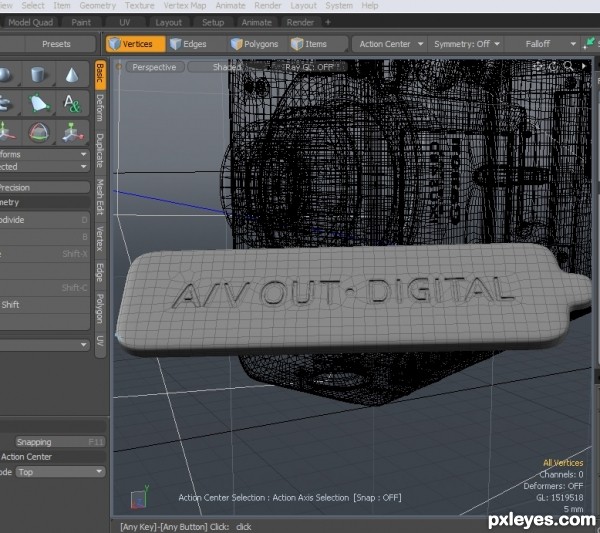

Right end AV out terminal cover.

Creation of Digital 430: Step 10

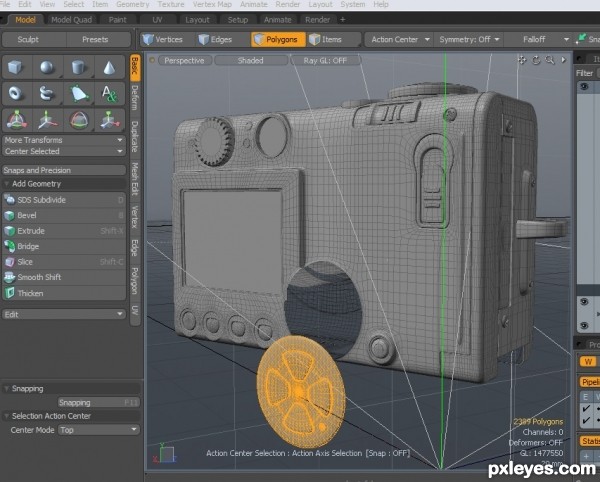

step 11 of 14

Back view, some very challenging shapes especially in a SD mesh, shooting dial, function buttons, multi controller, cf card /battery, viewfinder

Creation of Digital 430: Step 11

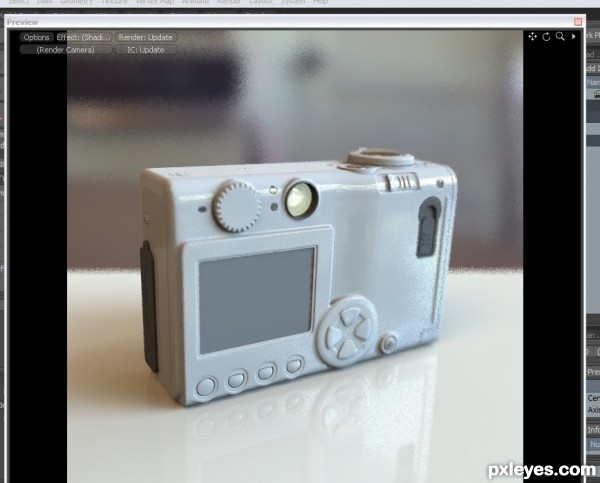

step 12 of 14

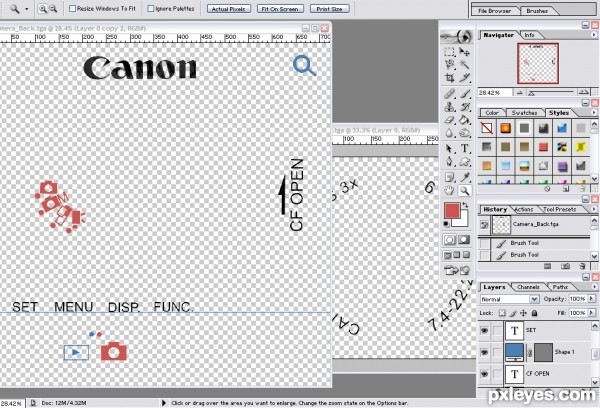

Render preview of the back not included in the final images as it is not finished simple don’t have enough time to make the rest of the delicates and then render it before the dead line.

Creation of Digital 430: Step 12

step 13 of 14

Front lens delicate and the start of the back ones…..

Creation of Digital 430: Step 13

step 14 of 14

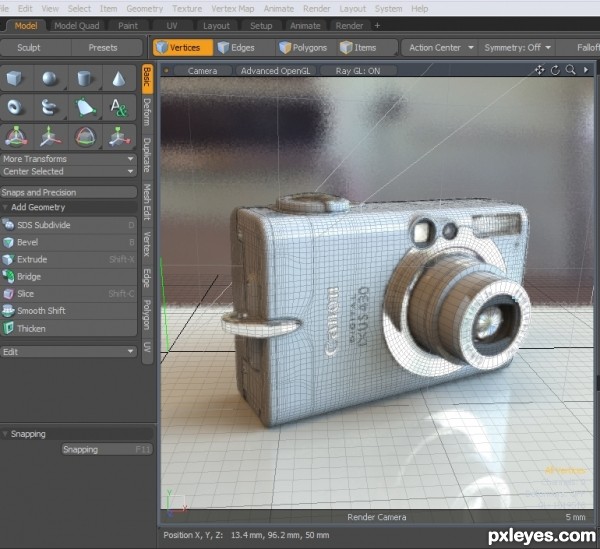

Ray GL preview of the final render…..

Creation of Digital 430: Step 14

Final result

Creation of Digital 430: Final Result
