A Work in Progress: Papa Uniform Five Five Yankee



This guide was made for entry:
Papa Uniform Five Five Yankee
In Contest:
tutorial 3D


step 1 of 6

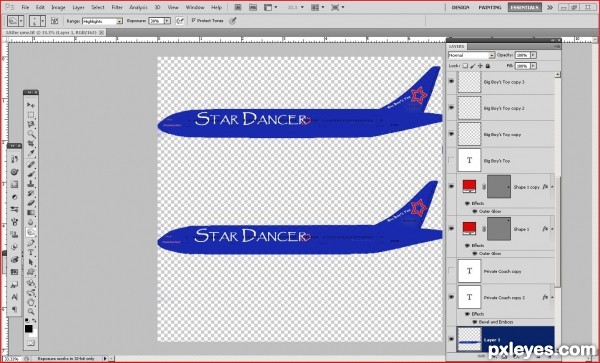

Texture map made with CS5, used with unwrap UVW modifier

Creation of Papa Uniform Five Five Yankee: Step 1

step 2 of 6

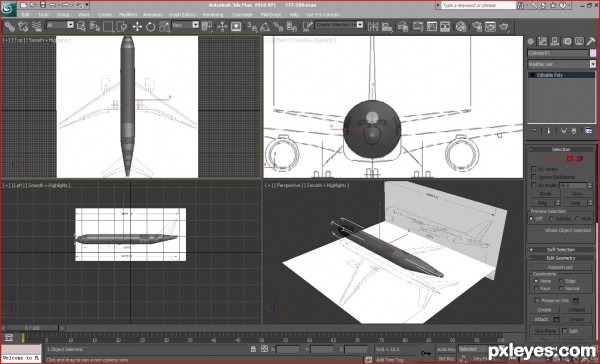

Fuselage modeling. Cylinder with end poly's removed. Borders manipulated and turbo smooth mod applied.

Creation of Papa Uniform Five Five Yankee: Step 2

step 3 of 6

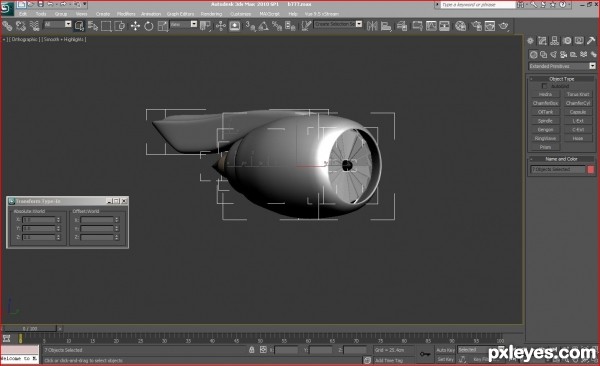

Working on engine. Cylinder geometry with same type modifications as in fuselage.

Creation of Papa Uniform Five Five Yankee: Step 3

step 4 of 6

Wings and Horizontal Stabilizer on the A/C the wings were made using a line with extrude modifier and some edge connecting (PINCH AND SLIDE)Turbosmoothed

Creation of Papa Uniform Five Five Yankee: Step 4

step 5 of 6

one of the unwrap UVW map's

Creation of Papa Uniform Five Five Yankee: Step 5

step 6 of 6

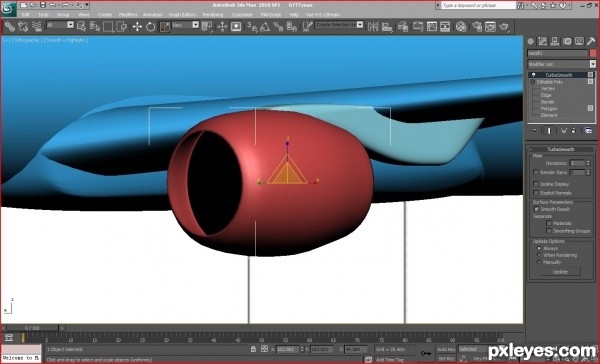

The engine assembly. The engine mount is a box geometry shaped using corrections to its vertices. This shape was cloned and re-sized for use as the actuators for the control surfaces. (under wings)

Creation of Papa Uniform Five Five Yankee: Step 6

Final result

Creation of Papa Uniform Five Five Yankee: Final Result
