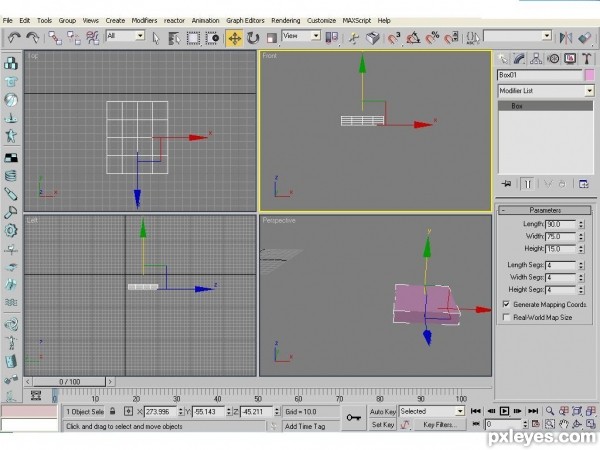

create>standard premitives>box, by using these parameters.
step 1 of 15
step 2 of 15

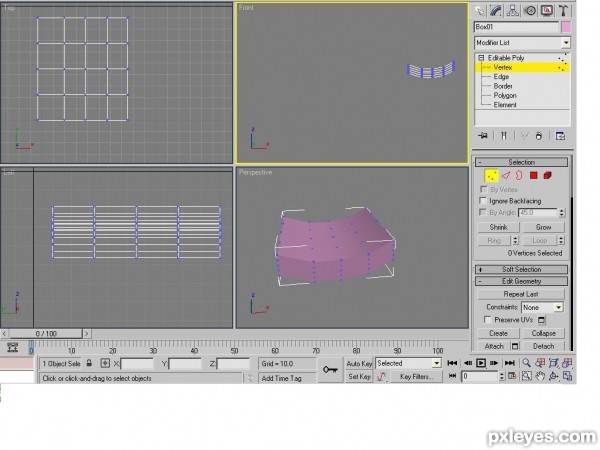

contvert it into poly adjust vertexes according image
step 3 of 15
goto polygon then extrude front polygon and adjust vertexes.
step 4 of 15

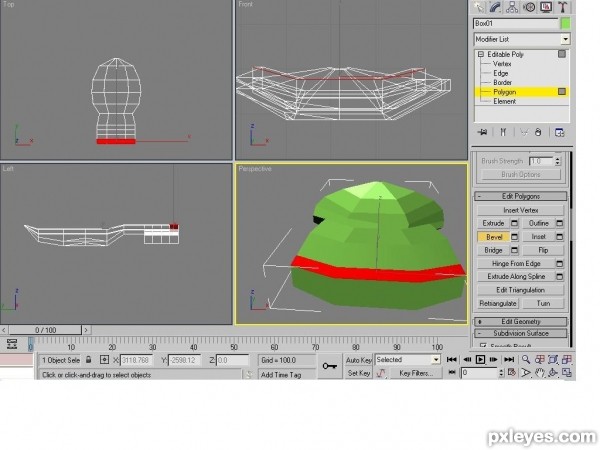

select polygon of backside according pic. then bevel them.
step 5 of 15

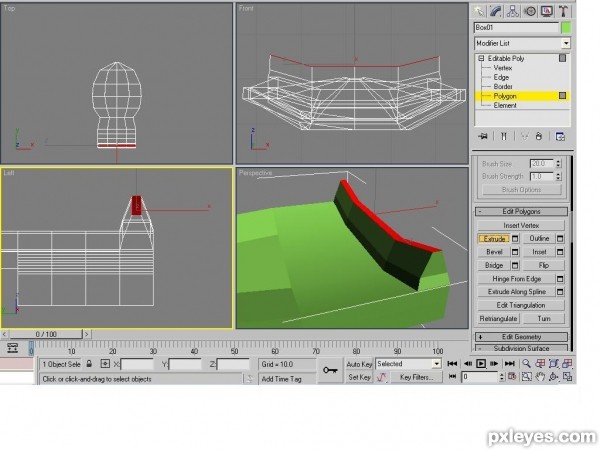

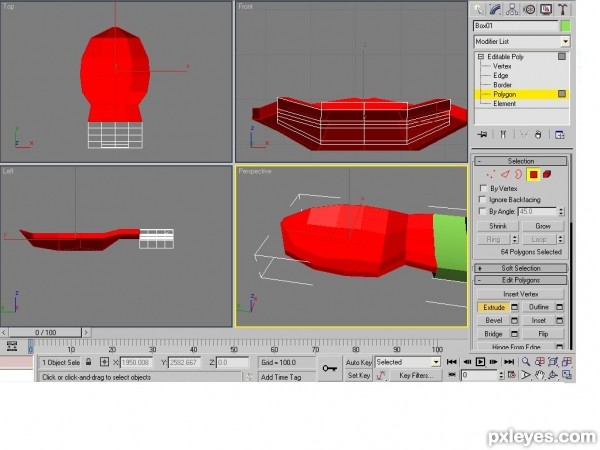

after bevel ,extrude same polygonsl
step 6 of 15
adjust vertexes then again 2 more extrude adjust vertexes according pic.
step 7 of 15

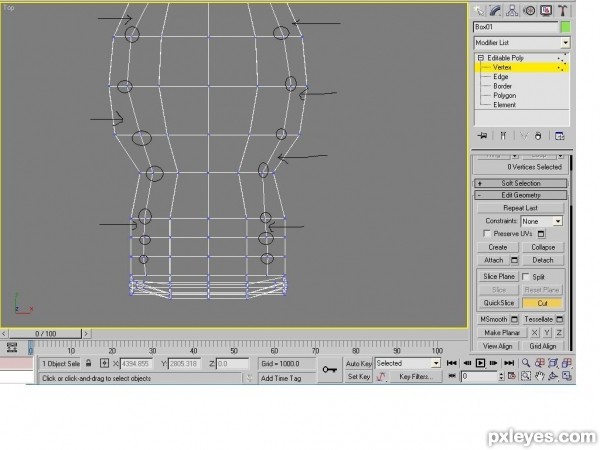

for side portion,goto vertexe>edit geometry>cut to add more vertexes.
step 8 of 15
these new polygon made by cut.
step 9 of 15

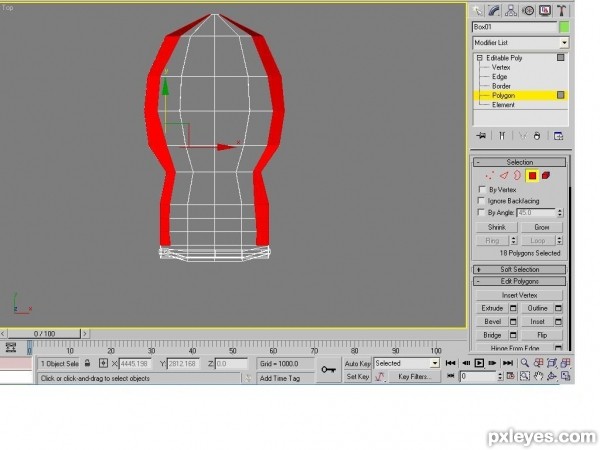

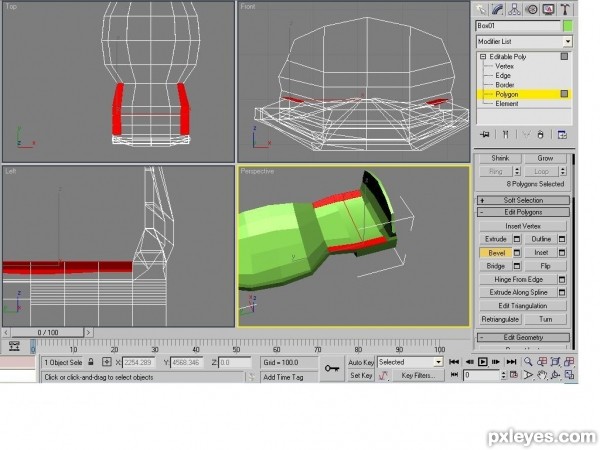

now select these side polygons and bevel them.
step 10 of 15
after that extrude 3 times and ajdust vertexes.
step 11 of 15

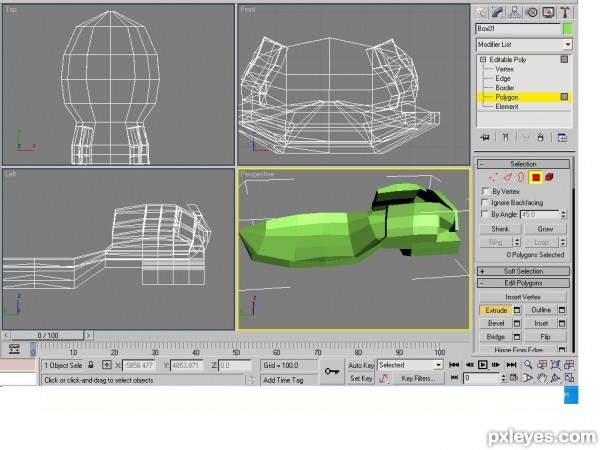

select front-side polygons then bevel and exturde 3 times.(level them according back extrudes)
step 12 of 15
select left inner polygons of last frontside extrude then again extrude 3 times , do same right side for close upper portion,adjust vertexes.
step 13 of 15
after that goto modifier and use mesh smooth.
step 14 of 15

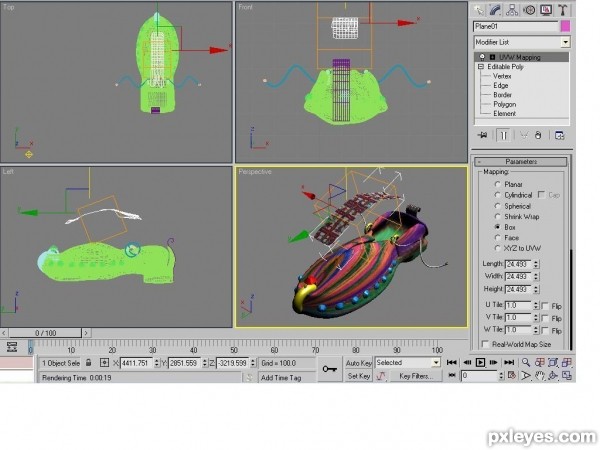

To decorate footewear use cylinder then bend it ,add torus and chamfercyl.After that add material on it
step 15 of 15
sources used for this step:Final result
