A Work in Progress: Robot Butterfly



This guide was made for entry:
Robot Butterfly
In Contest:
butterfly


step 1 of 8

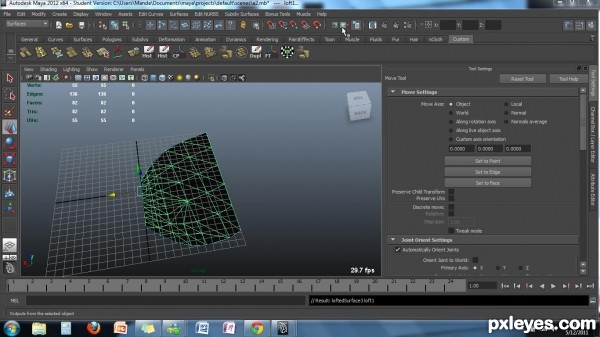

Wings were created by lofting a polygon between two curves. The wings were then modified and shaped using vertices.

Creation of Robot Butterfly: Step 1

step 2 of 8

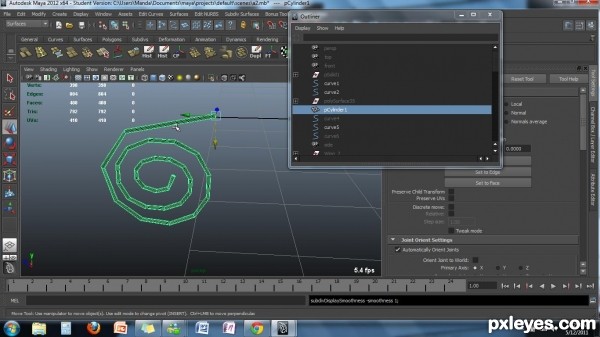

Proboscus created by extruding a cylinder along a curve.

Creation of Robot Butterfly: Step 2

step 3 of 8

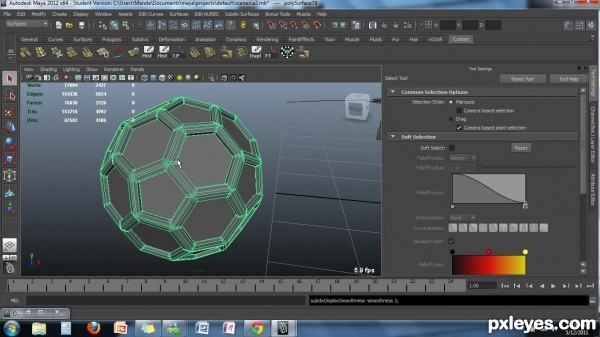

The eye casing was created by creating a Soccerball shape. This shape was then extruded to create the ridges.

Creation of Robot Butterfly: Step 3

step 4 of 8

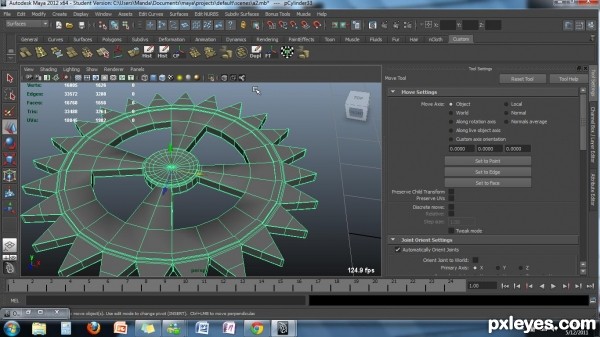

The cog is a 20 sided cylinder. The outer spikes were created using an extrude with an X scale of 0.

It was then shaped with extrude and faces were deleted to create holes.

Creation of Robot Butterfly: Step 4

step 5 of 8

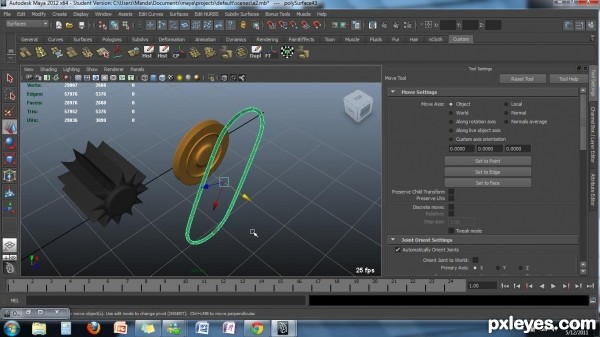

The pulley is a extruded cylinder. The belt is a deformed pipe and the cog is a 20 sided cylinder that has been extruded.

Creation of Robot Butterfly: Step 5

step 6 of 8

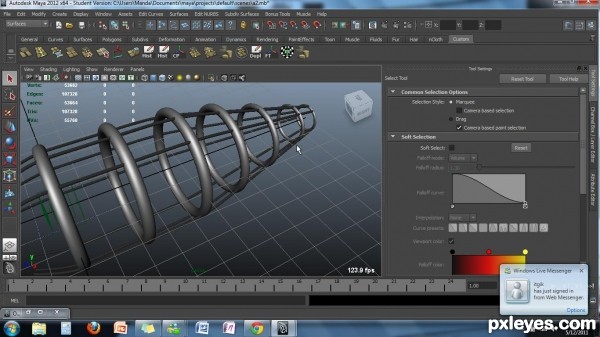

The body of the butterfly is 2 deformed spheres put together. Following this the tail rings are toruses and the rods are cylinders.

Creation of Robot Butterfly: Step 6

step 7 of 8

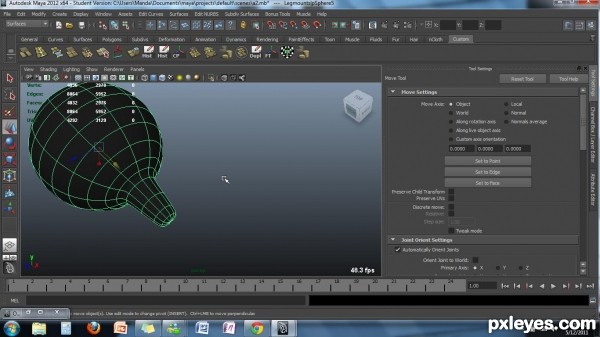

The leg and antennae bases are spheres with a extruded cap.

Creation of Robot Butterfly: Step 7

step 8 of 8

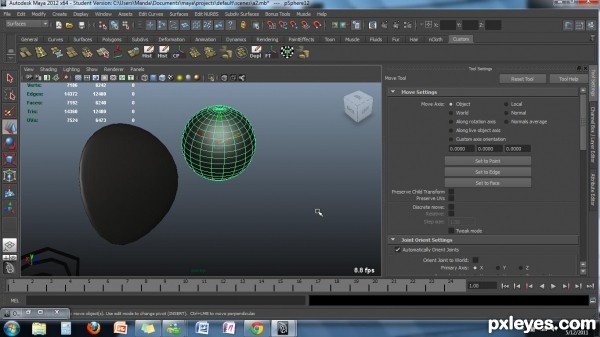

The eyes are a sphere and a polygon shaped base.

Creation of Robot Butterfly: Step 8

Final result

Creation of Robot Butterfly: Final Result
