A Work in Progress: Ice Planet Of Zentar Prime



This guide was made for entry:
Ice Planet Of Zentar Prime
In Contest:
space renders


step 1 of 82

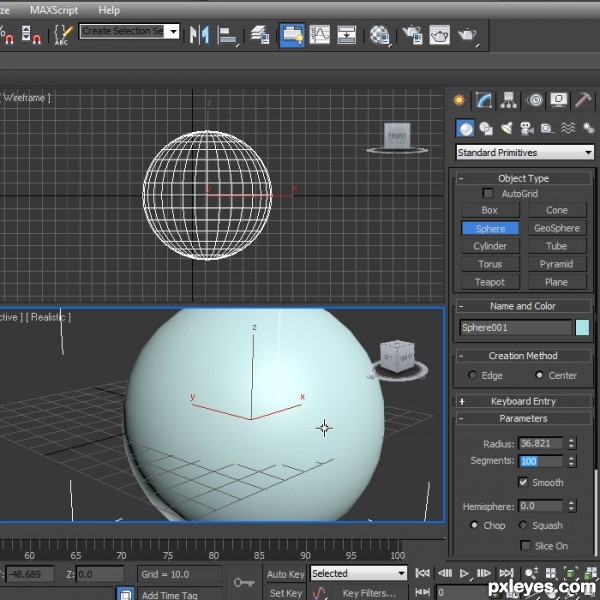

Start by creating a sphere with 100 segments. It can be any size, I made mine 36.

Creation of Ice Planet Of Zentar Prime: Step 1

step 2 of 82

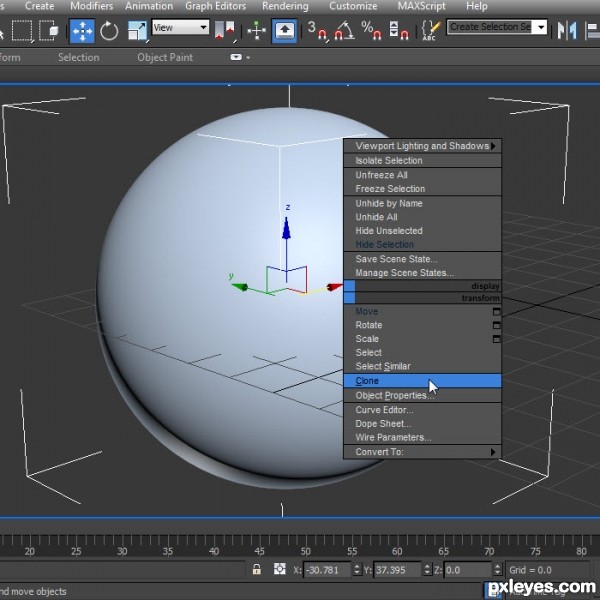

Next Right click your sphere and chose clone.

Creation of Ice Planet Of Zentar Prime: Step 2

step 3 of 82

Next select your scale command and Right Click on it.

This will open a new box with some sliders, move the offset world slider up a small amount.

Name this sphere clouds.

Creation of Ice Planet Of Zentar Prime: Step 3

step 4 of 82

Clone it again and repeat the same steps, name it atmosphere and re-size the third sphere.

Creation of Ice Planet Of Zentar Prime: Step 4

step 5 of 82

Now Save your scene in your model directory.

Creation of Ice Planet Of Zentar Prime: Step 5

step 6 of 82

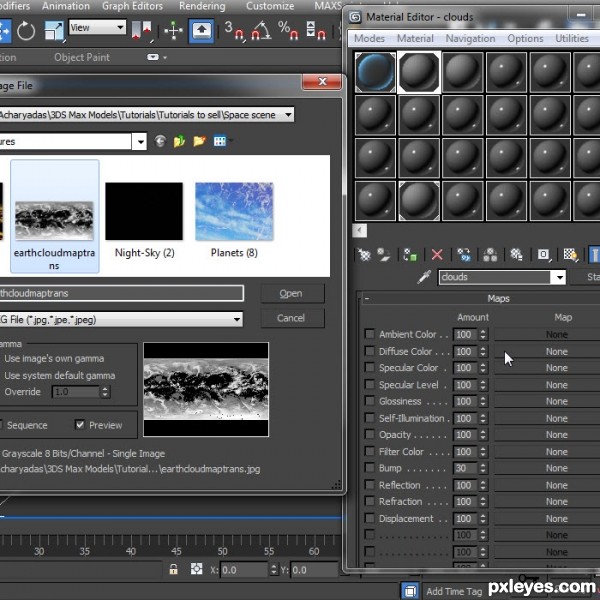

Next bring in your black and white cloud texture in to Photo shop. You can get the cloud texture here.

http://planetpixelemporium.com/earth.html

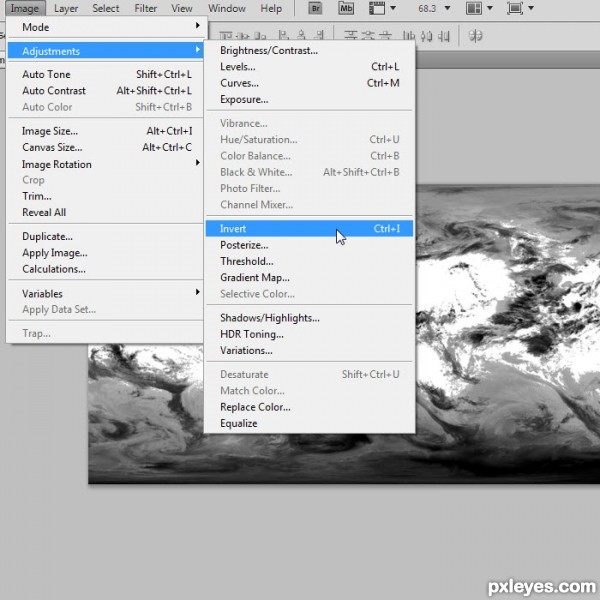

Next we want to invert it, so we can hold down Ctrl and then press I or go to Image then Adjustments and then Invert.

Next Save your image to the same file.

Creation of Ice Planet Of Zentar Prime: Step 6
sources used for this step:

step 7 of 82

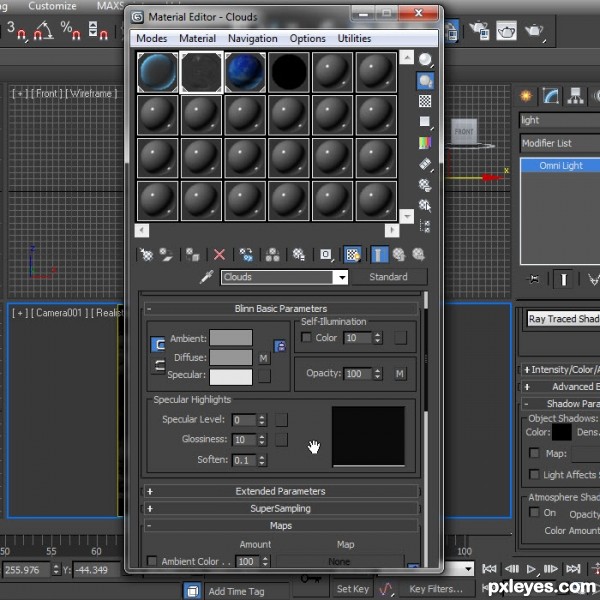

Next open up your materiel editor, it should be the icon up top with a sphere that is checkerboard.

Next change Blinn to Anisotropic, Specular level to 0, glossiness 0, anisotropy 50, orientation 0.

Creation of Ice Planet Of Zentar Prime: Step 7

step 8 of 82

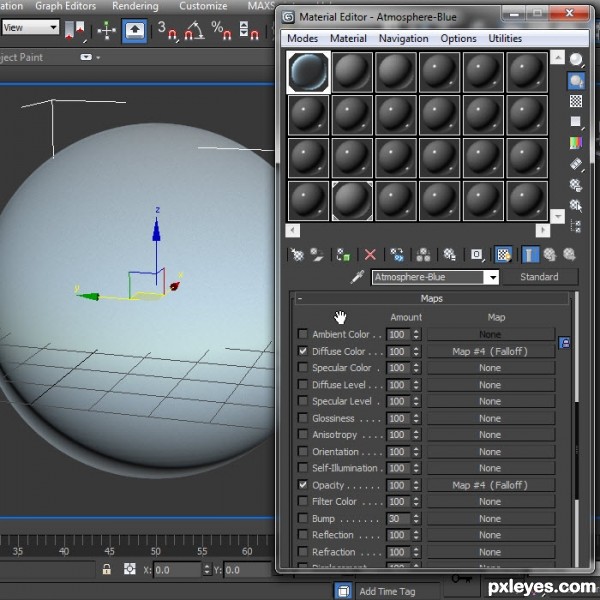

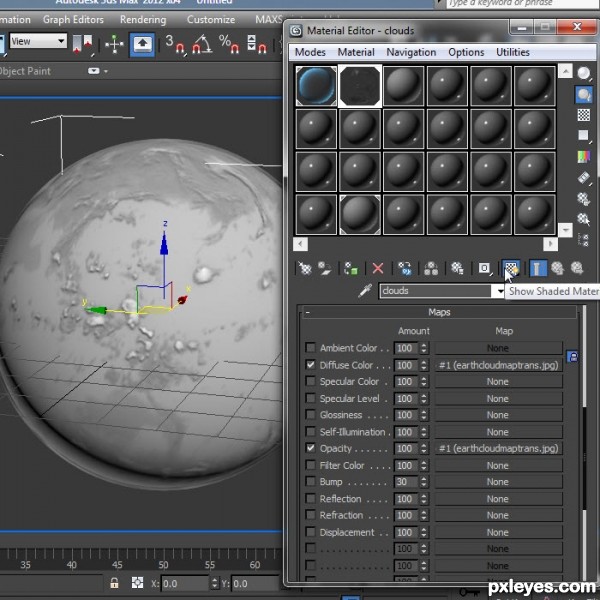

Next is to ad a falloff map in the diffuse and opacity map channels.

Do the diffuse channel first and then copy it to the opacity channel as an instance.

Creation of Ice Planet Of Zentar Prime: Step 8

step 9 of 82

Chose Perpendicular / Parallel as the falloff type. Then chose a light blue color for the bottom channel.

Creation of Ice Planet Of Zentar Prime: Step 9

step 10 of 82

Next apply it to the atmosphere sphere you created and then Right click on the sphere and chose Hide Selection.

Creation of Ice Planet Of Zentar Prime: Step 10

step 11 of 82

Next select a blank texture map and click on the diffuse map channel, next navigate to your texture directory where you saved your cloud texture you downloaded.

Pick this texture.

Creation of Ice Planet Of Zentar Prime: Step 11
sources used for this step:

step 12 of 82

Next copy the map into the opacity map channel as seen here and apply it to the sphere called clouds.

Creation of Ice Planet Of Zentar Prime: Step 12

step 13 of 82

Next Right click on the cloud sphere and chose Hide Selection once again.

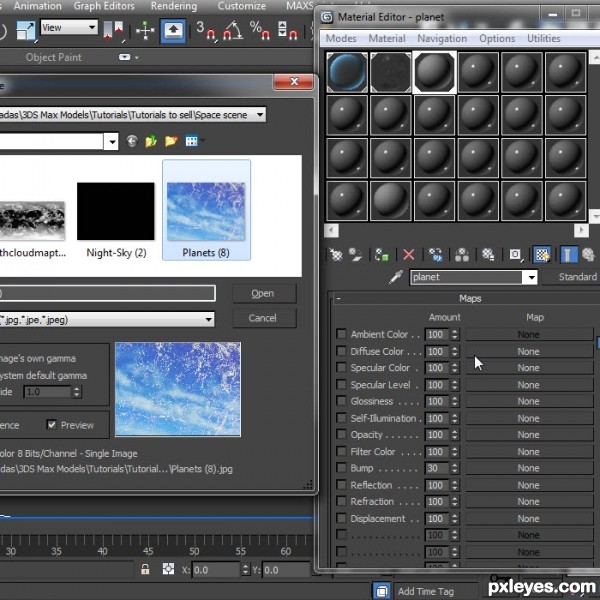

Next sphere we are going to apply a planet texture. You can use any type of planet texture you like, this is the planet texture I used.

http://my3dtextures.com/gallery/Sky/Planets/images/Planets%20%288%29.jpg

Creation of Ice Planet Of Zentar Prime: Step 13
sources used for this step:

step 14 of 82

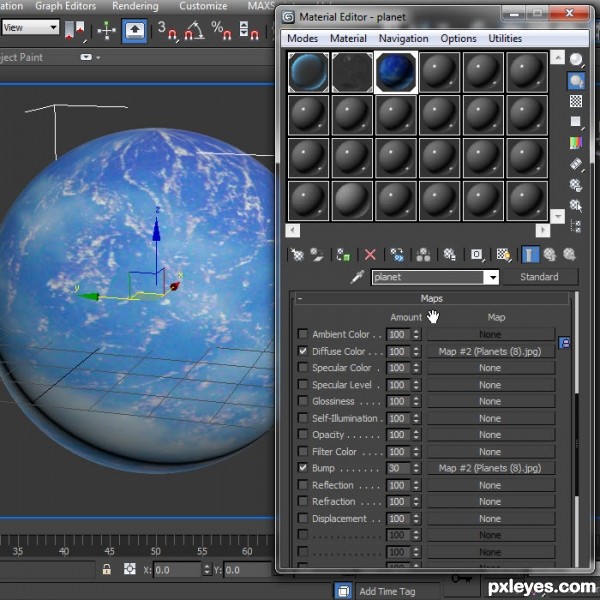

In the map channels I made a copy of the planet texture and placed it in the bump channel.

Creation of Ice Planet Of Zentar Prime: Step 14

step 15 of 82

If we do a render now we should get something like this.

Creation of Ice Planet Of Zentar Prime: Step 15

step 16 of 82

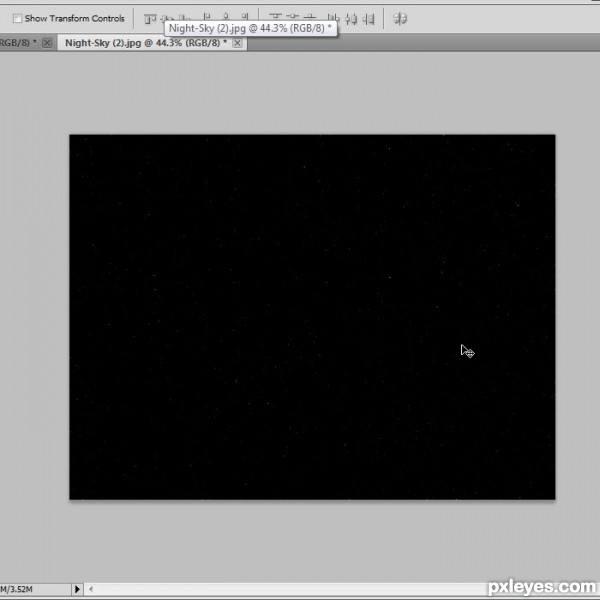

Next we want to create the outer space, we will use a texture for this.

You can get the texture I used from here.

http://my3dtextures.com/gallery/Sky/Night-Sky/images/Night-Sky%20%282%29.jpg

Place this texture into a blank texture sphere in the diffuse channel.

Creation of Ice Planet Of Zentar Prime: Step 16
sources used for this step:

step 17 of 82

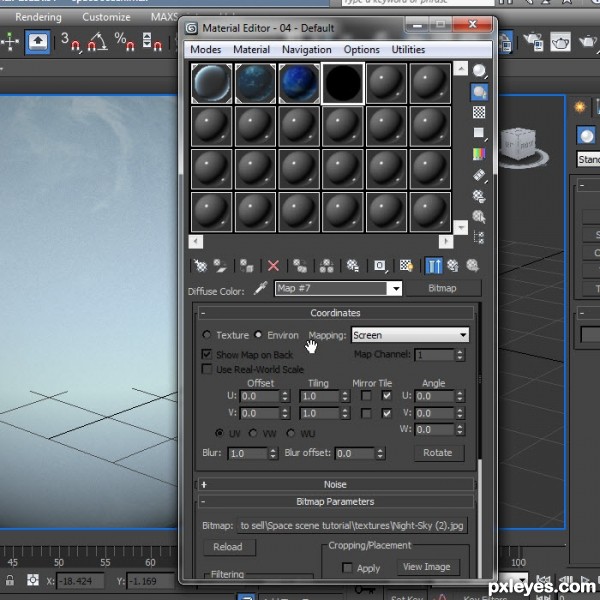

Next change it to Environ in the diffuse map settings.

Creation of Ice Planet Of Zentar Prime: Step 17

step 18 of 82

Next open your Render Setup box. I am using Mental Ray Renderer that comes standard with 3DS Max. However you can use almost any renderer and get the same results.

We want to increase the width and height to match the dimensions of the stary texture map we just downloaded and set as our environment map.

I also like to use Force 2-Sided

Creation of Ice Planet Of Zentar Prime: Step 18

step 19 of 82

Next to get an accurate view of what will be rendered in our scene, Right click on your perspective letters in the top left and chose Show Safe Frames.

Creation of Ice Planet Of Zentar Prime: Step 19

step 20 of 82

Next click on Rendering then on Environment.

Creation of Ice Planet Of Zentar Prime: Step 20

step 21 of 82

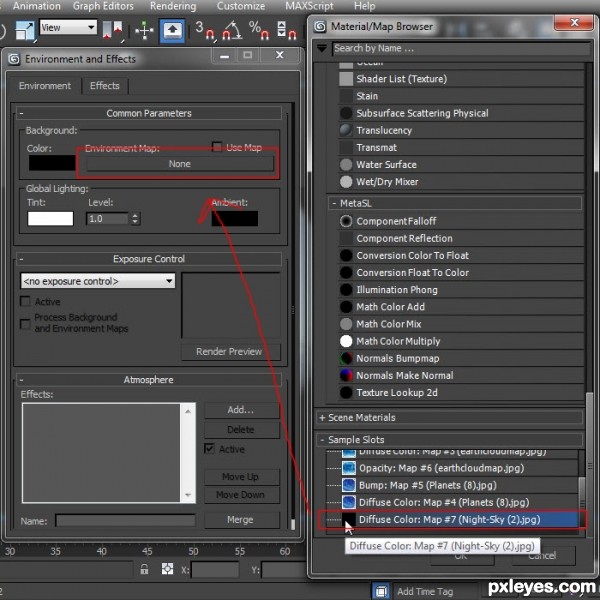

Next drag and drop the night sky (2) texture you have into the Environment Map channel in your Environment box as seen here.

Creation of Ice Planet Of Zentar Prime: Step 21

step 22 of 82

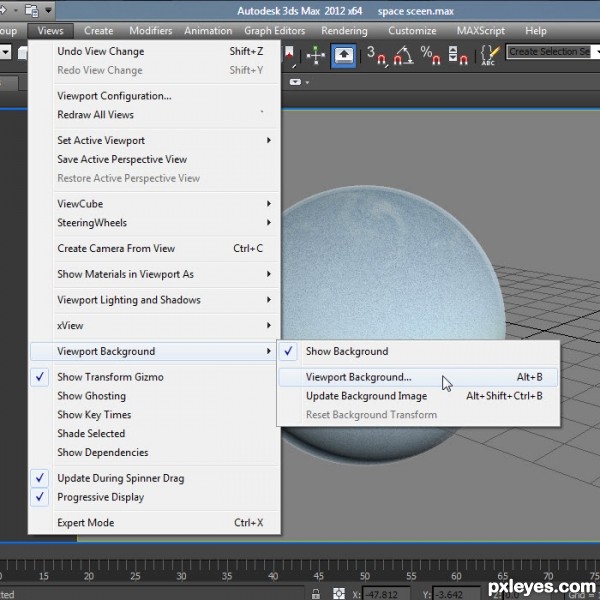

Next click on Views then Viewport Background and then check mark Show Background.

Repeat steps and next chose Viewport Background.

Creation of Ice Planet Of Zentar Prime: Step 22

step 23 of 82

Next check mark Use Environment Background and also Display Background.

Creation of Ice Planet Of Zentar Prime: Step 23

step 24 of 82

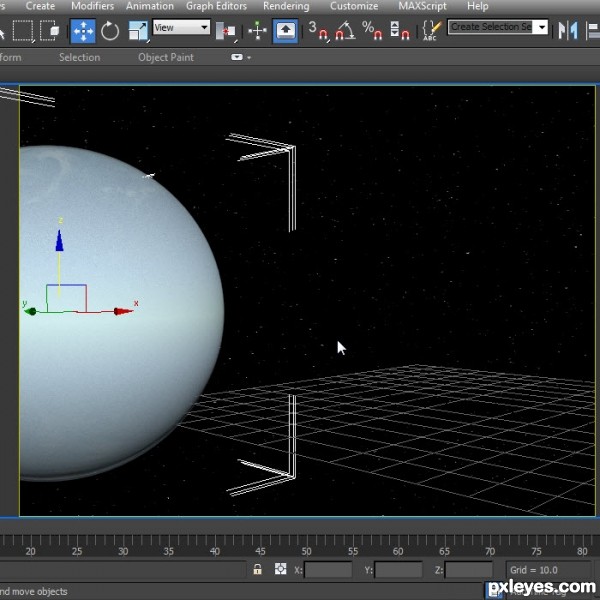

We should now have something like this in our viewport.

Select your planet and move it to the left as seen here.

Creation of Ice Planet Of Zentar Prime: Step 24

step 25 of 82

One more step we need to do in our material editor, select your cloud texture and increase Self-Illumination to 10.

Creation of Ice Planet Of Zentar Prime: Step 25

step 26 of 82

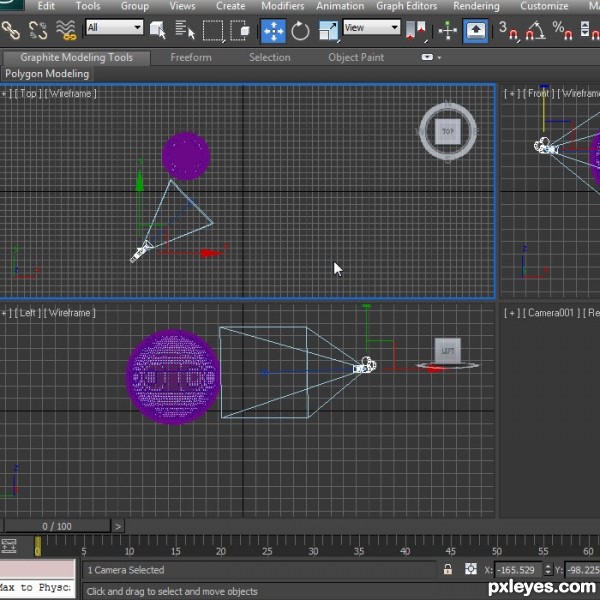

Create a camera in your scene or click on your perspective viewport and press Ctrl + C to create a camera at that view.

Creation of Ice Planet Of Zentar Prime: Step 26

step 27 of 82

Next click on your light tab and select Omni as your light type.

Creation of Ice Planet Of Zentar Prime: Step 27

step 28 of 82

Place a light in your scene like this. Name it Sun.

Creation of Ice Planet Of Zentar Prime: Step 28

step 29 of 82

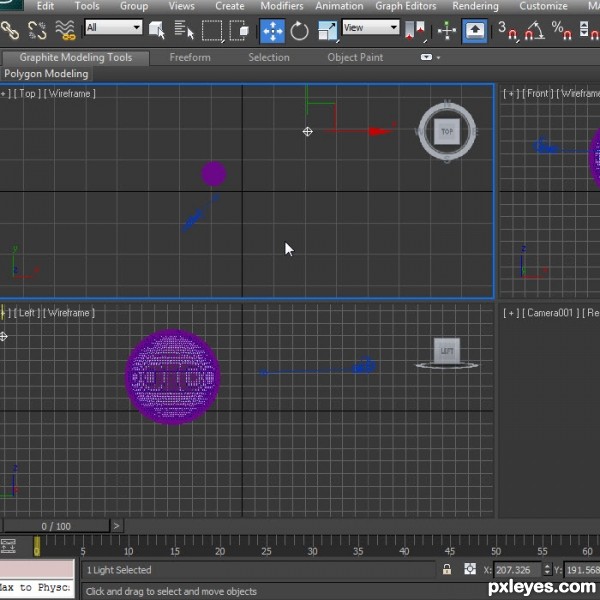

Next copy the light and move it so that it lights up the planet a bit more, we want to give the appearance that the sun is lighting up half of the planet.

Creation of Ice Planet Of Zentar Prime: Step 29

step 30 of 82

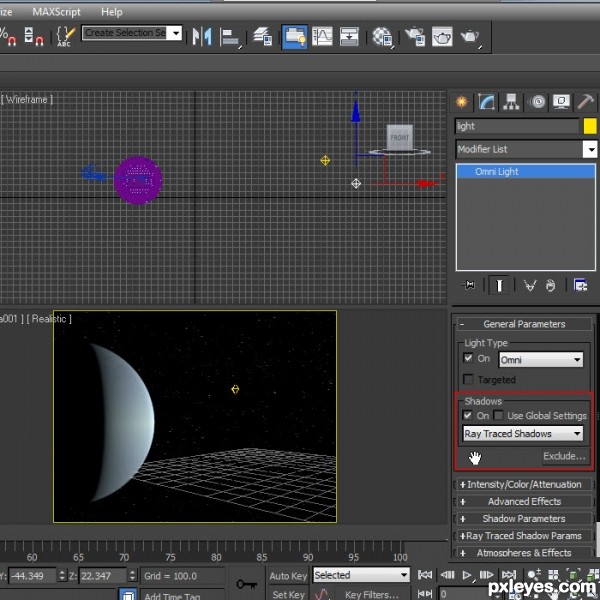

Make this light give a shadow to the planet.

Creation of Ice Planet Of Zentar Prime: Step 30

step 31 of 82

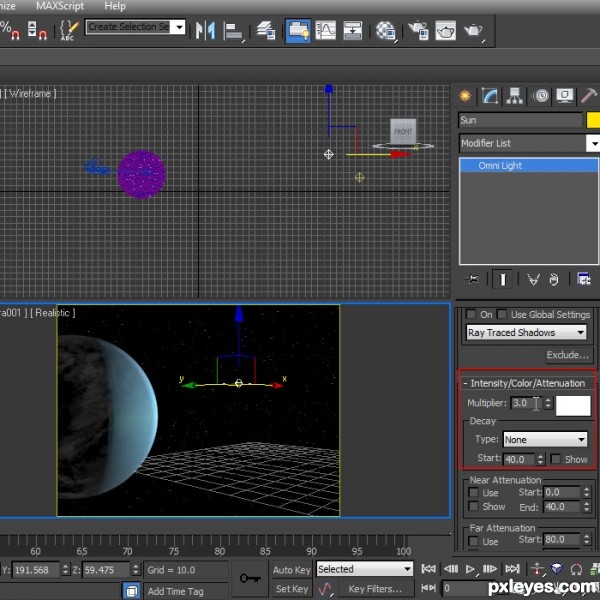

Increase the Sun light Multiplier to 3.0

Creation of Ice Planet Of Zentar Prime: Step 31

step 32 of 82

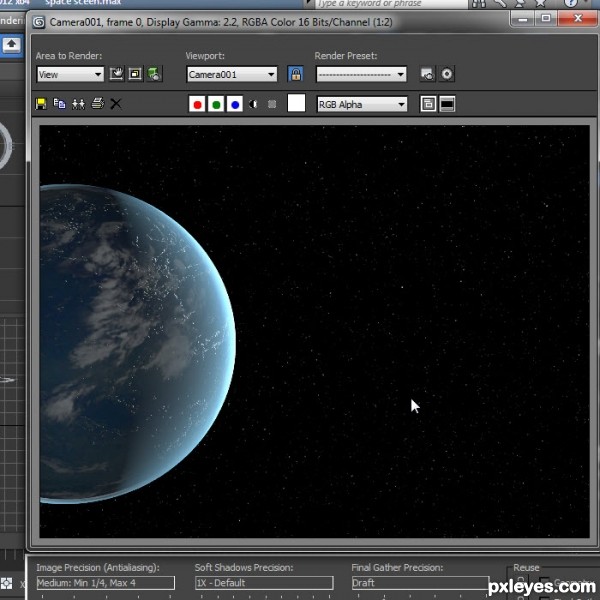

Do a test render and we should get something like this.

Creation of Ice Planet Of Zentar Prime: Step 32

step 33 of 82

Next create a plane that is square and centered on your planet. This will be our planet rings.

Creation of Ice Planet Of Zentar Prime: Step 33

step 34 of 82

Scale it up if the plane is to small.

Creation of Ice Planet Of Zentar Prime: Step 34

step 35 of 82

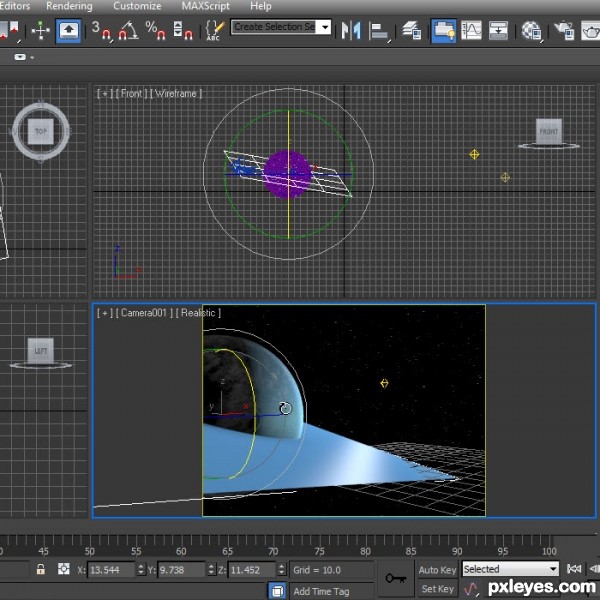

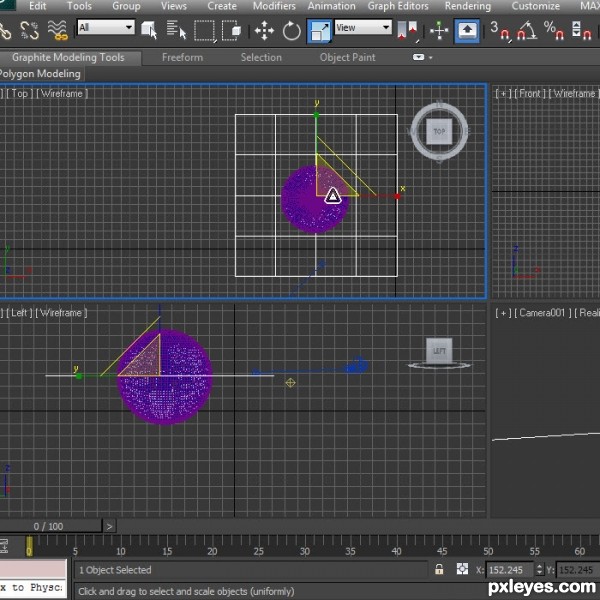

Next rotate the plane so it looks like a set of planet rings on an axes.

Creation of Ice Planet Of Zentar Prime: Step 35

step 36 of 82

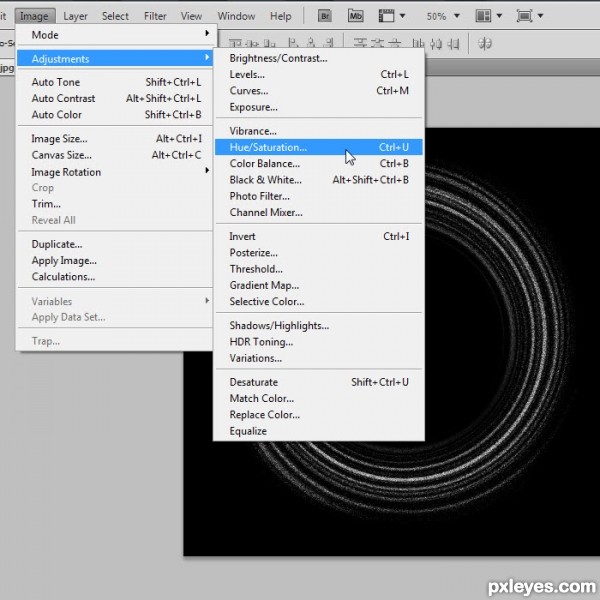

Next bring your planet rings texture into Photo shop and apply a Hue/Saturation filter to it.

You can find the ring texture here.

http://my3dtextures.com/gallery/Sky/Planets/images/Rings%20%287%29.jpg

In Photoshop go to Image, then Adjustments and then Hue/Saturation.

Creation of Ice Planet Of Zentar Prime: Step 36
sources used for this step:

step 37 of 82

Choose a light blue color for your planet rings or what ever color you like that matches your planet.

Creation of Ice Planet Of Zentar Prime: Step 37

step 38 of 82

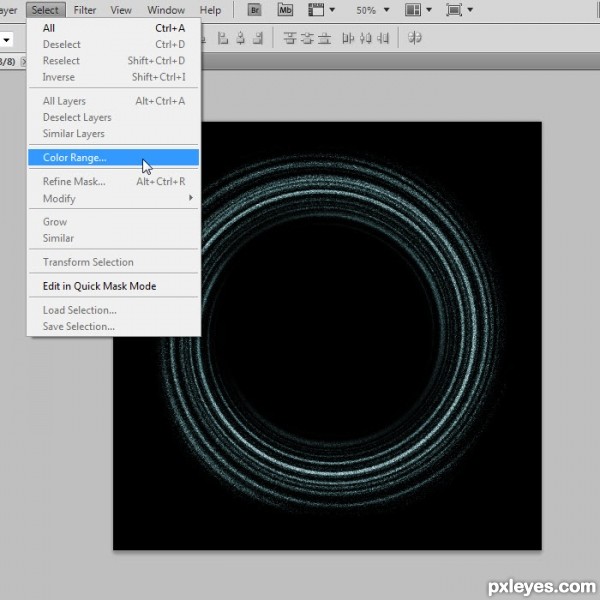

Next we need to make a mask of our texture, to do this click on Select then on Color Range.

Creation of Ice Planet Of Zentar Prime: Step 38

step 39 of 82

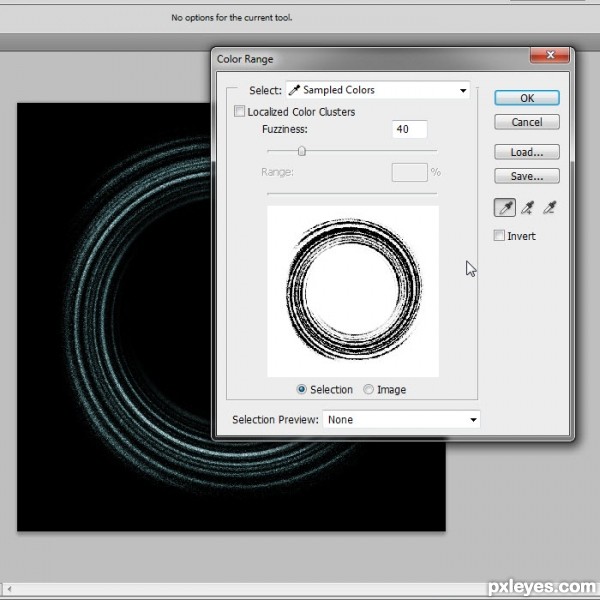

Next click on any black part of your image and set the Fuzziness to 40%

Creation of Ice Planet Of Zentar Prime: Step 39

step 40 of 82

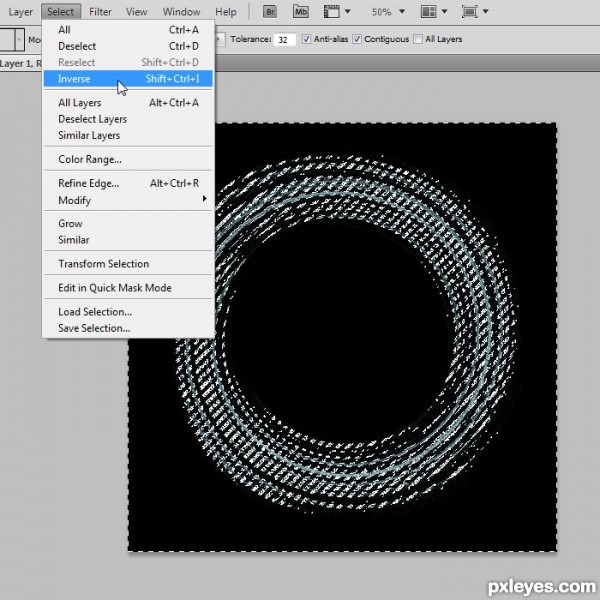

Next we need to invert our selection so click on Select and then Inverse.

Creation of Ice Planet Of Zentar Prime: Step 40

step 41 of 82

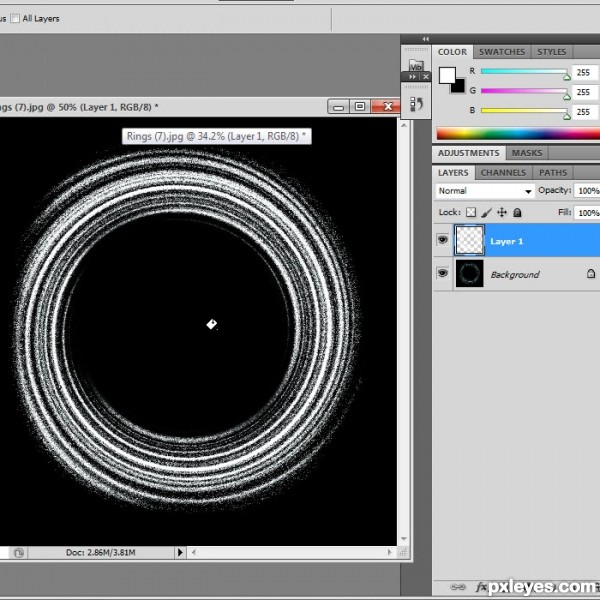

Next create a new layer and select your paint bucket, fill your new selection with white, this is your new mask.

Creation of Ice Planet Of Zentar Prime: Step 41

step 42 of 82

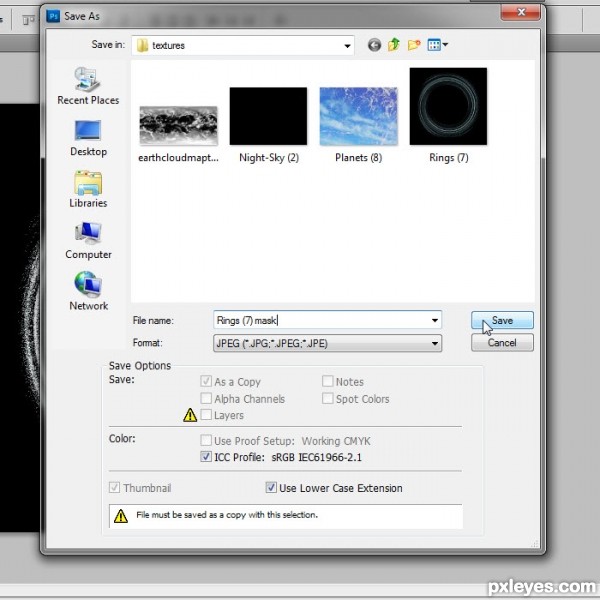

Save both files, first save your original texture by turning off the top mask layer.

Save as Rings (7).jpg and then save your Mask as Rings (7) mask.jpg


Creation of Ice Planet Of Zentar Prime: Step 42

step 43 of 82

in 3DS Max create a new texture and place the Ring texture in the diffuse mapping channel and the Mask texture in the opacity map channel.

Apply this texture to your plane that is around your planet. You can also copy the mask texture to your bump mapping channel and give it a setting of 100 so it gives the rings some depth.

Creation of Ice Planet Of Zentar Prime: Step 43

step 44 of 82

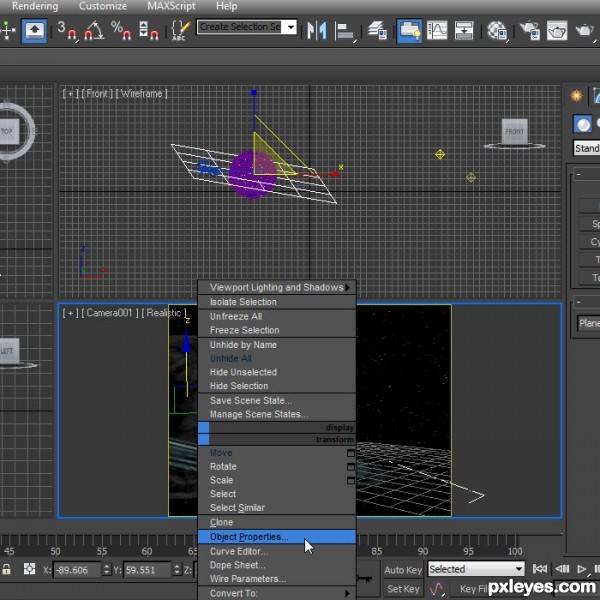

Next Right click on your planet rings and chose properties.

Creation of Ice Planet Of Zentar Prime: Step 44

step 45 of 82

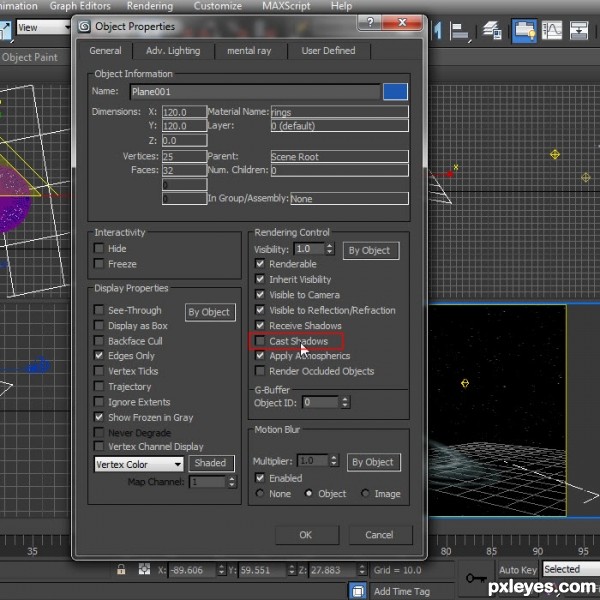

Un-check Cast Shadows, so your rings will not cast any shadows on to your planet.

Creation of Ice Planet Of Zentar Prime: Step 45

step 46 of 82

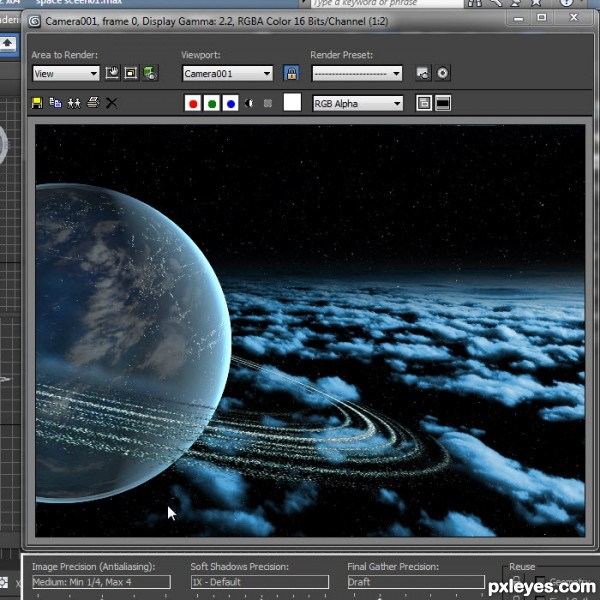

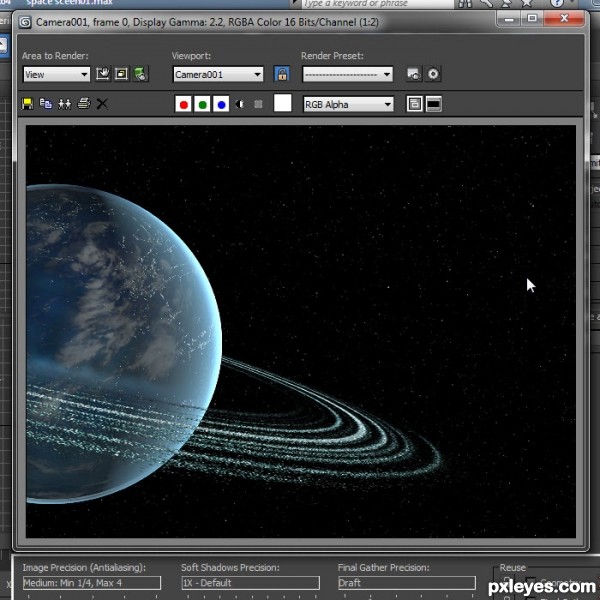

Next Render and we should have something like this.

Creation of Ice Planet Of Zentar Prime: Step 46

step 47 of 82

Next bring in this texture to Photo shop or any other cloud texture you like.

You can get this texture here.

http://www.morguefile.com/archive/display/746544

Creation of Ice Planet Of Zentar Prime: Step 47
sources used for this step:

step 48 of 82

Next bring in your star background you downloaded earlier that you are now using as the background of your scene.

Creation of Ice Planet Of Zentar Prime: Step 48

step 49 of 82

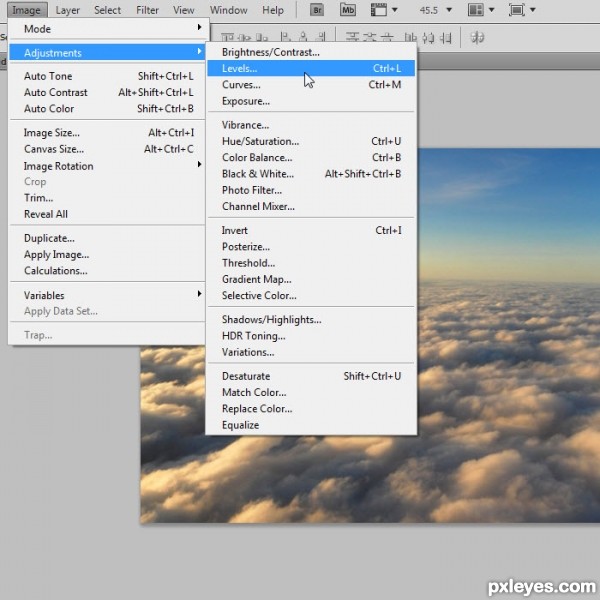

In Photo shop, select Adjustments then Levels.

Creation of Ice Planet Of Zentar Prime: Step 49

step 50 of 82

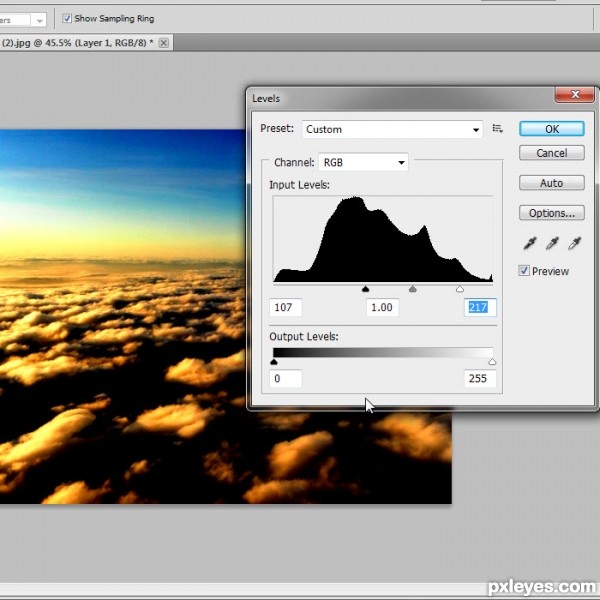

I used a setting of 107 on left 1.00 on middle and 217 on right.

Creation of Ice Planet Of Zentar Prime: Step 50

step 51 of 82

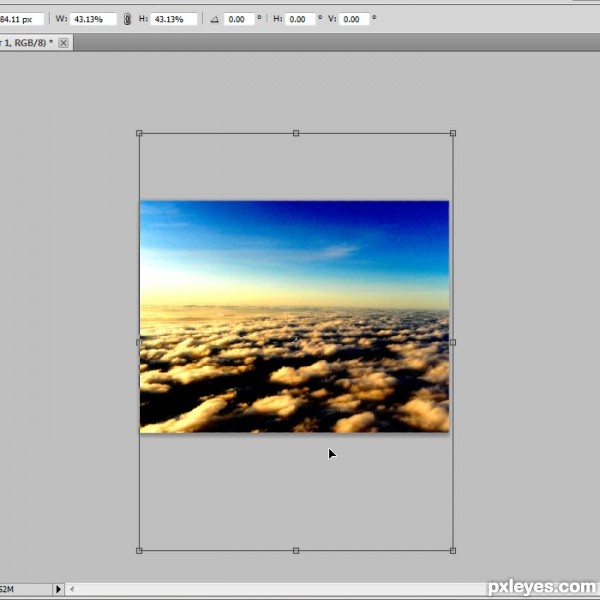

Next copy your new cloud texture onto your star background and if the image is to big, just re-size it so the image fits like this.

Creation of Ice Planet Of Zentar Prime: Step 51

step 52 of 82

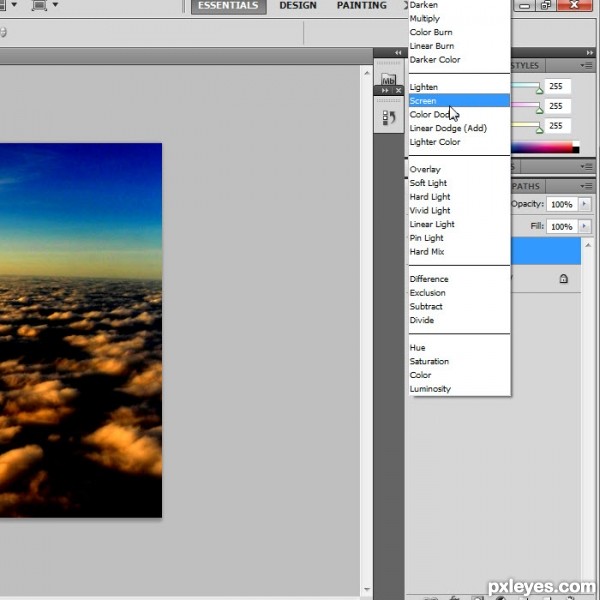

Set its blending mode to Screen.

Creation of Ice Planet Of Zentar Prime: Step 52

step 53 of 82

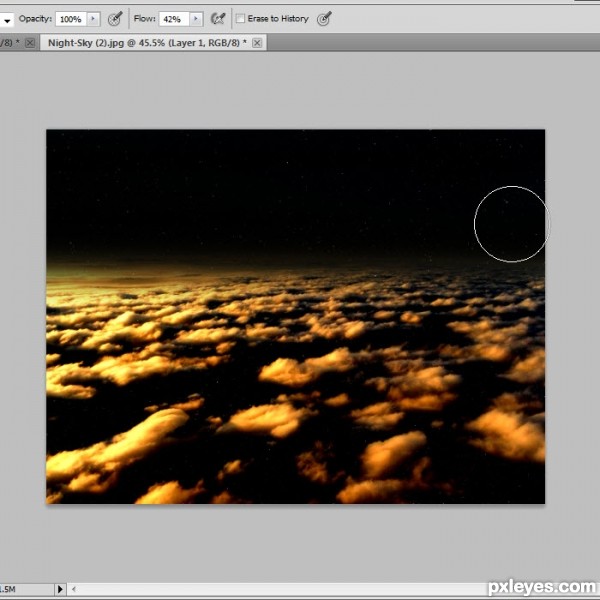

Next select a big eraser and start erasing away the top blue sky part, so you get something like this.

Creation of Ice Planet Of Zentar Prime: Step 53

step 54 of 82

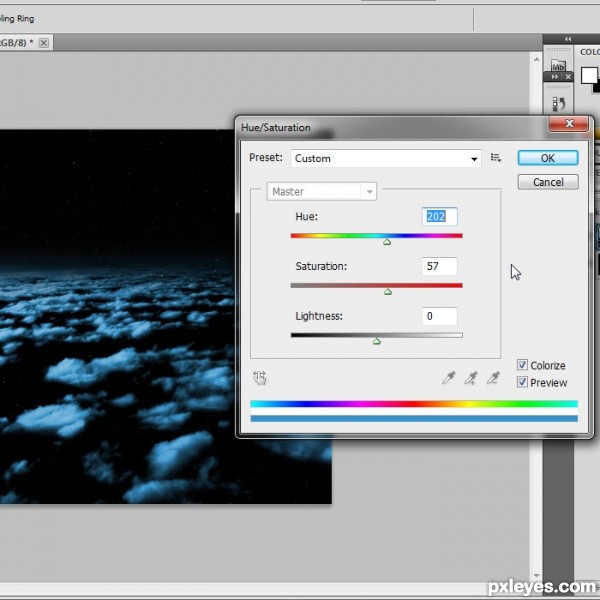

Next do a Hue/Saturation again as seen here.

Creation of Ice Planet Of Zentar Prime: Step 54

step 55 of 82

Choose a light blue like this.

Creation of Ice Planet Of Zentar Prime: Step 55

step 56 of 82

Next since our scene in 3DS Max is set so the sun is shining to the left, we need to flip our image around.

Do this in Edit, then Transform then Flip Horizontal.

Creation of Ice Planet Of Zentar Prime: Step 56

step 57 of 82

Now save your background as the same background file you have set in your scene. Night-Sky (2).jpg

Creation of Ice Planet Of Zentar Prime: Step 57

step 58 of 82

Next do a test Render and we should get something like this.

Creation of Ice Planet Of Zentar Prime: Step 58

step 59 of 82

For our first sun, select your Omni light labeled Sun and then click on Rendering and then Effects.

Creation of Ice Planet Of Zentar Prime: Step 59

step 60 of 82

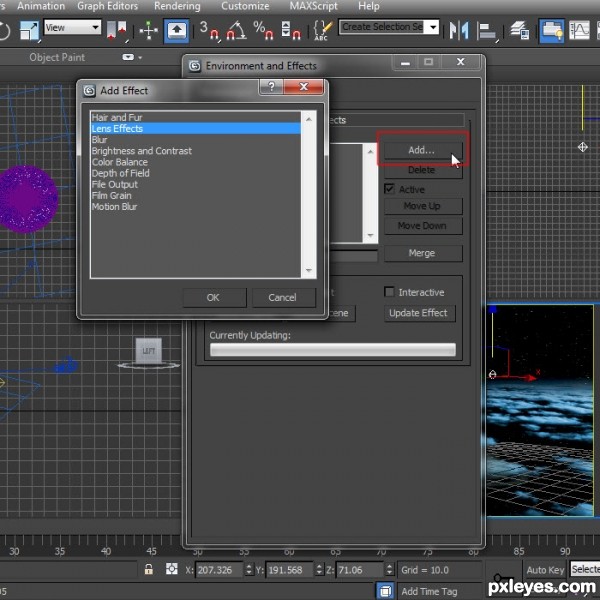

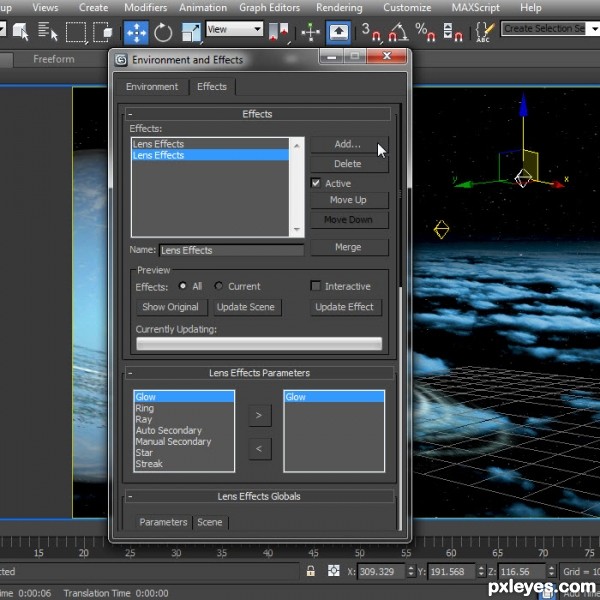

Next click on Add and then select Lens Effects.

Creation of Ice Planet Of Zentar Prime: Step 60

step 61 of 82

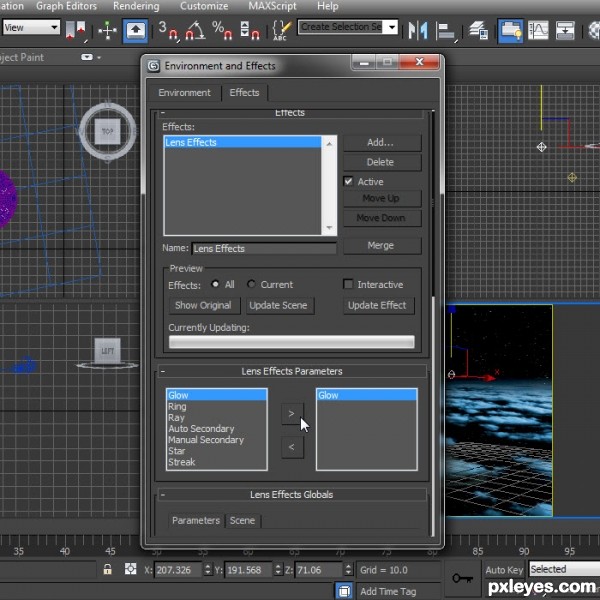

Next click Glow and then click the right arrow so we select glow, in or effects.

Creation of Ice Planet Of Zentar Prime: Step 61

step 62 of 82

These are the settings I used for my first sun.

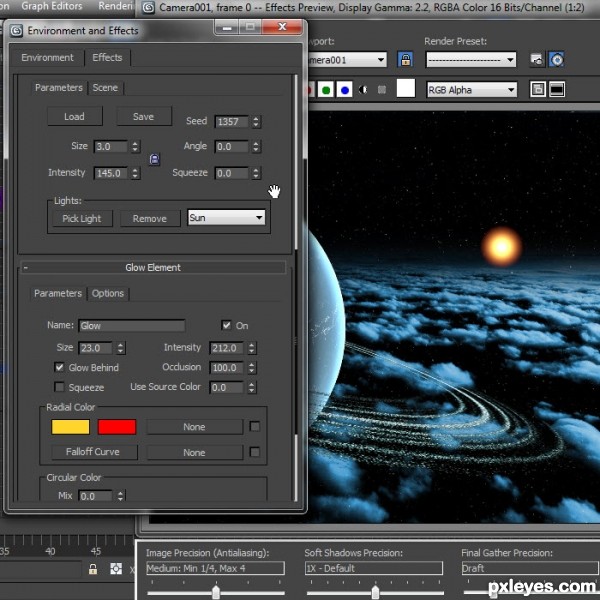

First set. Size 3.0 Intensity 145.0

Second set. Size 23.0 Intensity 212.0

colors yellow and red.

Creation of Ice Planet Of Zentar Prime: Step 62

step 63 of 82

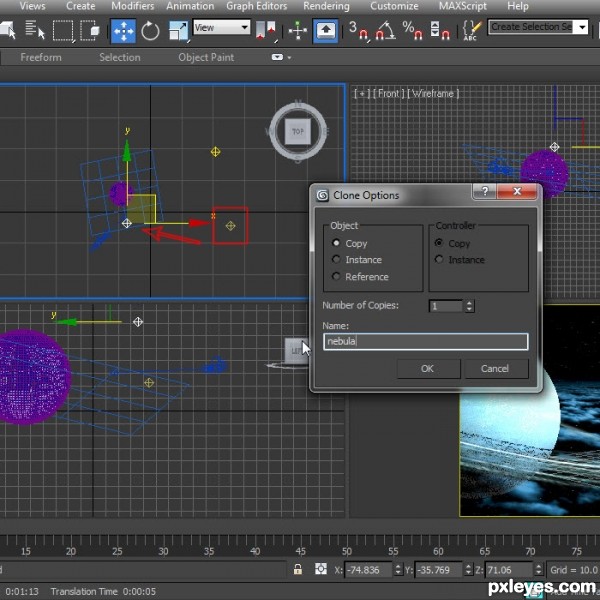

Next make a copy of one of your lights. Do not use a copy from the sun light.

Name this new copy Nebula and position it in front of your planet.

Creation of Ice Planet Of Zentar Prime: Step 63

step 64 of 82

Next click on Exclude in your light properties and select everything in your scene, then click on the double right arrows to move everything into the exclude area.

This will allow us to use the light with no light shining on any objects.

Creation of Ice Planet Of Zentar Prime: Step 64

step 65 of 82

Next click on rendering and then Video Post.

Creation of Ice Planet Of Zentar Prime: Step 65

step 66 of 82

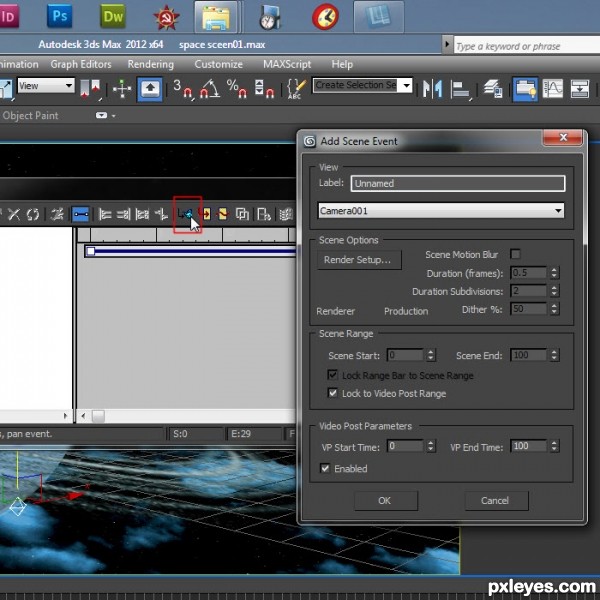

In video post click on Add Scene Event. That is the little blue teapot icon.

Creation of Ice Planet Of Zentar Prime: Step 66

step 67 of 82

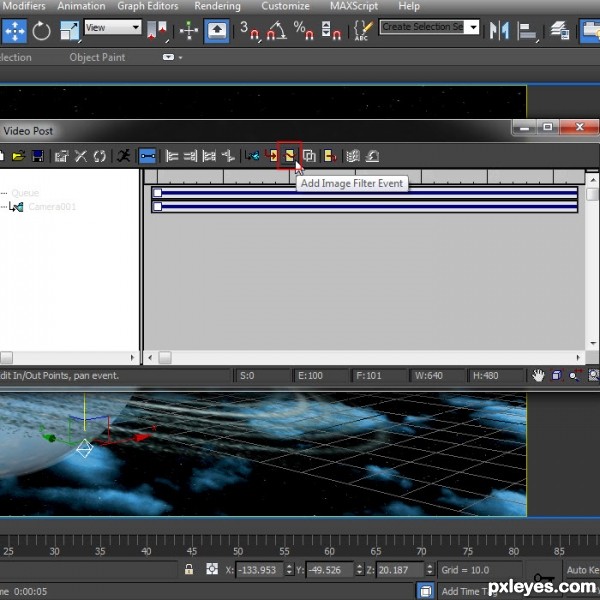

Next we need to add an Add Image Filter Event, to our scene.

Creation of Ice Planet Of Zentar Prime: Step 67

step 68 of 82

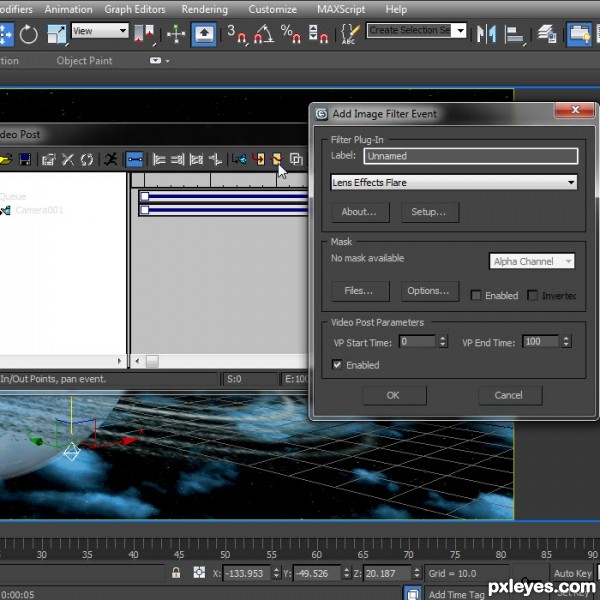

Chose Lens Effect Flare as the Filter Event.

Creation of Ice Planet Of Zentar Prime: Step 68

step 69 of 82

Close out your Lens Effects Flare filter and then double click on it to open it again. This time click on Setup.

Creation of Ice Planet Of Zentar Prime: Step 69

step 70 of 82

We should now have something like this displayed.

Creation of Ice Planet Of Zentar Prime: Step 70

step 71 of 82

Next click on Node Sources and then chose Nebula as the object.

Creation of Ice Planet Of Zentar Prime: Step 71

step 72 of 82

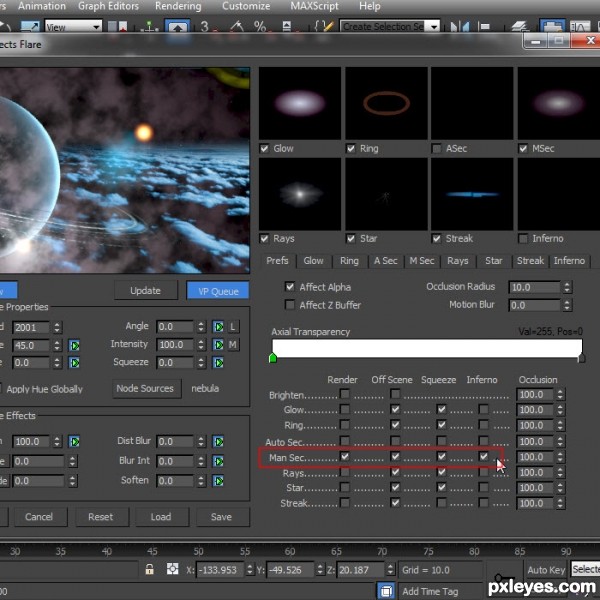

Next un-check all in render except Man Sec. This one you want to check an extra place in Inferno.

Creation of Ice Planet Of Zentar Prime: Step 72

step 73 of 82

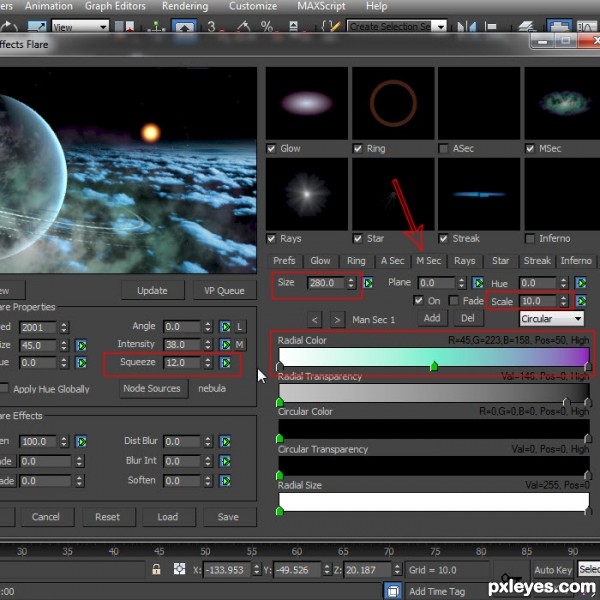

Set the size to 280.0 set the Scale to 10.0 Set squeeze to 12 and change the colors to something you like. I used a light green and purple.

Creation of Ice Planet Of Zentar Prime: Step 73

step 74 of 82

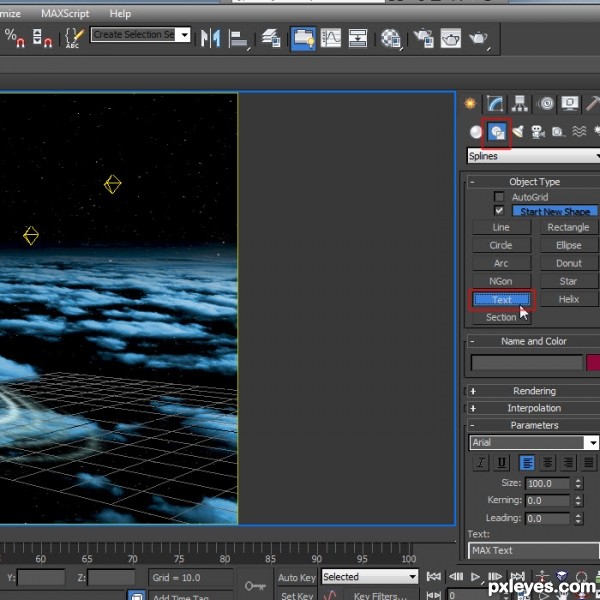

Next create a new light, place it near the sun light and name it Sun2.

Next go back into the effects panel. Rendering then effects and chose another Lens Effects, then Glow for your new sun.


Creation of Ice Planet Of Zentar Prime: Step 74

step 75 of 82

First settings are Size 2.0 Intensity 196.0

Second set. Size 13.0 Intensity 110.0

Colors are blue, light and darker.

Creation of Ice Planet Of Zentar Prime: Step 75

step 76 of 82

For text I used a spline in the shapes tab.

Creation of Ice Planet Of Zentar Prime: Step 76

step 77 of 82

Place it in your scene, in front of your camera.

Rotate it so it faces your view and then apply an Extrude modifier to it as seen here.

Creation of Ice Planet Of Zentar Prime: Step 77

step 78 of 82

For the text I used Andalus type face and the size I used was 7.35

Creation of Ice Planet Of Zentar Prime: Step 78

step 79 of 82

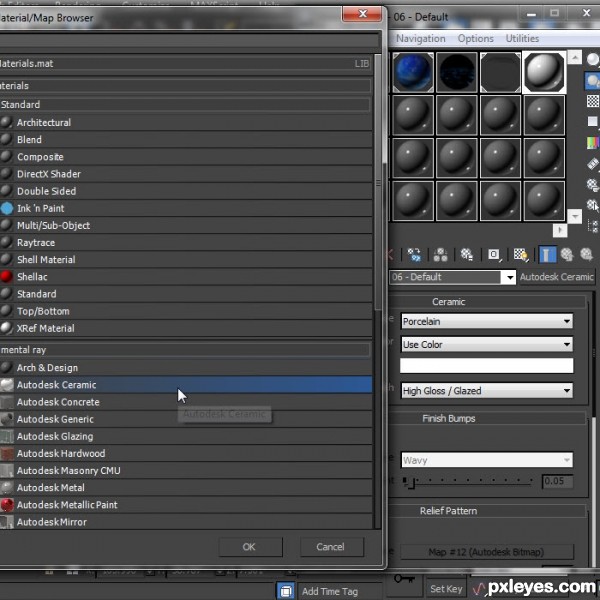

Texture your text any way you like. I am going to use a Ceramic texture standard with 3DS Max.

The text is optional. :)

Creation of Ice Planet Of Zentar Prime: Step 79

step 80 of 82

To render a final render of our scene we need to render from video post.

Creation of Ice Planet Of Zentar Prime: Step 80

step 81 of 82

Set the settings the same as in your regular render menu, width 1280 height 960. Set the time output to single and press Render.

Creation of Ice Planet Of Zentar Prime: Step 81

step 82 of 82

Final render.

Creation of Ice Planet Of Zentar Prime: Step 82

Final result

Creation of Ice Planet Of Zentar Prime: Final Result

LOGIN or REGISTER FOR FREE
to rate this guide and create your own guides.

Votes


uservoted
UglyBOB
Score:
10
