A Work in Progress: delux
Home
»
Guides
» delux
This guide was made for entry:
delux
In Contest:
your mouse

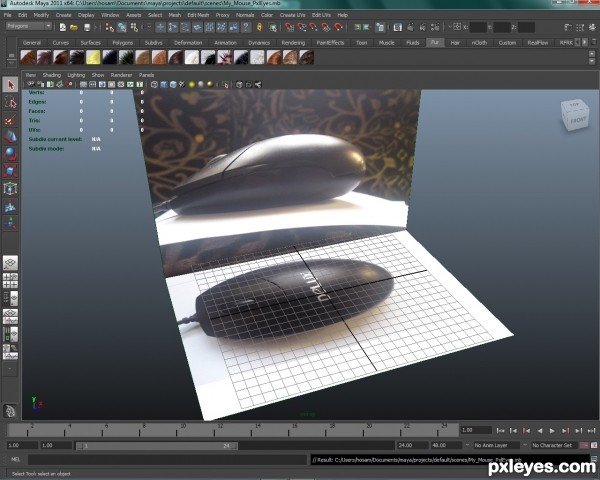

step 1 of 13
i took a sample not very images for my mouse on my desktop
step 2 of 13

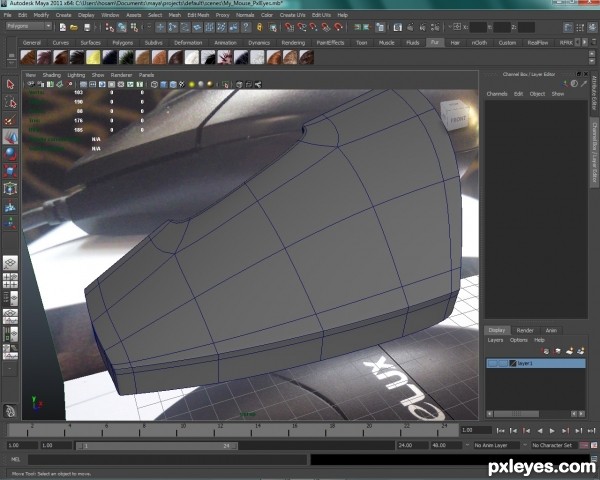

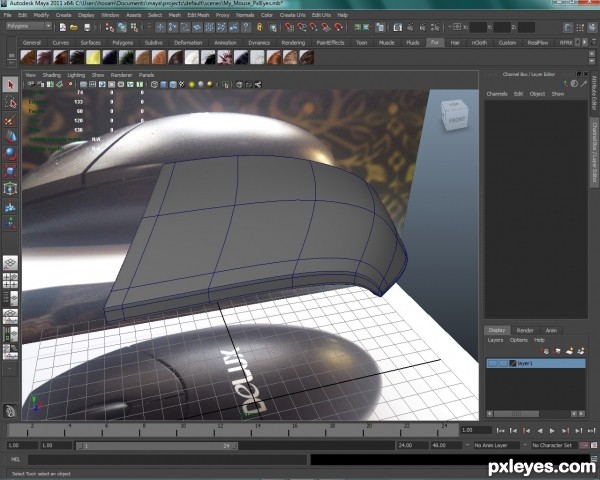

i created the LMB and RMB starting with a plane primitive
then a matched the images
step 3 of 13

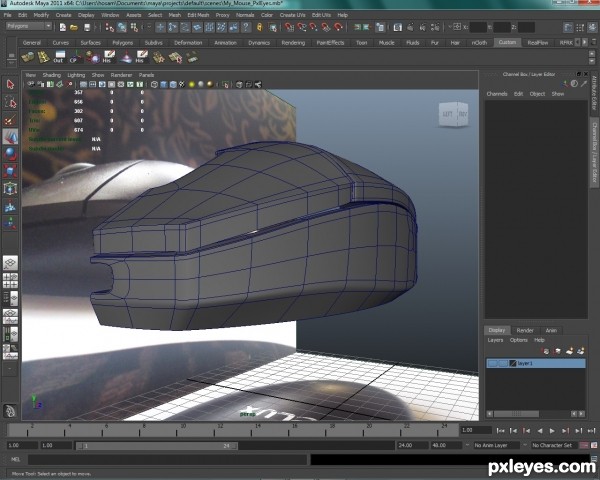

i created the body of the mouse the same way
step 4 of 13
then i created the lower Piece using nurbs for the side semi flat piece and polygon for the rest of it

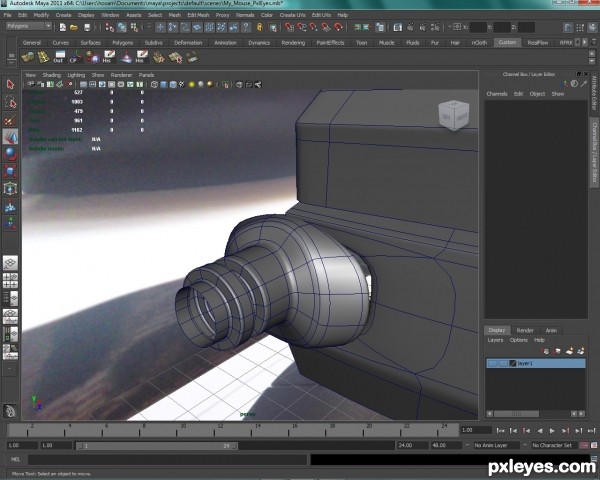

step 5 of 13
i created this piece using box for a start with some pushing and pulling then i attached a cylinder to it

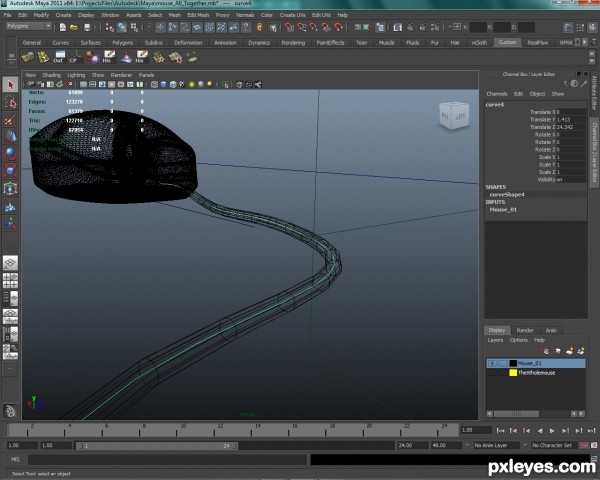

step 6 of 13
i created the wire by extruding face along a curve that you see in the image

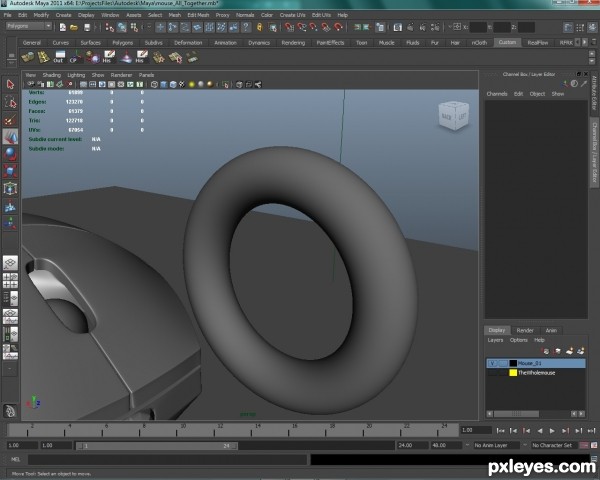

step 7 of 13
the MMB is just a tube
step 8 of 13
i created the back side of the mouse using face extruding in case i wanted to show it
step 9 of 13
i exported the model from maya as fbx the i import it to keyshot

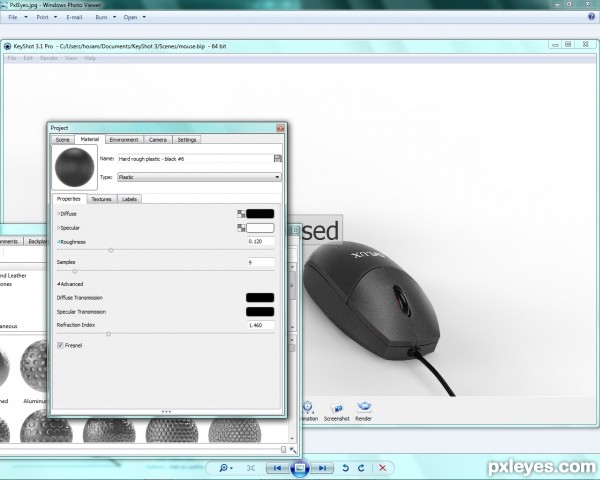

step 10 of 13
this is the plastic material for the mouse

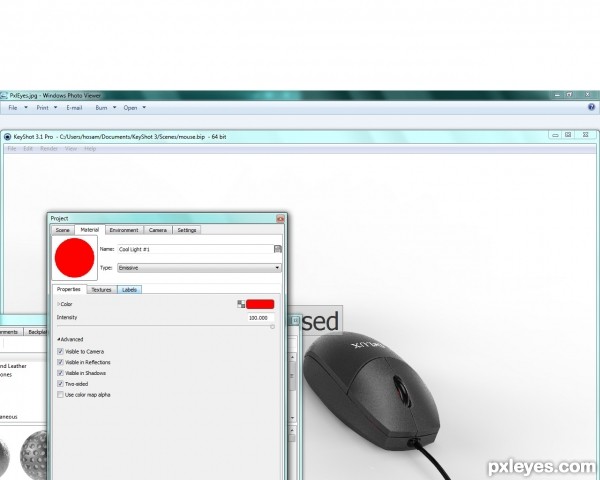

step 11 of 13
this is the material for light inside the mouse

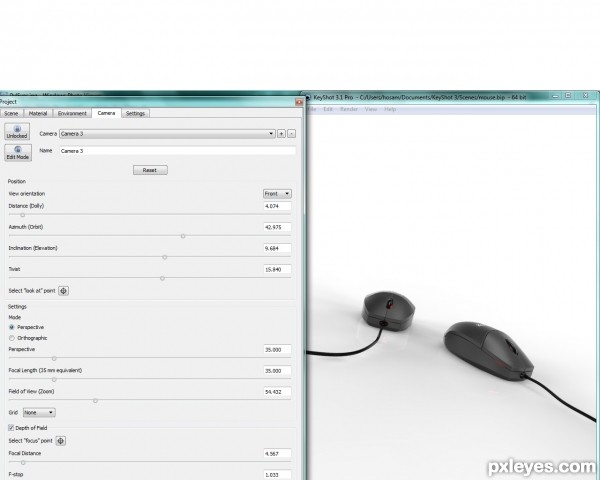

step 12 of 13
this is the setting of the camera
step 13 of 13

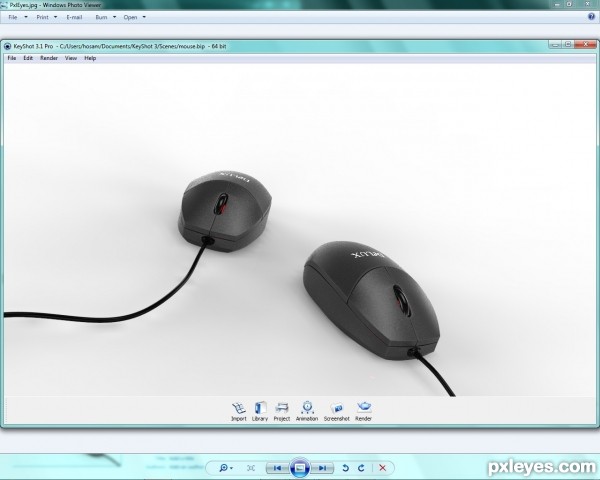

this is the image for both mouses
Final result
