A Work in Progress: The simple faucet



This guide was made for entry:
The simple faucet
In Contest:
faucet or tap


step 1 of 7

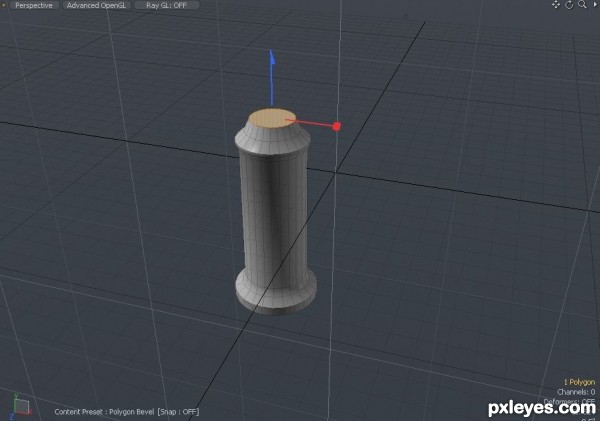

Started with a simple cylinder, used bevel tool to shape faucet.

Creation of The simple faucet: Step 1

step 2 of 7

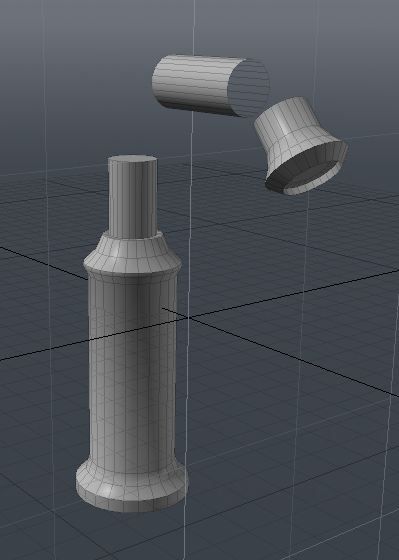

Created cylinder off of base. Copied and rotated to mimic faucet design

Creation of The simple faucet: Step 2

step 3 of 7

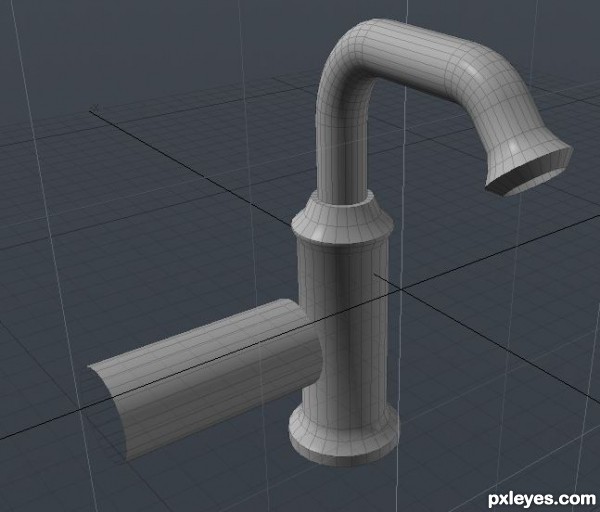

Bridged all cylinders, copied main body cylinder and rotated (for handle)

Creation of The simple faucet: Step 3

step 4 of 7

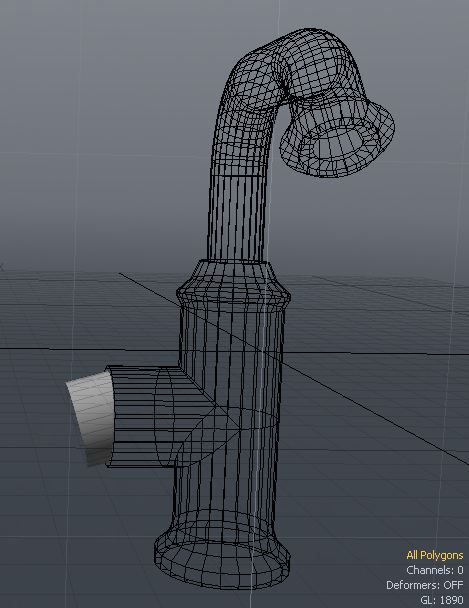

Continued to model handle.

Creation of The simple faucet: Step 4

step 5 of 7

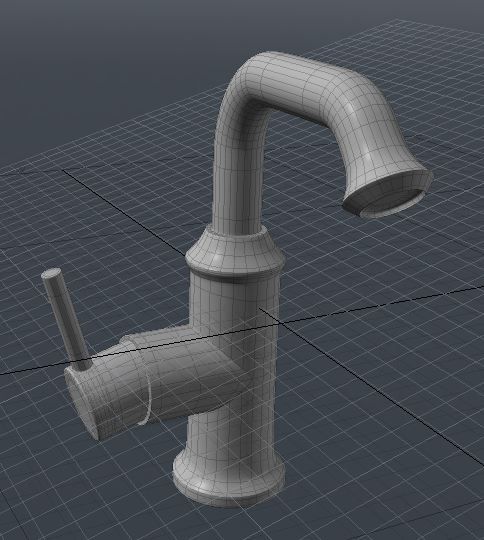

Nearly finished model. The entire faucet is one mesh, not just a bunch of cylinders sticking through each other. I pride myself in modeling like this.

Creation of The simple faucet: Step 5

step 6 of 7

Modeled sink, water, and created a back plane for wall.

Creation of The simple faucet: Step 6

step 7 of 7

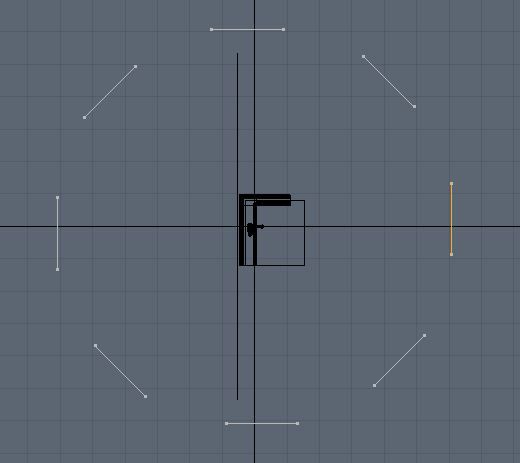

The circular panels around the model are light panels that I created for the black and white vertical lines that can be observed in the chrome. I ended up deleting all but 2 panels.

Creation of The simple faucet: Step 7

Final result

Creation of The simple faucet: Final Result
