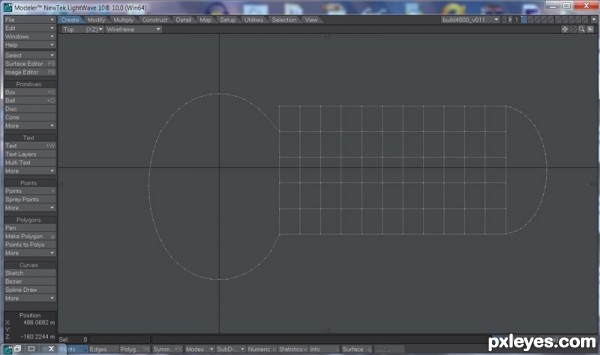

Created top profile of building.

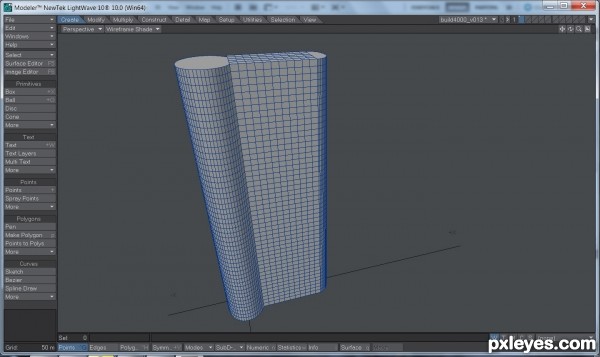

Creation of Mnoavo, Inc. High Rise Office Buildings: Step 1

step 2 of 15

Creation of Mnoavo, Inc. High Rise Office Buildings: Step 2

step 3 of 15

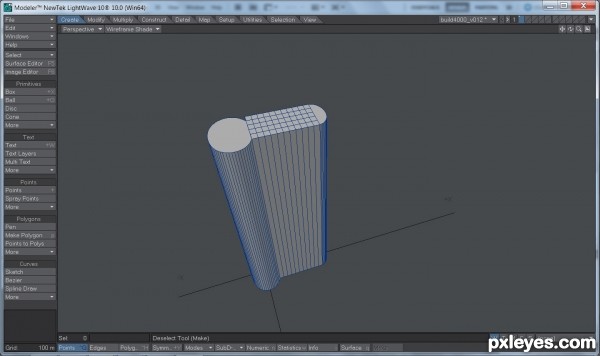

Extruded

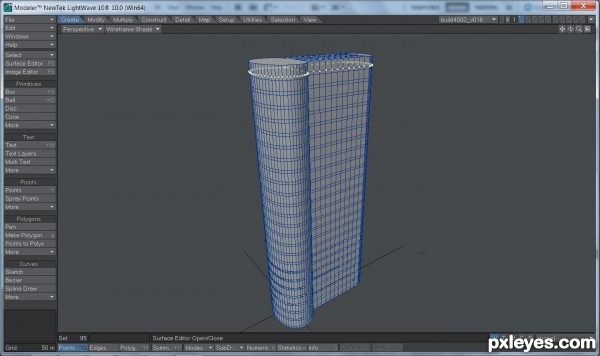

Creation of Mnoavo, Inc. High Rise Office Buildings: Step 3

step 4 of 15

Separated floors by adding geometry with knife tool.

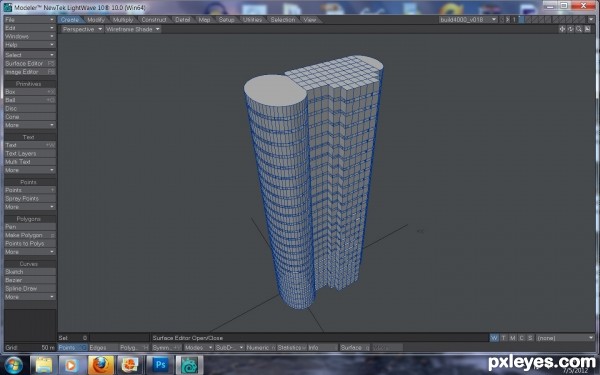

Creation of Mnoavo, Inc. High Rise Office Buildings: Step 4

step 5 of 15

Selected and moved points to increase height of windows on all floors.

Creation of Mnoavo, Inc. High Rise Office Buildings: Step 5

step 6 of 15

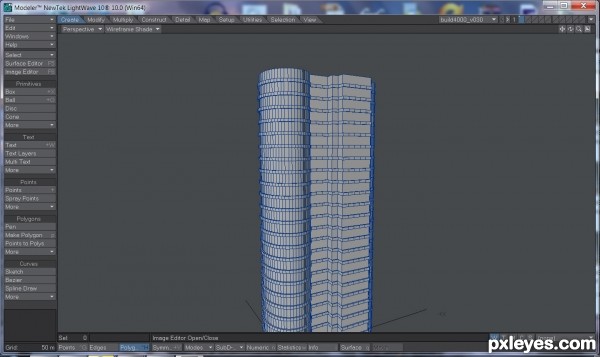

Used smooth shift and move tool to add new geometry and alter shape of the front of the building.

Creation of Mnoavo, Inc. High Rise Office Buildings: Step 6

step 7 of 15

Stretched floors to make them stick out from the rest of the building/windows.

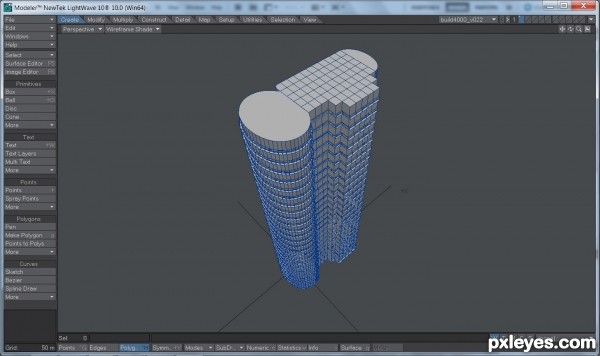

Creation of Mnoavo, Inc. High Rise Office Buildings: Step 7

step 8 of 15

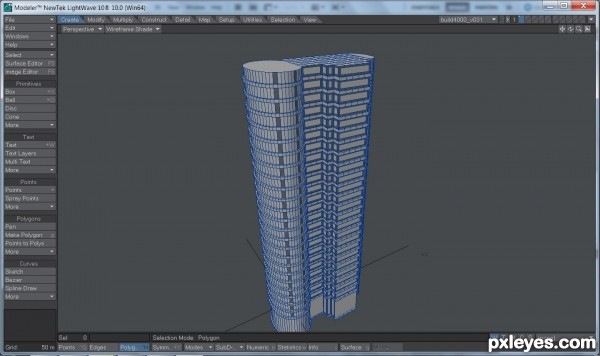

Merged polygons at the front of the building that will become windows later.

Creation of Mnoavo, Inc. High Rise Office Buildings: Step 8

step 9 of 15

Increased the height of the bottom floor which will become the entrance.

Creation of Mnoavo, Inc. High Rise Office Buildings: Step 9

step 10 of 15

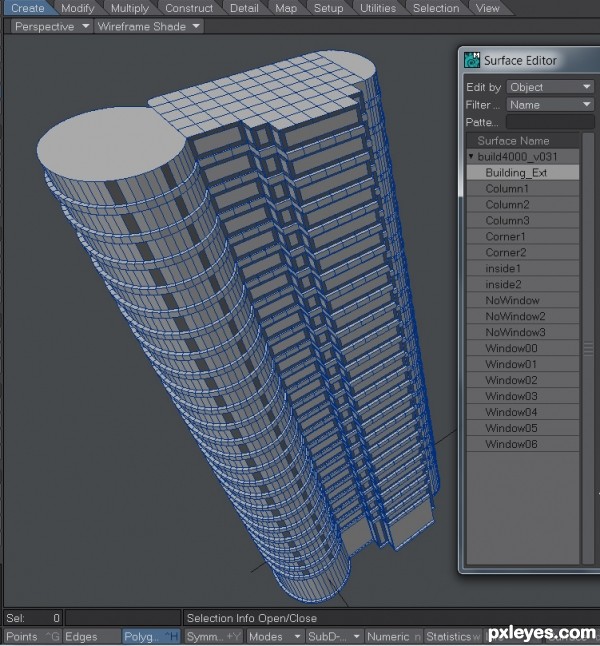

Gave surface names to polygons to be used later when the model is imported into Vue.

Creation of Mnoavo, Inc. High Rise Office Buildings: Step 10

step 11 of 15

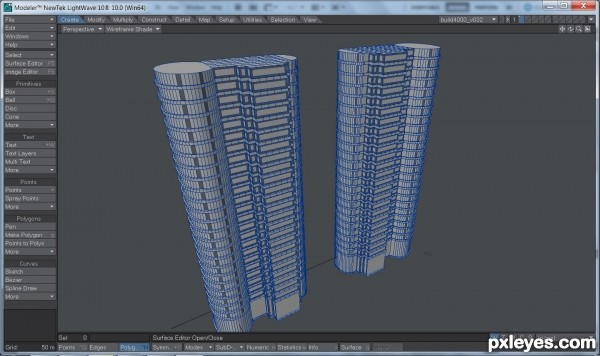

Duplicated the building with the mirror tool.

Creation of Mnoavo, Inc. High Rise Office Buildings: Step 11

step 12 of 15

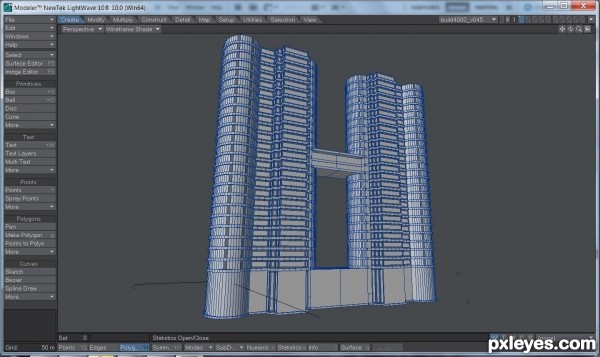

Connected the two structures at the middle and bottom.

Creation of Mnoavo, Inc. High Rise Office Buildings: Step 12

step 13 of 15

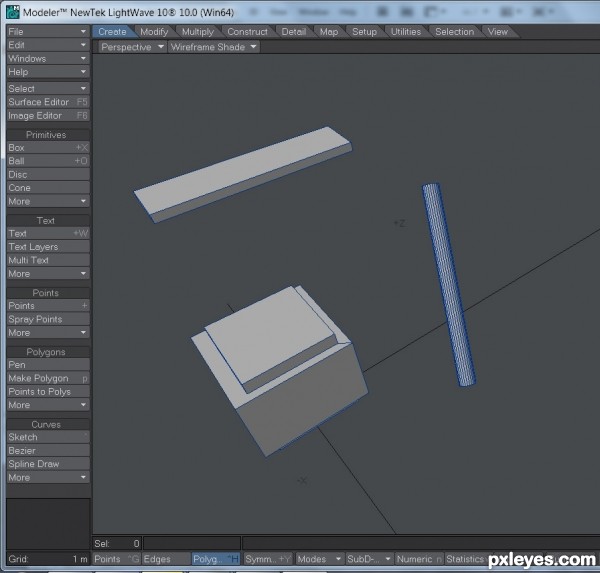

Modeled additional items to be used for the front door, external lighting, flag pole and/or warning light and/or antenna, etc.

Creation of Mnoavo, Inc. High Rise Office Buildings: Step 13

step 14 of 15

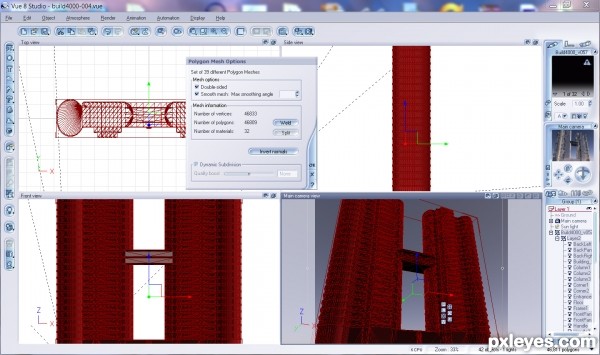

Imported model into Vue, split the model into the individual surface names and applied or deselected smoothing where necessary.

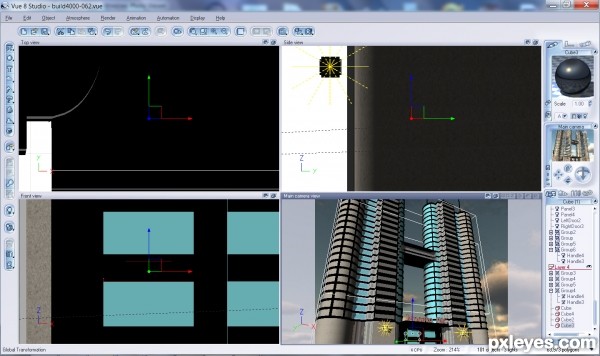

Creation of Mnoavo, Inc. High Rise Office Buildings: Step 14

step 15 of 15

With Vue, I positioned the camera, applied surfaces, added clouds, put additional modeled items into place, added extruded text over the entrance (used a random letter generator to produce the name Mnoavo), added 2 point lights and rendered the final image.

Creation of Mnoavo, Inc. High Rise Office Buildings: Step 15
