A Work in Progress: Cozy and Elegant Living Room



This guide was made for entry:
Cozy and Elegant Living Room
In Contest:
living room


step 1 of 26

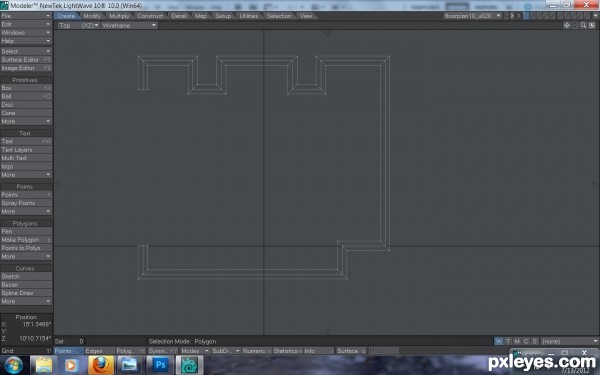

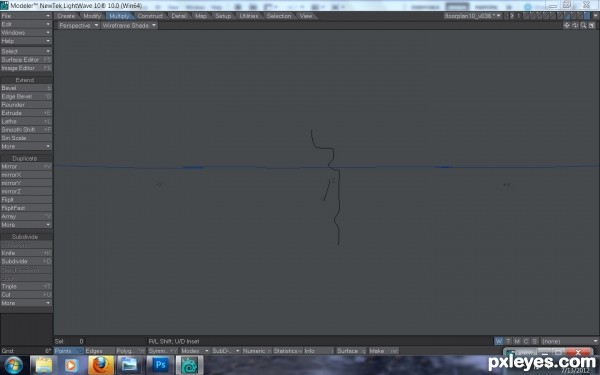

I laid down the points of the floor plan, then connected the points by creating two point polygons.

Creation of Cozy and Elegant Living Room: Step 1

step 2 of 26

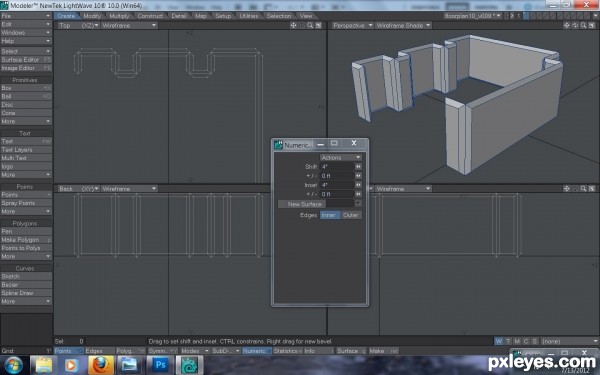

I extruded the floor plan, then beveled it.

Creation of Cozy and Elegant Living Room: Step 2

step 3 of 26

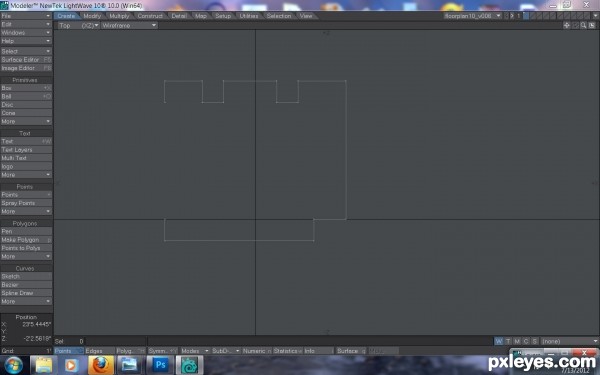

I selected the points at the top, then deleted them.

Creation of Cozy and Elegant Living Room: Step 3

step 4 of 26

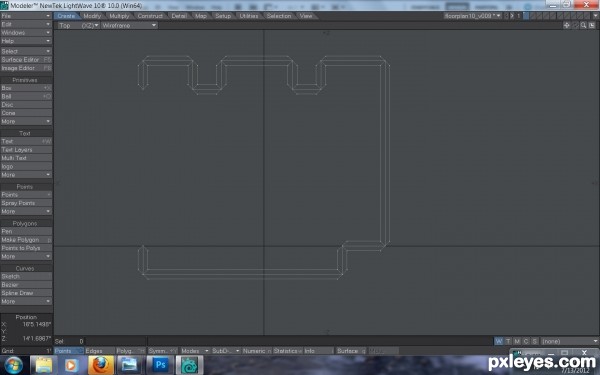

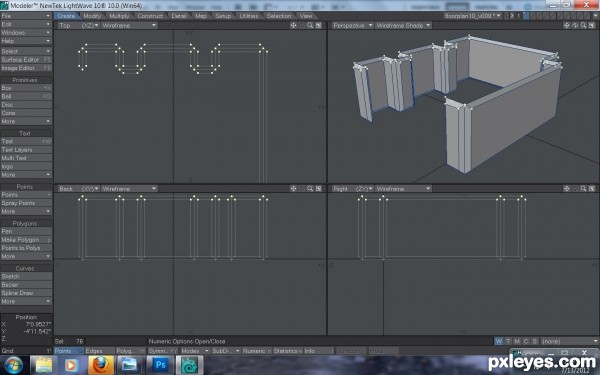

Here is the top view of the floor plan so far. Beveling the floor plan gave the walls thickness.

Creation of Cozy and Elegant Living Room: Step 4

step 5 of 26

I moved and merged various points to straighten out the walls.

Creation of Cozy and Elegant Living Room: Step 5

step 6 of 26

Here is the perspective view of the floor plan.

Creation of Cozy and Elegant Living Room: Step 6

step 7 of 26

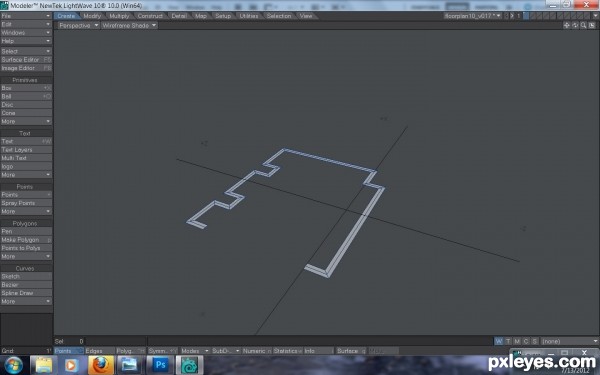

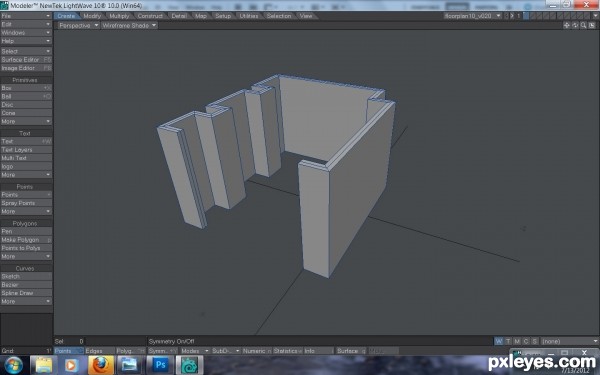

I extruded the floor plan.

Creation of Cozy and Elegant Living Room: Step 7

step 8 of 26

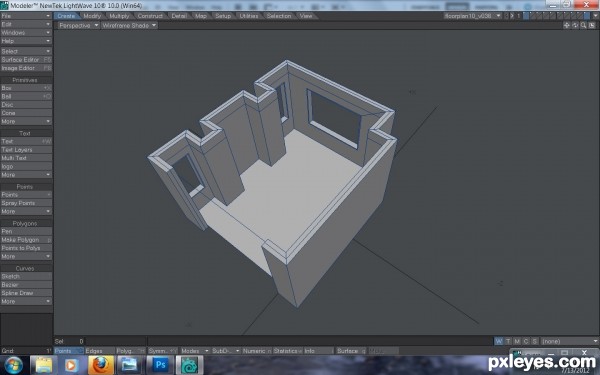

I performed boolean operations to create windows, and I made the floor and ceiling from existing points.

Creation of Cozy and Elegant Living Room: Step 8

step 9 of 26

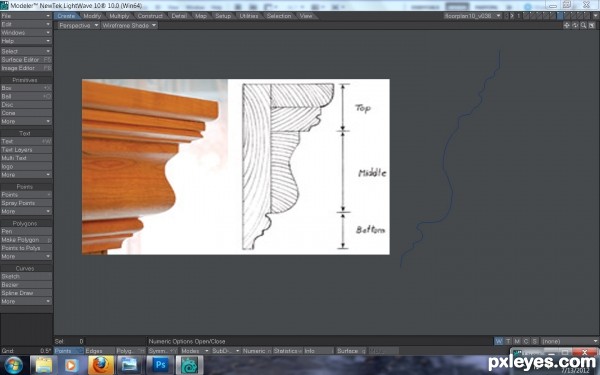

I used a reference image to sketch the profile for the cornice molding.

Creation of Cozy and Elegant Living Room: Step 9
sources used for this step:

step 10 of 26

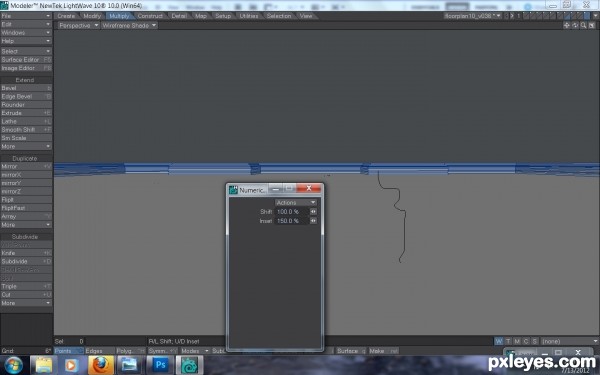

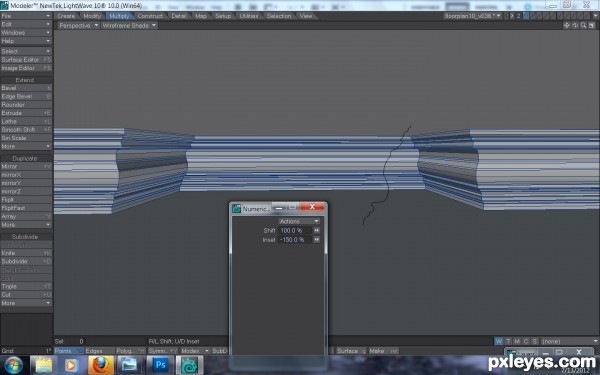

With the ceiling and cornice profile in separate layers, I performed a rail bevel operation to create the cornice molding.

Creation of Cozy and Elegant Living Room: Step 10

step 11 of 26

I created the profile of the baseboard without the aid of a reference image.

Creation of Cozy and Elegant Living Room: Step 11

step 12 of 26

With the floor and baseboard profile sketch in separate layers, I performed a rail bevel operation to create the baseboard.

Creation of Cozy and Elegant Living Room: Step 12

step 13 of 26

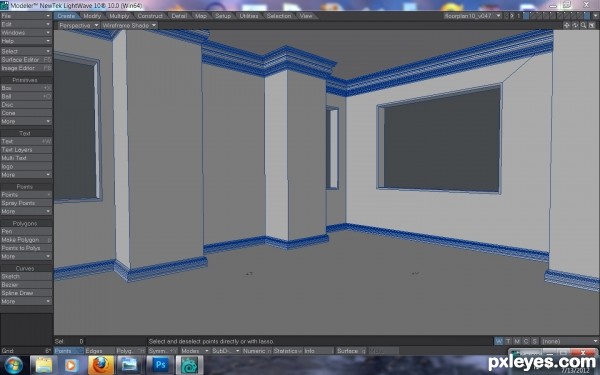

Perspective view of walls, floor, ceiling, cornice molding and baseboard.

Creation of Cozy and Elegant Living Room: Step 13

step 14 of 26

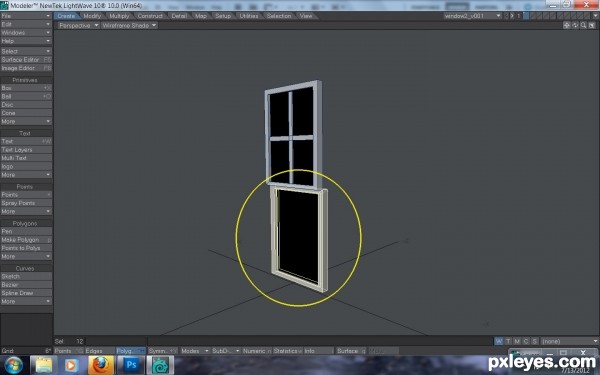

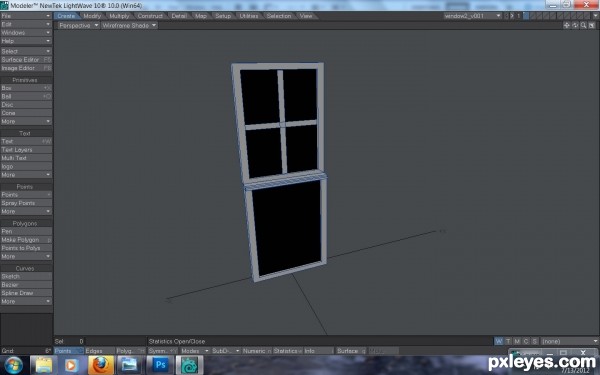

I created a window.

Creation of Cozy and Elegant Living Room: Step 14

step 15 of 26

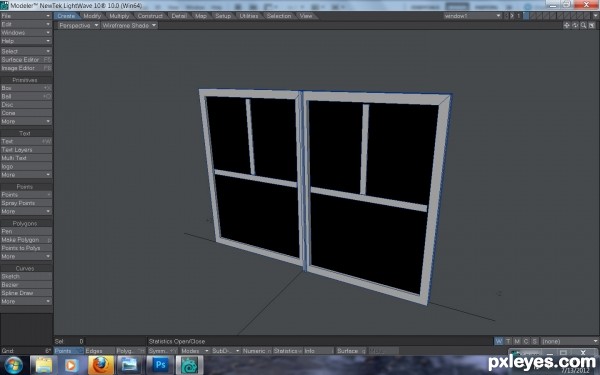

I created a larger window.

Creation of Cozy and Elegant Living Room: Step 15

step 16 of 26

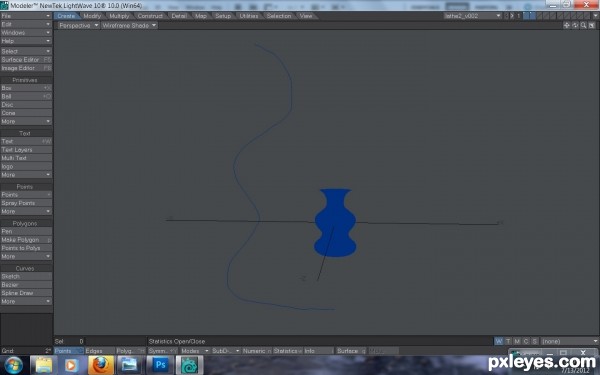

I created a lathe object and its profile without the aid of a reference.

Creation of Cozy and Elegant Living Room: Step 16

step 17 of 26

I used part of one of the windows as a frame and placeholder for the art pieces in the living room. The art itself was created by applying textures from http://www.cgtextures.com.

Creation of Cozy and Elegant Living Room: Step 17
sources used for this step:

step 18 of 26

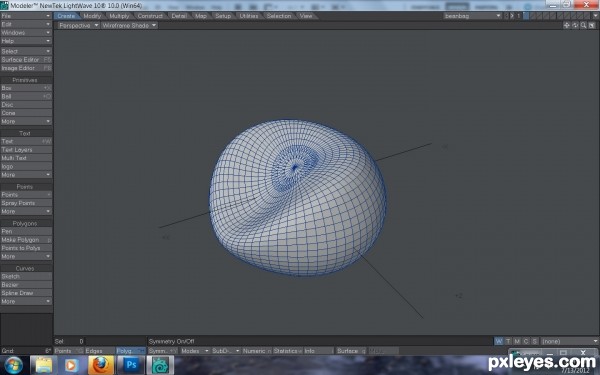

I created a ball and modified it with the magnet tool to create the beanbag chair.

Creation of Cozy and Elegant Living Room: Step 18

step 19 of 26

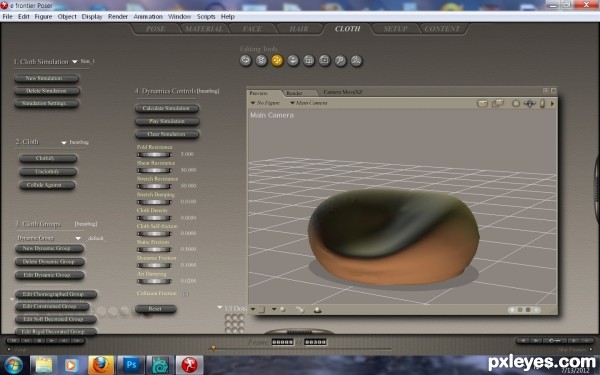

I ran a cloth simulation in Poser to apply the effects of gravity to the beanbag chair.

Creation of Cozy and Elegant Living Room: Step 19

step 20 of 26

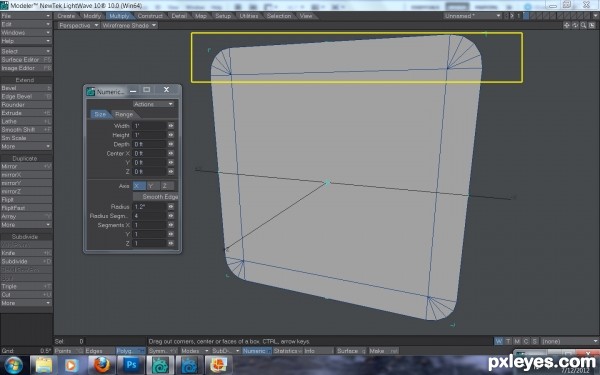

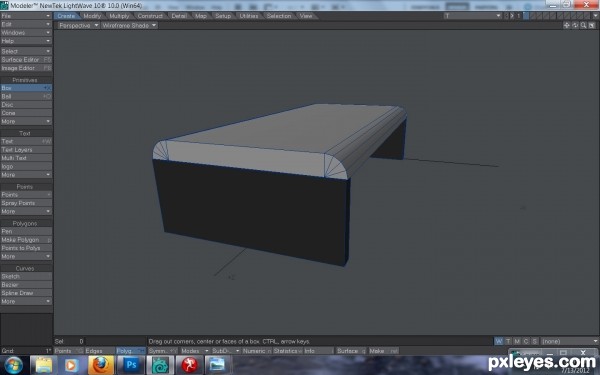

I used the box tool and experimented with the settings to create the top portion of the table.

Creation of Cozy and Elegant Living Room: Step 20

step 21 of 26

Here is the model of the completed table. I used a wood texture from http://www.cgtextures.com to surface the top portion of the table. In this step, I have also included a link to the wood texture I used for the floor (from the same website).

Creation of Cozy and Elegant Living Room: Step 21
sources used for this step:

step 22 of 26

In Layout, I put all of the elements in place and resized items as necessary. Here is the wireframe camera view.

Creation of Cozy and Elegant Living Room: Step 22

step 23 of 26

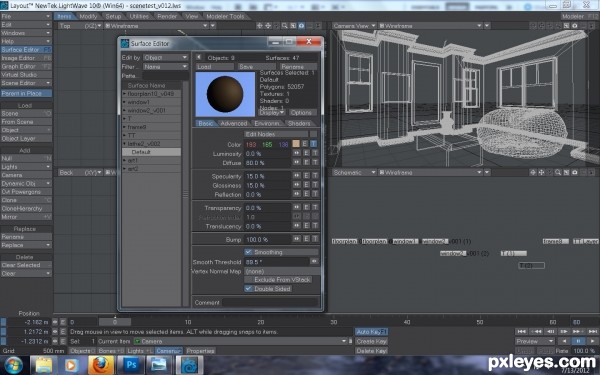

I used the Surface Editor to apply textures.

Creation of Cozy and Elegant Living Room: Step 23

step 24 of 26

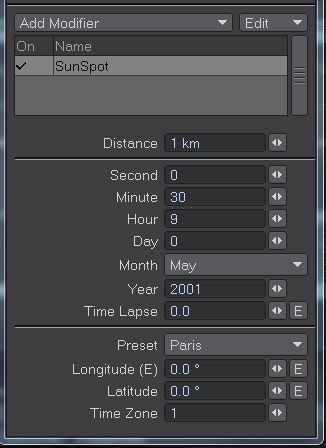

By experimenting with various settings, I put the Sun into place so that it would shine through the large window. The Skylight Plugin by Denis Pontonnier made this task much easier than it would have been otherwise.

Creation of Cozy and Elegant Living Room: Step 24
sources used for this step:

step 25 of 26

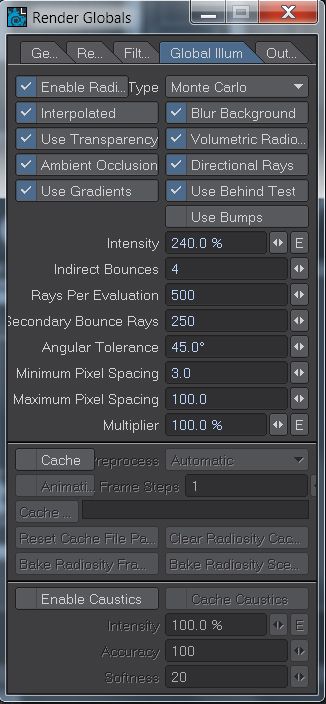

I used radiosity to render the final image.

Creation of Cozy and Elegant Living Room: Step 25

step 26 of 26

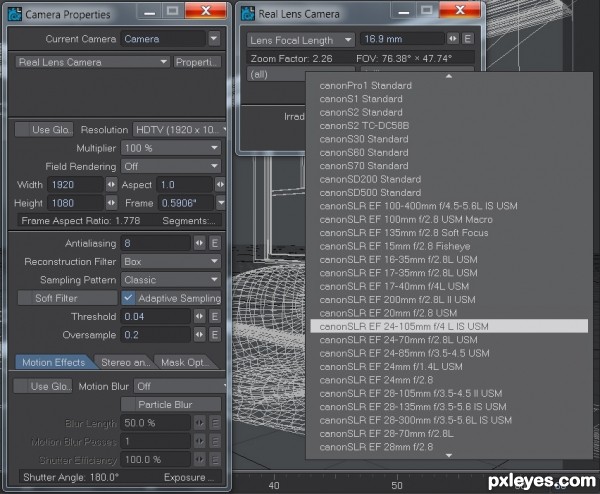

I used the Real Lens Camera setting to render the final image.

Creation of Cozy and Elegant Living Room: Step 26

Final result

Creation of Cozy and Elegant Living Room: Final Result
