A Work in Progress: XP-56 VSTOL



This guide was made for entry:
XP-56 VSTOL
In Contest:
flying machines


step 1 of 10

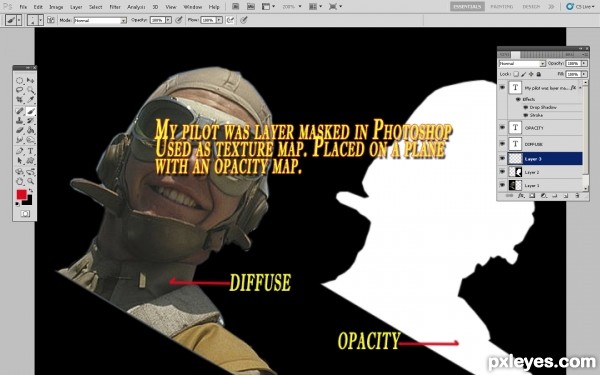

Made an opacity map using CS5. Layer masked the pilot. Used the color for a "diffuse" or color map in 3D Studio Max. The whited out version is the opacity map for Max. ( works like a layer mask in Photoshop)

Creation of XP-56 VSTOL: Step 1
sources used for this step:

step 2 of 10

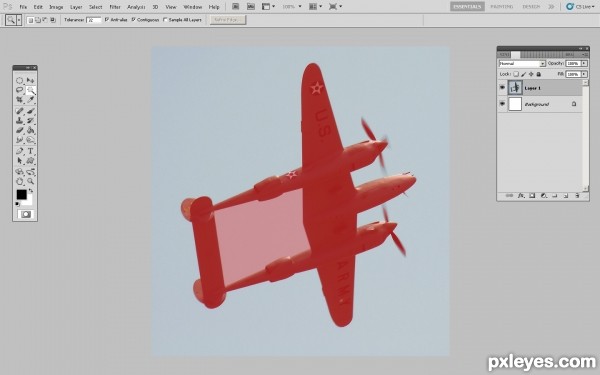

Masking the P-38.

Creation of XP-56 VSTOL: Step 2
sources used for this step:

step 3 of 10

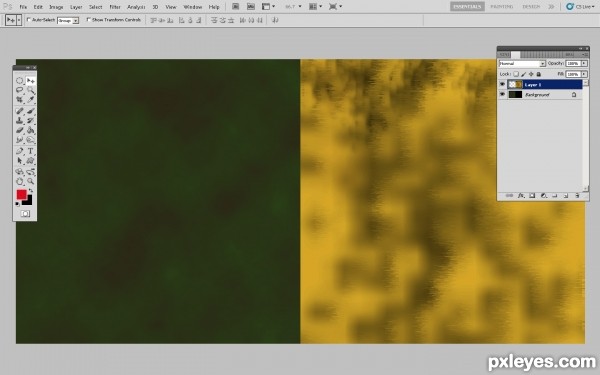

Some textures for my new airchine. Render Cloud filter used.

Creation of XP-56 VSTOL: Step 3

step 4 of 10

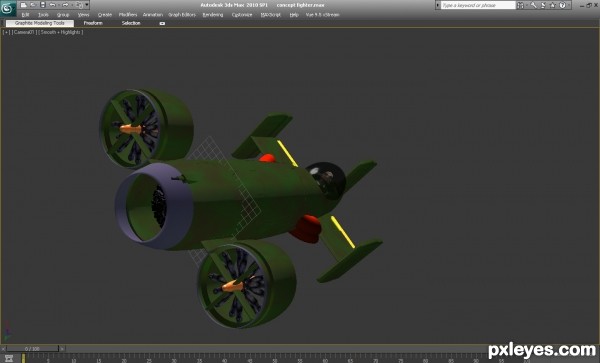

Modeling aircraft using 3D Studio Max.

Creation of XP-56 VSTOL: Step 4

step 5 of 10

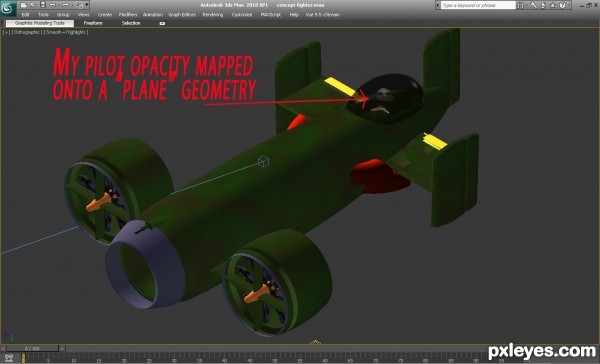

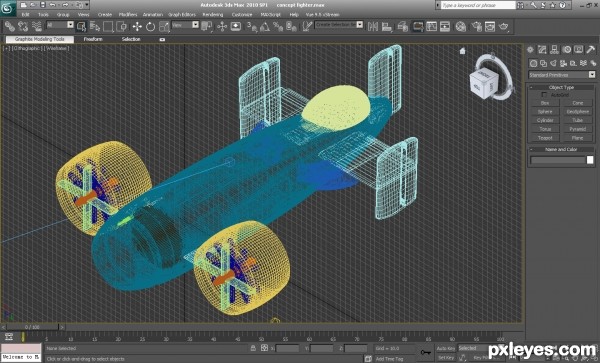

The parts consist of cylinders, boxes and capsule geometries. Adjustments to poly's, vertices and edges were used to refine some detail.

Creation of XP-56 VSTOL: Step 5

step 6 of 10

My model with textures (created in Photoshop) added

Creation of XP-56 VSTOL: Step 6

step 7 of 10

Model positioned and the scenes lighting set to mimic the light of my background image.

Creation of XP-56 VSTOL: Step 7

step 8 of 10

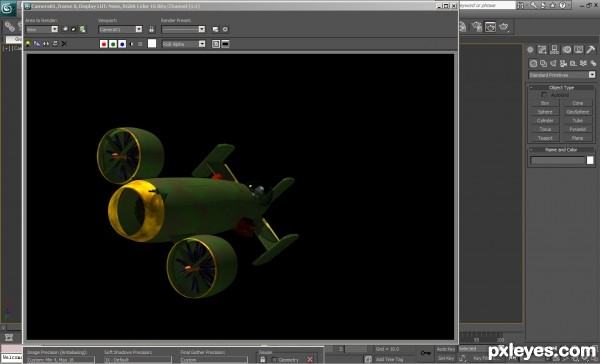

Model is rendered.

Creation of XP-56 VSTOL: Step 8

step 9 of 10

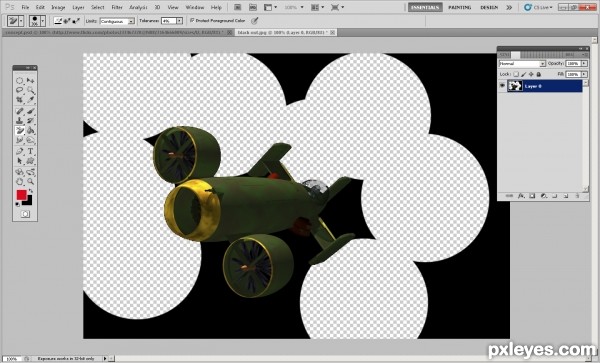

In Photoshop I used the background eraser tool to extract the model.

Creation of XP-56 VSTOL: Step 9

step 10 of 10

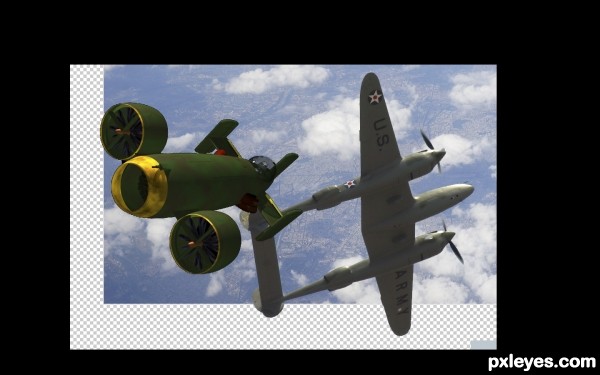

The final scene composition made using Photoshop. Tweaks to shadow/highlight, levels and selective color done.

Creation of XP-56 VSTOL: Step 10

Final result

Creation of XP-56 VSTOL: Final Result
