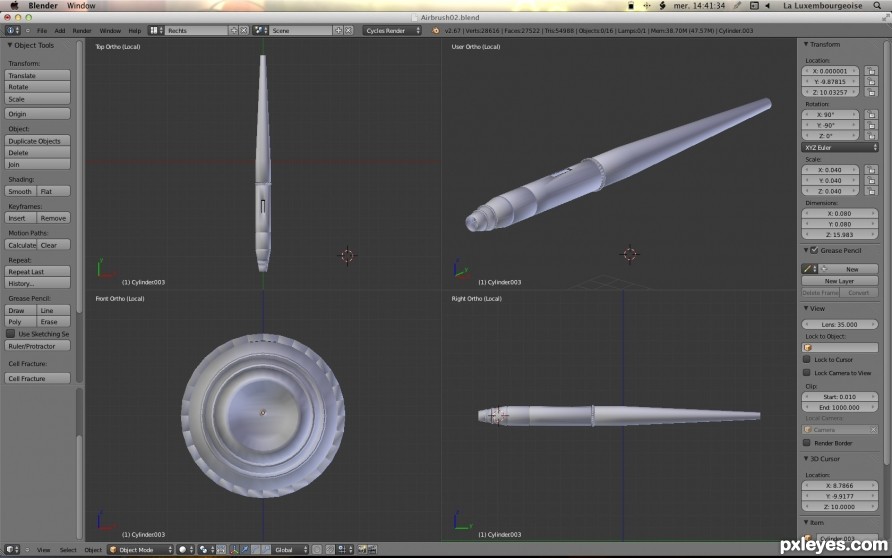

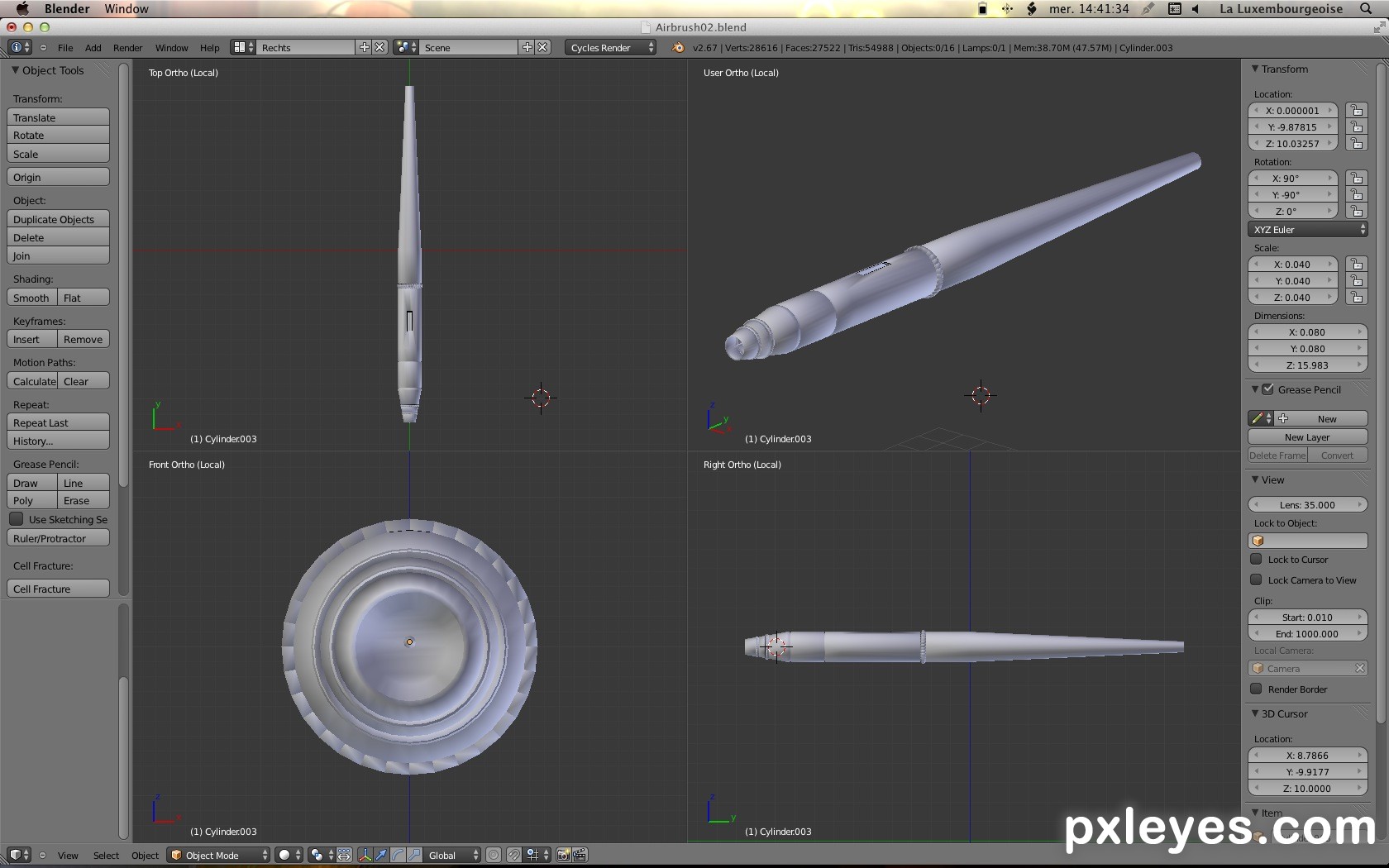

Start with a Circle which you extrude to get the shape of your airbrush.
step 1 of 6
step 2 of 6

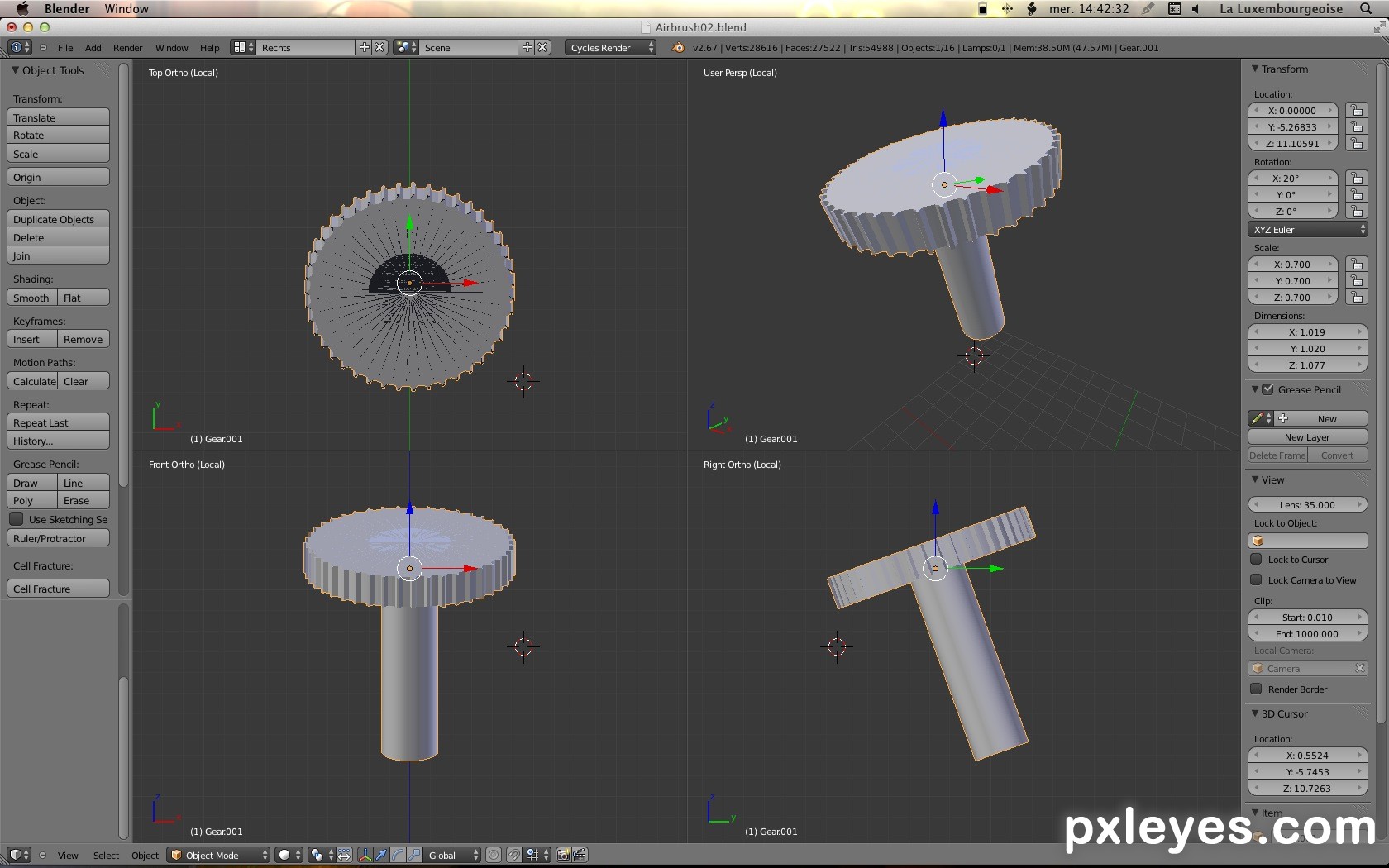

The air input trigger is made with an Gear-object, which can be found under Add/Mesh/Extra Object/Gears/
If you can't see this, turn the objects on in the User Settings under "Addons".
If you can't see this, turn the objects on in the User Settings under "Addons".
step 3 of 6

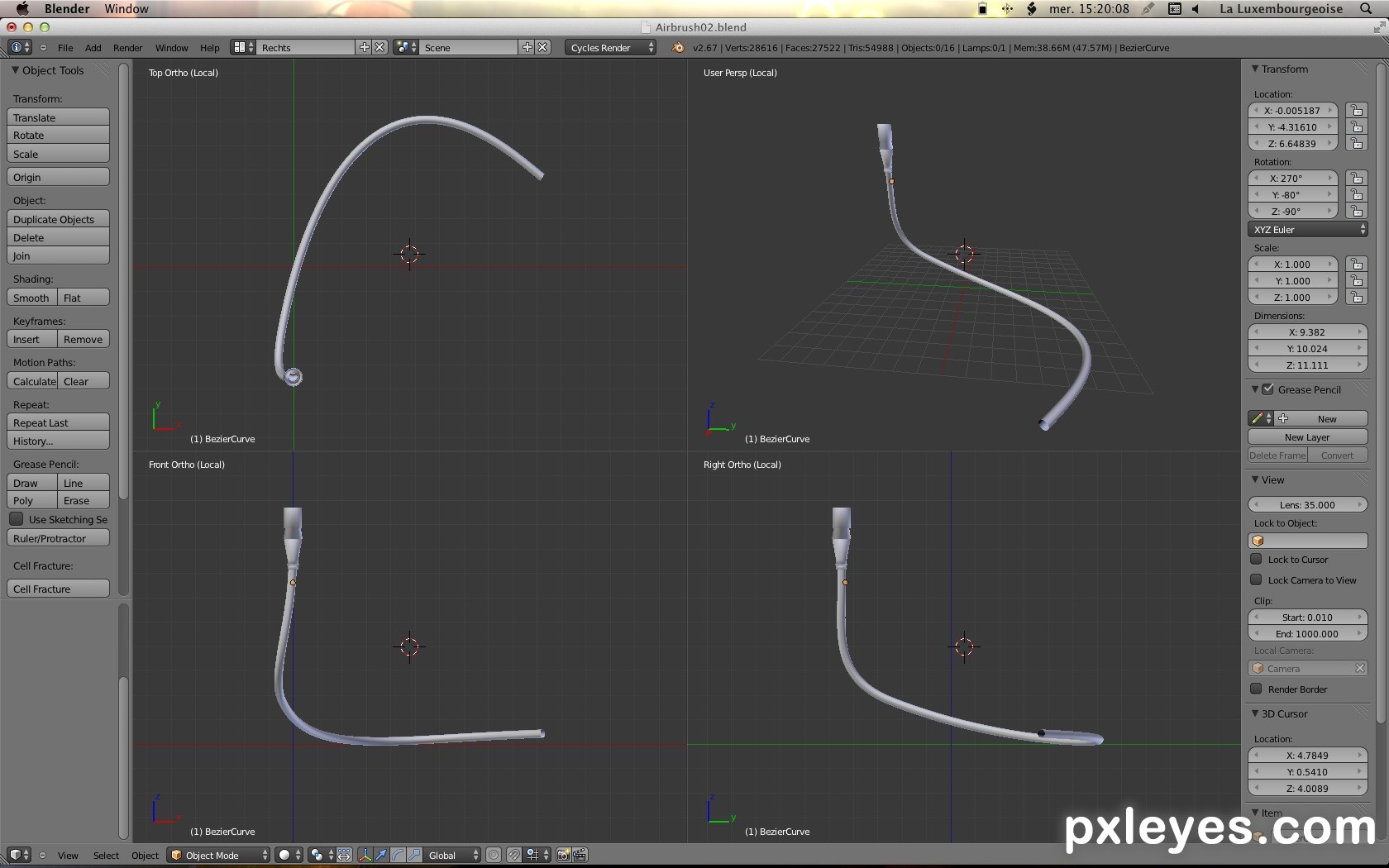

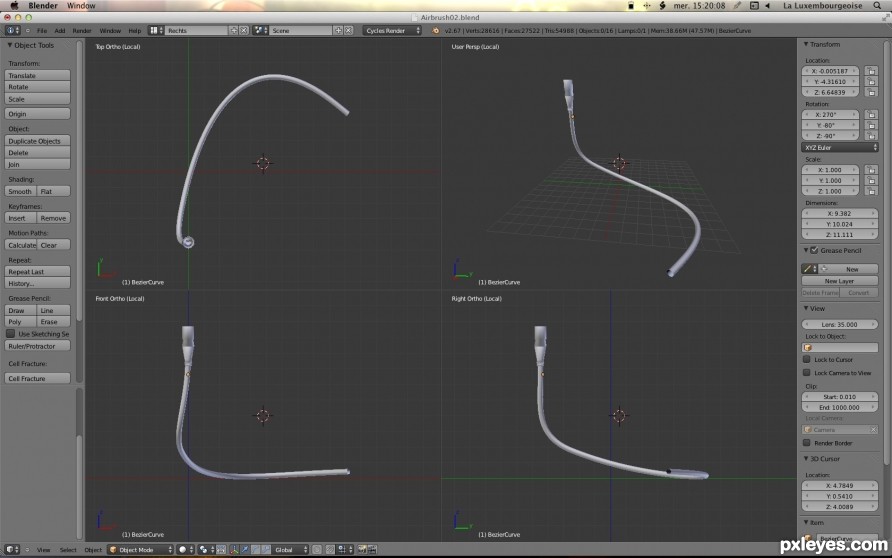

The air input tube is made of a circle again (to do the metal part) and a BezierCurve with an BezierCircle applied as Bevel object.
step 4 of 6

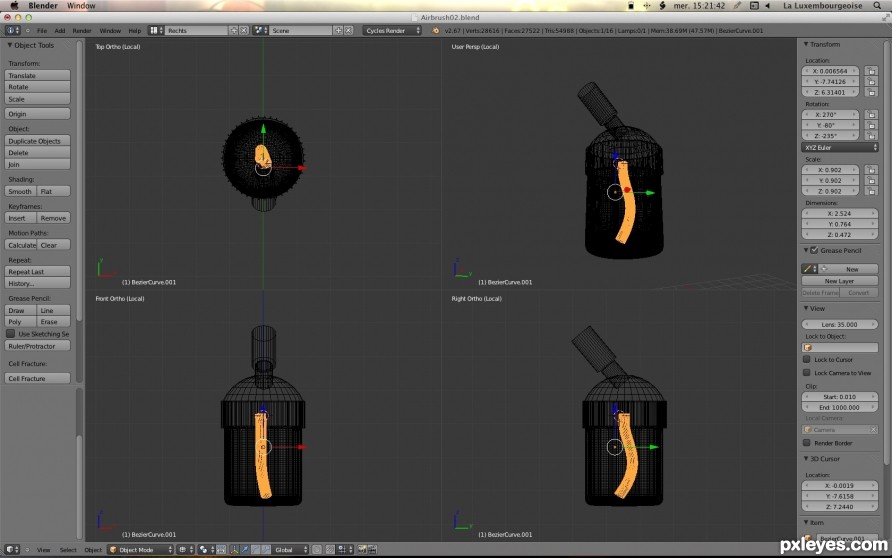

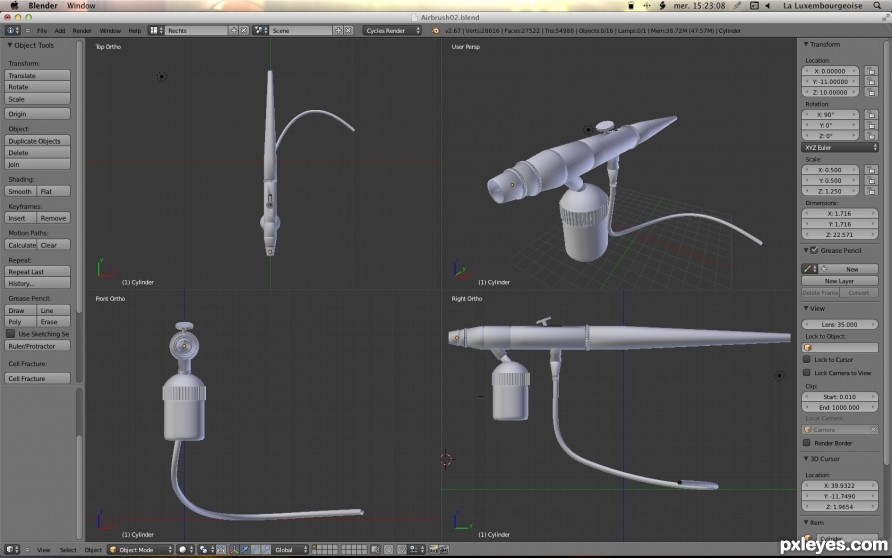

The paint container use the same method for the metal part (upper tank part). The tube inside is again a BezierCurve with an BezierCircle. The Glass Tank is a cube with subdivision-modifier, a few Loop Cut and Slides to give it a rounded shape.
step 5 of 6
step 6 of 6

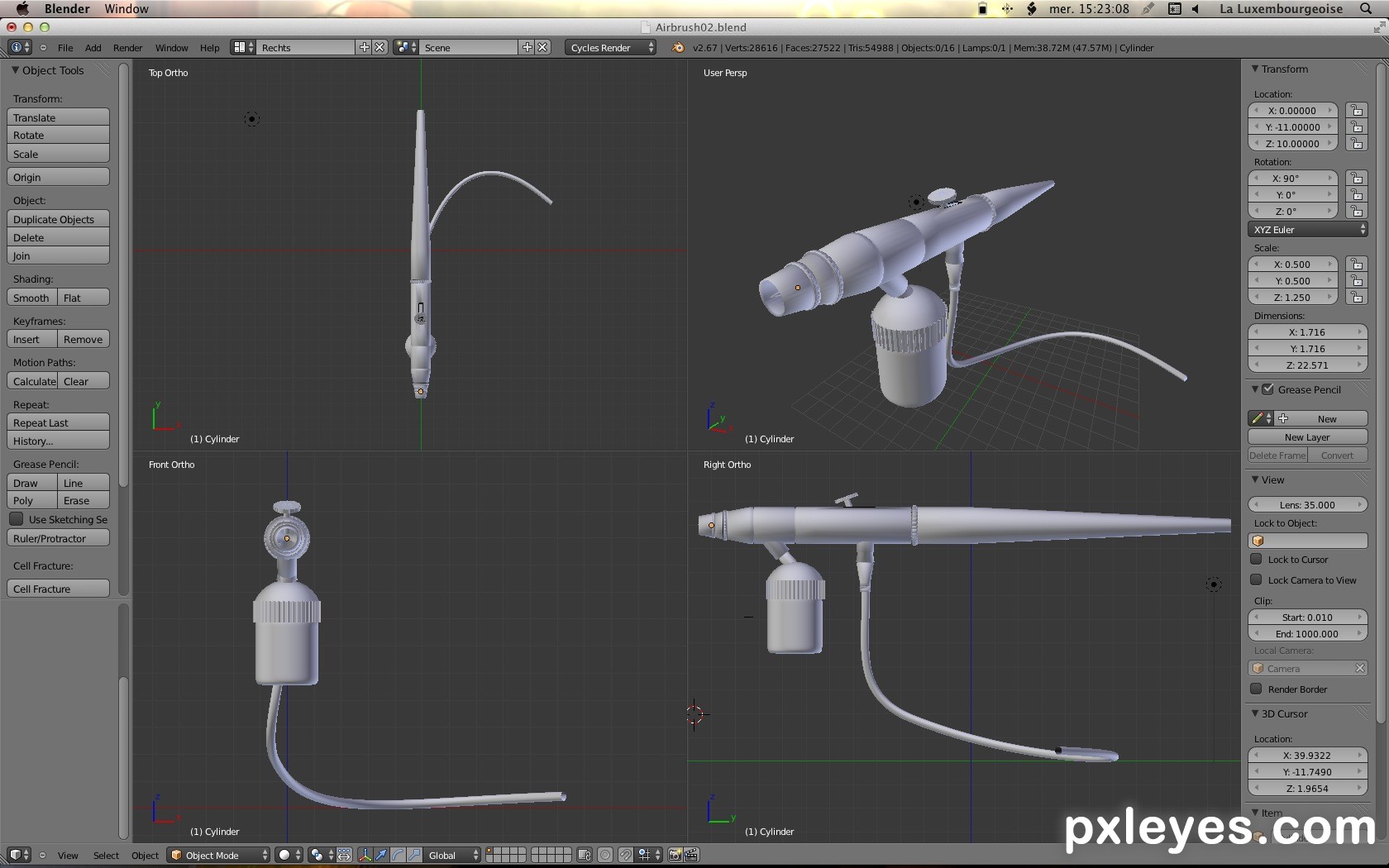

All you have to do now is to set op the background and the lights and so on...

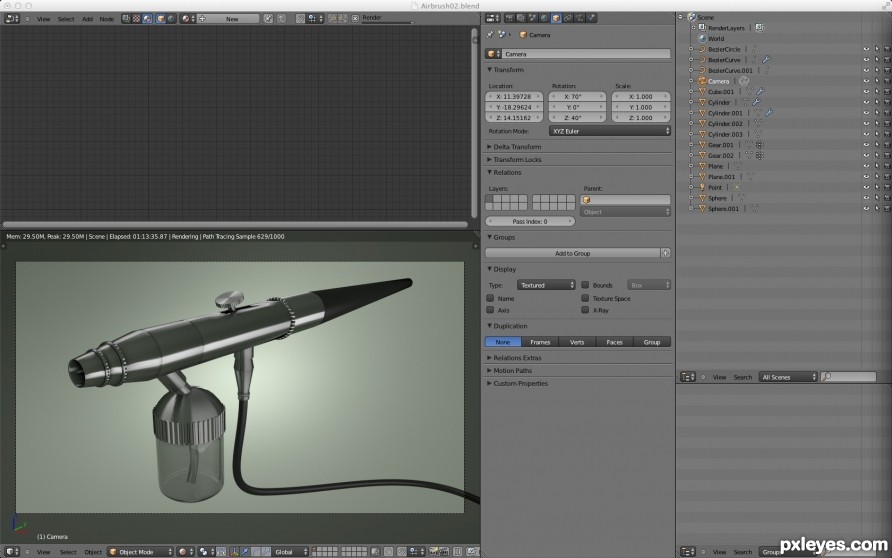

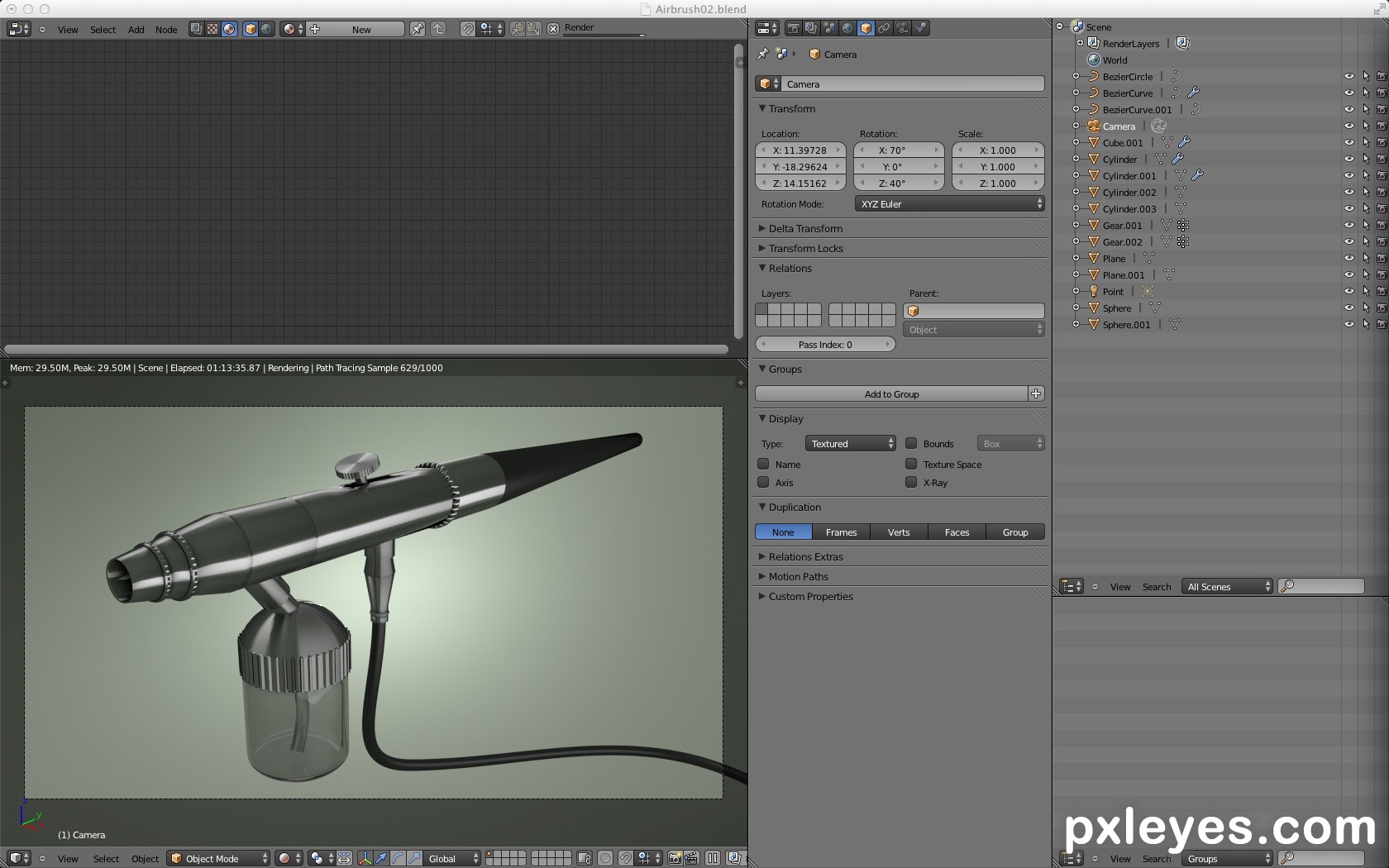

Here's what it looked like in my preview window. I used 2 planes as a light source (set planes material to "Emitting"), a sphere as environment. I choose a light green color.
Finally, render the scene in "Cycles render" mode.
Here's what it looked like in my preview window. I used 2 planes as a light source (set planes material to "Emitting"), a sphere as environment. I choose a light green color.
Finally, render the scene in "Cycles render" mode.
Final result
